Front Bumper Assembly

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Front Bumper Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43-17D957-CA Bumper Cover Assy, Front PDC $7,426.81 To Order
Photo Part No Description Price (each) Stock
4G43-17C832-BA Front Bumper Tow Eye Cover $52.96 To Order
Photo Part No Description Price (each) Stock
4G43-17C832-CB Cover Front Bumper Cap Assy Rear $18.35 IN STOCK
Photo Part No Description Price (each) Stock
CG43-17626-AB FRONT LOWER SPOILER $1,006.50 IN STOCK
Photo Part No Description Price (each) Stock
CG43-8156-AC Mesh, Lower Front Grille, Black $539.00 To Order
Photo Part No Description Price (each) Stock
CG43-17E811-AA Blanking Panel, Lower Mesh LH $40.15 To Order
Photo Part No Description Price (each) Stock
CG43-17E810-AA Blanking Panel, Lower Mesh RH $40.15 To Order
Photo Part No Description Price (each) Stock
703152-PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.12 IN STOCK
Photo Part No Description Price (each) Stock
7G43-10609E-AA-PK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $9.74 IN STOCK
Photo Part No Description Price (each) Stock
6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) $20.53 To Order
Photo Part No Description Price (each) Stock
CG43-504691-AA Screw ST 4.5X25 Washer - 6 Lobe $9.30 IN STOCK
Photo Part No Description Price (each) Stock
4G43-17F773-AB-PK Retainer Grille to Front Bumper (Pack of 10) $3.83 IN STOCK
Photo Part No Description Price (each) Stock
4G43-8191-AA-PK Clip Bumper Grille (Pack Of 10) $15.21 IN STOCK
Photo Part No Description Price (each) Stock
702520-PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) $17.93 IN STOCK

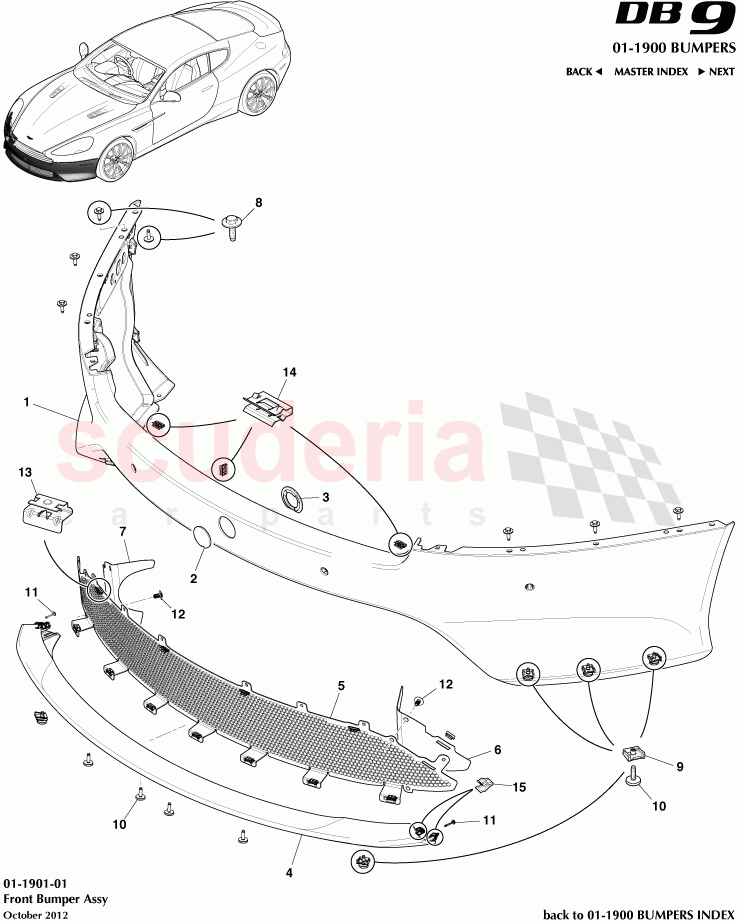

Front Bumper Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG43-17D957-DA
Bumper Cover Assy, Front PDC
Federal 		$7,426.81 1
TO
- DG43-17D957-AA
Bumper Cover Assy, Front
ROW 		$2,742.37 1
TO
- DG43-17D957-BA
Bumper Cover Assy, Front
Federal 		$2,742.37 1
TO
- DG43-17626-BA
Spoiler, Front Lower
Carbon Fibre 		$5,197.86 1
TO
- CG43-8156-BD
MESH LWR FRT GRILLE 		$624.57 1
TO
- CG43-8156-CA
Mesh, Lower Front Grille, Magnum Silver
14.5MY 		$982.85 1
TO
1 DG43-17D957-CA
Bumper Cover Assy, Front PDC
ROW 		$7,426.81 1
TO
2 4G43-17C832-BA
Front Bumper Tow Eye Cover
Federal 		$52.96 1
TO
3 4G43-17C832-CB
Cover Front Bumper Cap Assy Rear
Federal
IN STOCK 		$18.35 1
IN
4 CG43-17626-AB
FRONT LOWER SPOILER
Graphite
IN STOCK 		$1,006.50 1
IN
5 CG43-8156-AC
Mesh, Lower Front Grille, Black 		$539.00 1
TO
6 CG43-17E811-AA
Blanking Panel, Lower Mesh LH 		$40.15 1
TO
7 CG43-17E810-AA
Blanking Panel, Lower Mesh RH 		$40.15 1
TO
8 703152-PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
IN STOCK 		$5.12 8
IN
9 7G43-10609E-AA-PK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
10 Per Pack
IN STOCK 		$9.74 8
IN
10 6G33-FA0115-AB-PK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		$20.53 8
TO
11 CG43-504691-AA
Screw ST 4.5X25 Washer - 6 Lobe
IN STOCK 		$9.30 2
IN
13 4G43-17F773-AB-PK
Retainer Grille to Front Bumper (Pack of 10)
10 Per Pack
IN STOCK 		$3.83 13
IN
14 4G43-8191-AA-PK
Clip Bumper Grille (Pack Of 10)
10 Per Pack
IN STOCK 		$15.21 2
IN
15 702520-PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
IN STOCK 		$17.93 4
IN
