Name: Bonnet and Hinges
Rating: 4.8 (1 reviews)

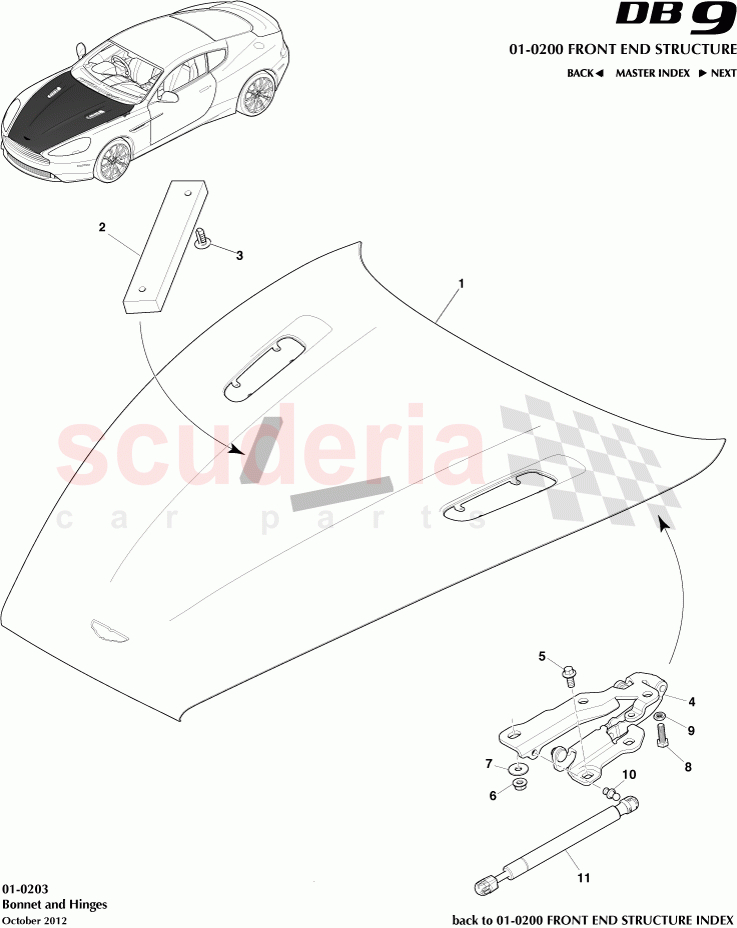

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

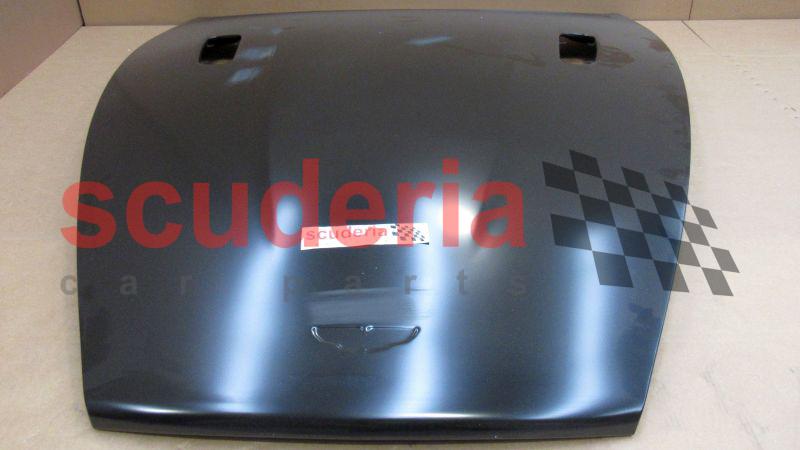

	DG43-16612-AG	BOOT LID	$6,088.53	To Order

Photo	Part No	Description	Price (each)	Stock

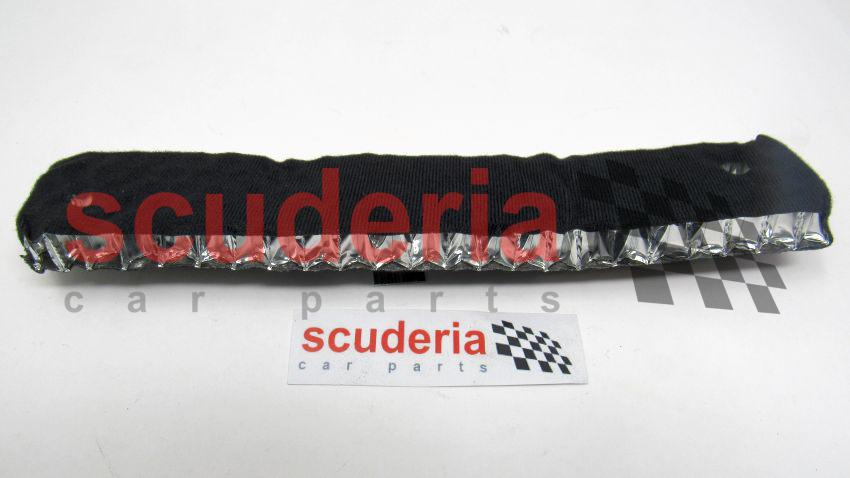

	DG43-16A672-AC	Absorber, Hood Upper Energy	$31.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701432	PIN 5.7x15.7 PUSH IN NYL-FIR TREE	$0.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG43-16801-AA	Hood Hinge, Assembly, LH	$155.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	$0.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG43-32692-BA	M8X25 STEEL WASHER	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43-16D640-AA	Screw, M8 x 25	$39.69	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43-N801117-AA	Locknut, M8 Left Hand Thread	$0.56	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-640101-AA	Ball Stud	$5.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DG43-16C826-AC	Gas Spring Assembly	$35.67	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	DG43-16800-AA	Hood Hinge, Assembly, RH IN STOCK	DG43-16800-AA Hood Hinge, Assembly, RH IN STOCK	$155.82	1	IN
1	DG43-16612-AG	BOOT LID	DG43-16612-AG BOOT LID	$6,088.53	1	TO
2	DG43-16A672-AC	Absorber, Hood Upper Energy IN STOCK	DG43-16A672-AC Absorber, Hood Upper Energy IN STOCK	$31.71	2	IN
3	701432	PIN 5.7x15.7 PUSH IN NYL-FIR TREE IN STOCK	701432 PIN 5.7x15.7 PUSH IN NYL-FIR TREE IN STOCK	$0.37	4	IN
4	DG43-16801-AA	Hood Hinge, Assembly, LH IN STOCK	DG43-16801-AA Hood Hinge, Assembly, LH IN STOCK	$155.82	1	IN
5	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	$0.27	4	IN
6	703161	Nut Hex M8 Flanged IN STOCK	703161 Nut Hex M8 Flanged IN STOCK	$0.91	4	IN
7	AG43-32692-BA	M8X25 STEEL WASHER	AG43-32692-BA M8X25 STEEL WASHER	$1.42	4	TO
8	DG43-16D640-AA	Screw, M8 x 25	DG43-16D640-AA Screw, M8 x 25	$39.69	2	TO
9	DG43-N801117-AA	Locknut, M8 Left Hand Thread	DG43-N801117-AA Locknut, M8 Left Hand Thread	$0.56	2	TO
10	1R12-640101-AA	Ball Stud IN STOCK	1R12-640101-AA Ball Stud IN STOCK	$5.62	2	IN
11	DG43-16C826-AC	Gas Spring Assembly	DG43-16C826-AC Gas Spring Assembly	$35.67	2	TO

Bonnet And Hinges

Aston Martin DB9 (2013-2016)
