Grille Opening Panel

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43-8136-BC CENTRAL RADIATOR GRILLE $1,007.62 To Order
Photo Part No Description Price (each) Stock
CG43-403D62-AA Seal, Upper Panel, Air Vent $3.14 To Order
Photo Part No Description Price (each) Stock
DG43-F01990-AC Panel, Air Vent, RH $860.46 To Order
Photo Part No Description Price (each) Stock
FD43-F01991-AB PNL VEN AIR LH $860.46 To Order
Photo Part No Description Price (each) Stock
4G43-L41041-AA Edge Strip, Black 2 x 40 $10.74 IN STOCK
Photo Part No Description Price (each) Stock
DG43-334610-AA Foam, RH $66.47 To Order
Photo Part No Description Price (each) Stock
DG43-334611-AA Foam, LH $66.47 To Order
Photo Part No Description Price (each) Stock
DG43-8052-AA Cover Assembly, Radiator Support Lower $306.48 IN STOCK
Photo Part No Description Price (each) Stock
8G43-2943751-AB Beam, Radiator Support Lower $70.61 To Order
Photo Part No Description Price (each) Stock
8D33-42761-AA Foam Pad, Cover Assy Radiator Support $75.76 To Order
Photo Part No Description Price (each) Stock
DG43-30908-AB Stiffener, Chin RH $253.25 To Order
Photo Part No Description Price (each) Stock
DG43-30907-AB Stiffener, Chin LH $125.56 To Order
Photo Part No Description Price (each) Stock
DG43-38B30-AC CENTRE CHAIN STRAP $158.64 IN STOCK
Photo Part No Description Price (each) Stock
6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) $20.53 To Order
Photo Part No Description Price (each) Stock
703139 Screw/Washer M8x20 Chrome Free $3.24 IN STOCK
Photo Part No Description Price (each) Stock
AG43-32692-BA M8X25 STEEL WASHER $1.42 To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.68 IN STOCK
Photo Part No Description Price (each) Stock
7G43-10609E-AA-PK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $9.74 IN STOCK
Photo Part No Description Price (each) Stock
8D33-2D207-AB DCT BRK CNTR COOL LH $176.58 IN STOCK
Photo Part No Description Price (each) Stock
8D33-2D206-AB DCT BRK CNTR COOL RH $176.58 To Order
Photo Part No Description Price (each) Stock
697517-PK WASHER-M6 LGE OD BLK PACK OF 20 $22.35 To Order
Photo Part No Description Price (each) Stock
702839-PK Screw & Washer M6 x 20 Hex Head (Pack of 20) $5.57 IN STOCK
Photo Part No Description Price (each) Stock
020-002-0135-PK Screw, M6 x 16, Flange Hex Head $291.20 To Order
Photo Part No Description Price (each) Stock
703152-PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.12 IN STOCK

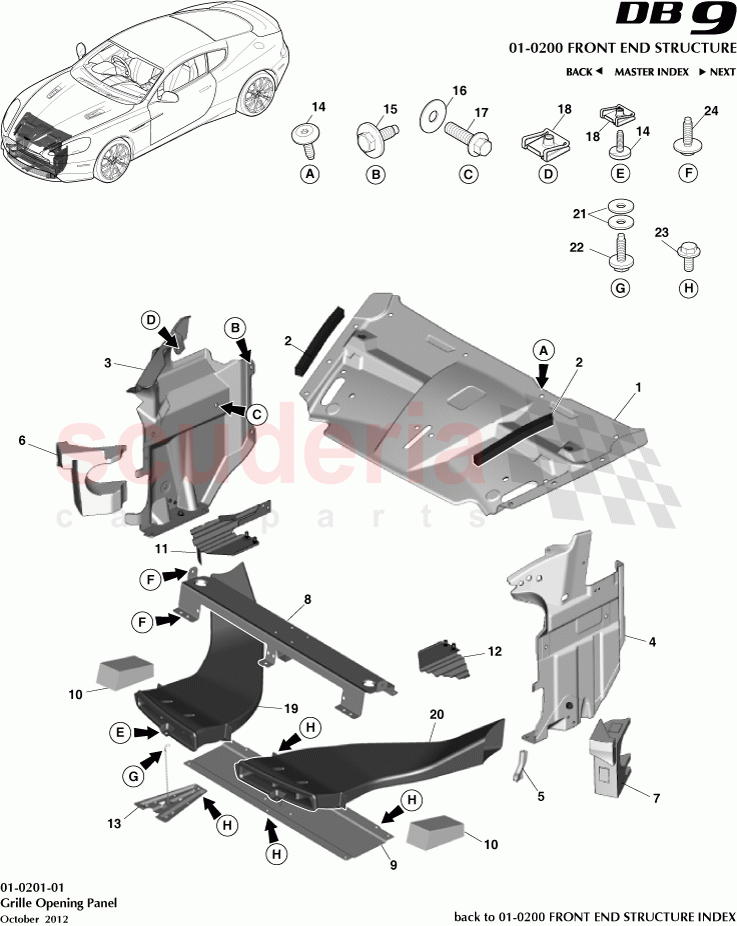

Grille Opening Panel of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DG43-8136-BC
CENTRAL RADIATOR GRILLE 		$1,007.62 1
TO
2 CG43-403D62-AA
Seal, Upper Panel, Air Vent 		$3.14 2
TO
3 DG43-F01990-AC
Panel, Air Vent, RH 		$860.46 1
TO
4 FD43-F01991-AB
PNL VEN AIR LH 		$860.46 1
TO
5 4G43-L41041-AA
Edge Strip, Black 2 x 40
IN STOCK 		$10.74 1
IN
6 DG43-334610-AA
Foam, RH 		$66.47 1
TO
7 DG43-334611-AA
Foam, LH 		$66.47 1
TO
8 DG43-8052-AA
Cover Assembly, Radiator Support Lower
IN STOCK 		$306.48 1
IN
9 8G43-2943751-AB
Beam, Radiator Support Lower 		$70.61 1
TO
10 8D33-42761-AA
Foam Pad, Cover Assy Radiator Support 		$75.76 2
TO
11 DG43-30908-AB
Stiffener, Chin RH 		$253.25 1
TO
12 DG43-30907-AB
Stiffener, Chin LH 		$125.56 1
TO
13 DG43-38B30-AC
CENTRE CHAIN STRAP
IN STOCK 		$158.64 1
IN
14 6G33-FA0115-AB-PK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		$20.53 14
TO
15 703139
Screw/Washer M8x20 Chrome Free
IN STOCK 		$3.24 4
IN
16 AG43-32692-BA
M8X25 STEEL WASHER 		$1.42 4
TO
17 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.68 4
IN
18 7G43-10609E-AA-PK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		$9.74 4
IN
19 8D33-2D207-AB
DCT BRK CNTR COOL LH
IN STOCK 		$176.58 1
IN
20 8D33-2D206-AB
DCT BRK CNTR COOL RH 		$176.58 1
TO
21 697517-PK
WASHER-M6 LGE OD BLK PACK OF 20 		$22.35 2
TO
22 702839-PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10
IN STOCK 		$5.57 1
IN
23 020-002-0135-PK
Screw, M6 x 16, Flange Hex Head 		$291.20 11
TO
24 703152-PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
Pack of 10
IN STOCK 		$5.12 6
IN
