Folding Hood Assembly, Volante

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Folding Hood Assembly, VOLANTE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G43-70351-AA CANOPY COVER CG BLACK KIT $8,457.69 To Order
Photo Part No Description Price (each) Stock
9G43-70352-AB Inner Lining, Obsidian Black $2,646.69 To Order
Photo Part No Description Price (each) Stock
4G43-L51210-AB FRT SL SPR PRT ASY K $1,157.98 To Order
Photo Part No Description Price (each) Stock
4G43-L51221-AA MIDDLE SEAL SPARE PART RH ASSY KID $618.24 To Order
Photo Part No Description Price (each) Stock
4G43-L51220-AA MIDDLE SEAL SPARE PART LH ASSY KIT $618.24 To Order
Photo Part No Description Price (each) Stock
4G43-L51230-AB RR SL SPR PRT ASY KT $1,015.22 To Order
Photo Part No Description Price (each) Stock
9G43-9G803-AA Hydraulic Pump Assy, Includes All Cylinders & Hoses $4,366.77 IN STOCK
Photo Part No Description Price (each) Stock
4G43-37-10686 Harness, Roof Hydraulics, RH $193.60 To Order
Photo Part No Description Price (each) Stock
4G43-L51240-AA CONVERTIBLE ROOF LATCH MOTOR KIT $358.13 IN STOCK
Photo Part No Description Price (each) Stock
4G43-1001991-AA Nut & Washer, M5 $1.40 To Order
Photo Part No Description Price (each) Stock
4G43-L51270-AA FULLY AUTOMOTIVE LATCHING RH KIT $813.90 To Order
Photo Part No Description Price (each) Stock
4G43-69832-AA HEXAGON NUT M6 $1.38 To Order
Photo Part No Description Price (each) Stock
4G43-1003920-AA Screw, Self Cutting $1.23 To Order
Photo Part No Description Price (each) Stock
4G43-765010-BA STRIKER HEADER RH $104.86 To Order
Photo Part No Description Price (each) Stock
4G43-765013-AF LATCH BRKT HARNESS $121.17 To Order
Photo Part No Description Price (each) Stock
4G43-80899-AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) $0.14 To Order
Photo Part No Description Price (each) Stock
4G43-1012524-AA Flex Shaft, RH $93.10 To Order
Photo Part No Description Price (each) Stock
4G43-1012525-AA Flex Shaft, LH $93.10 To Order
Photo Part No Description Price (each) Stock
4G43-93-10614 HEADER TRIM KIT DB9 VOLANTE-IVORY $1,537.40 To Order
Photo Part No Description Price (each) Stock
ED33-16C954-AA Anti-Rattle Pad $12.04 To Order

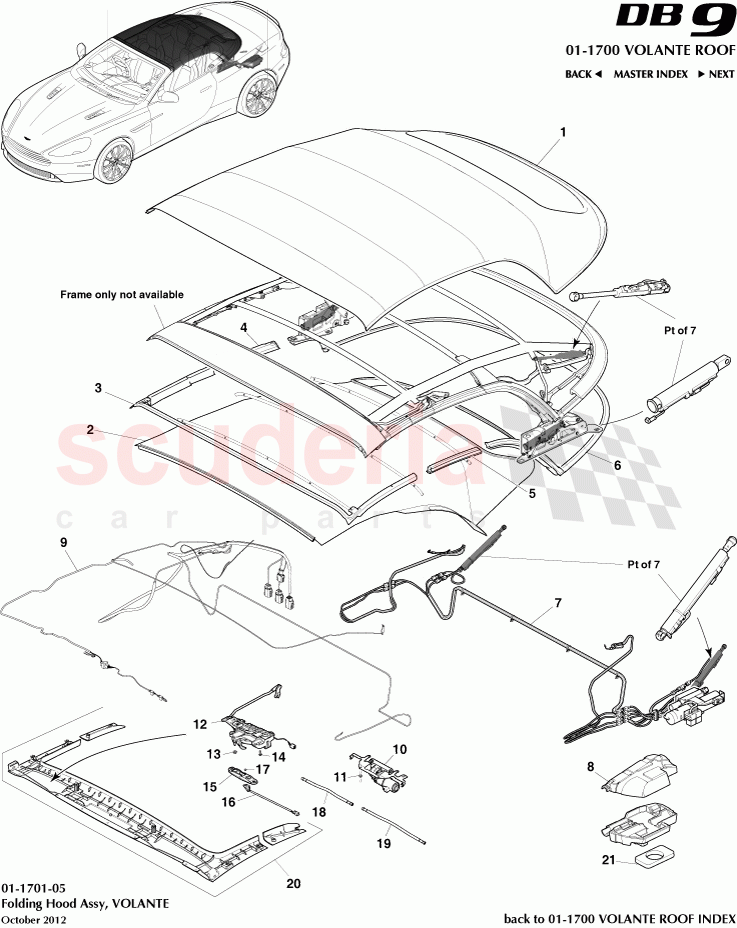

Folding Hood Assembly, VOLANTE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43-76501B00-BF
Top Assembly Folding, Complete 		$23,129.55 1
TO
- ED33-76501B00-CA
TOP ASSY FOLDING
14.5MY 		$27,881.15 1
TO
- ED33-76501B10-CA
TOP ASSY FOLDING
14.5MY 		$23,779.51 1
TO
- 9G43-70351-BA
Canopy Cover Kit, Atlantic Blue 		$8,457.69 1
TO
- 9G43-70351-CA
CANOPY COVER CG JAVA KIT 		$8,457.71 1
TO
- 9G43-70351-DA
CANOPY COVER CG WESTMINSTER GREEN KIT 		$8,457.71 1
TO
- 9G43-70351-EA
CANOPY COVER CG TITAN GREY KIT 		$8,457.72 1
TO
- 9G43-70351-FA
CANOPY COVER CG BURGUNDY KIT 		$14,267.71 1
TO
- 9G43-70351-GA
CANOPY COVER CG SINGED BROWN KIT 		$14,267.71 1
TO
- 9G43-70352-BB
INNER LINING CG IVORY 		$2,646.69 1
TO
- 9G43-70352-CB
INNER LINING CG MOON SHADOW 		$2,646.69 1
TO
- 9G43-70352-DB
INNER LINING CG TAILORS GREY 		$2,646.69 1
TO
- 9G43-70352-EB
Inner Lining, New Light Tan 		$2,646.69 1
TO
- 4G43-37-10685
Harness, Roof Hydraulics, LH 		$166.15 1
TO
- 4G43-L51260-AA
FULLY AUTOMATIC LATCHING LH KIT 		$804.66 1
TO
- 4G43-765011-BA
STRIKER HEADER LH 		$104.86 1
TO
- 4G43-93-10615
HEADER TRIM KIT DB9 VOLANTE MOONSHADOW 		$1,537.40 1
TO
- 4G43-93-10616
HEADER TRIM KIT DB9 VOLANTE TAILORS GREY 		$1,537.40 1
TO
- 4G43-93-10617
HEADER TRIM KIT DB9 VOLANTE-BLACK 		$1,537.40 1
TO
- 4G43-50639-AC
MAIN HYDRAULIC CYLINDER LEFT HAND
IN STOCK 		$493.82 1
IN
- 4G43-50638-AB
MAIN HYDRAULIC CYLINDER RIGHT HAND
IN STOCK 		$966.81 1
IN
- 4G43-539A79-AA
Cylinder, Tension Bow, LH 		$1,478.51 1
TO
- 4G43-539A78-AA
Cylinder, Tension Bow, RH 		$1,478.51 1
TO
- 9G43-53391-AB
Hydraulic Hose, Main Cylinder, LH
Ram Side 		- 1
PE
 Enquire
- 9G43-53390-AB
HYDRAULIC MAIN CYLINDER RIGHT HAND
Ram Side 		- 1
PE
 Enquire
- 4G43-1003889-AA
Screw, Trim Cover Bracket 		$1.38 16
TO
- 4G43-1004048-AA
Screw, M6, Pan Head
1 Per Latch 		$1.47 2
TO
- 4G43-1004355-AA
SELF CUTTING SCREW FH 		$1.38 8
TO
- 4G43-1005038-AA-PK
SPRING CLIP-PK OF 4 		$7.61 4
TO
- 4G43-1013271-AA-PK
SCREW-PIVOT HOOK (8) 		$76.03 2
TO
- 4G43-1016033-AA
Screw, Self Cutting 		$1.23 8
TO
- 4G43-10D916-AA
Control Strap, NSS part of tension belt 		$29.26 2
TO
- 4G43-50641-AA
OVER CENTER PIN 		$7.70 2
TO
- 4G43-515A50-AA
Bracket, Trim Cover 		$1.92 8
TO
- 4G43-68326-AA
Screw, M5, Trim Cover 		$1.38 4
TO
- 4G43-74480-AA
Rivet, Blind 		$2.26 8
TO
- 4G43-75999-AA
SHIM WASHER SEAL CARRIER 		$39.63 6
TO
- 4G43-A502D41-AA
TENSION CABLE CG 		$41.60 2
TO
- 9G43-F502D41-AA
Belt, Tension CG LH, includes control strap 		- 1
PE
 Enquire
- 9G43-F502D42-AA
Belt, Tension CG RH, includes control strap 		- 1
PE
 Enquire
- 4G43-56051-AA
Hole Cover Plug, Black 		$86.12 1
TO
- 4G43-56051-BA
Hole Cover Plug, Ivory 		$86.12 1
TO
- 4G43-56051-CA
Hole Cover Plug, Moon Shadow 		$69.96 1
TO
- 4G43-56051-DA
Hole Cover Plug, Tailor Grey 		$69.96 1
TO
1 9G43-70351-AA
CANOPY COVER CG BLACK KIT 		$8,457.69 1
TO
2 9G43-70352-AB
Inner Lining, Obsidian Black 		$2,646.69 1
TO
3 4G43-L51210-AB
FRT SL SPR PRT ASY K 		$1,157.98 1
TO
4 4G43-L51221-AA
MIDDLE SEAL SPARE PART RH ASSY KID 		$618.24 1
TO
5 4G43-L51220-AA
MIDDLE SEAL SPARE PART LH ASSY KIT 		$618.24 1
TO
6 4G43-L51230-AB
RR SL SPR PRT ASY KT 		$1,015.22 1
TO
7 9G43-9G803-AA
Hydraulic Pump Assy, Includes All Cylinders & Hoses
IN STOCK 		$4,366.77 1
IN
9 4G43-37-10686
Harness, Roof Hydraulics, RH 		$193.60 1
TO
10 4G43-L51240-AA
CONVERTIBLE ROOF LATCH MOTOR KIT
IN STOCK 		$358.13 1
IN
11 4G43-1001991-AA
Nut & Washer, M5
Latch Motor 		$1.40 4
TO
12 4G43-L51270-AA
FULLY AUTOMOTIVE LATCHING RH KIT 		$813.90 1
TO
13 4G43-69832-AA
HEXAGON NUT M6
3 Per Latch 		$1.38 6
TO
14 4G43-1003920-AA
Screw, Self Cutting
1 Per Latch 		$1.23 2
TO
15 4G43-765010-BA
STRIKER HEADER RH 		$104.86 1
TO
16 4G43-765013-AF
LATCH BRKT HARNESS
Sensor, RH Only 		$121.17 1
TO
17 4G43-80899-AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)
1 Per Striker 		$0.14 2
TO
18 4G43-1012524-AA
Flex Shaft, RH 		$93.10 1
TO
19 4G43-1012525-AA
Flex Shaft, LH 		$93.10 1
TO
20 4G43-93-10614
HEADER TRIM KIT DB9 VOLANTE-IVORY 		$1,537.40 1
TO
21 ED33-16C954-AA
Anti-Rattle Pad 		$12.04 1
TO
