Name: Roof Opening Panel, VOLANTE
Rating: 4.8 (1 reviews)

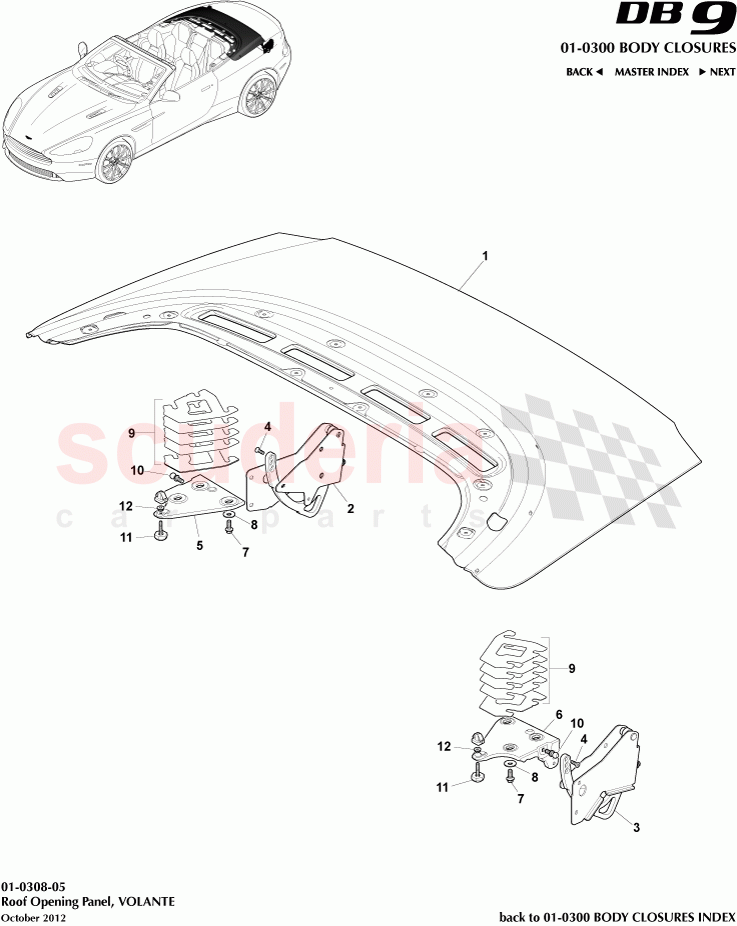

Look at the exploded parts diagram to find the part you need:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
Click on a hotspot in the parts diagram to locate the part you need.

Part Key

In Stock

Arriving Soon

To Order

Please Enquire

Photo	Part No	Description	Price (each)	Stock
	BD33-501A00-AC	Cover, Tonneau	$2,061.30	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43-43028-AC	REINF TL/GT HE ON BD	$277.14	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43-43029-AC	REINF TL.GT HE ON BD	$277.14	To Order

Photo	Part No	Description	Price (each)	Stock
	704336	BOLT-M6x20 FC T1ADH8	$0.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-42930-BA	Bracket, Hinge Leaf, RH	$119.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-42931-BA	Bracket, Hinge Leaf, LH	$119.43	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697452	Washer, M8 x 24 x 1.8, Black	$7.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-49199-AA	Shim, 1mm Tonneau Hinge	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-5867827-AB	GAS STRUT BALL STUD M8	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-16K808-AB	Buffer Assy Hood Bumper-Supt BMP R to Cowl Top OTRPNL	$5.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$1.66	IN STOCK

Roof Opening Panel, Volante

Aston Martin DB9 (2013-2016)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	4G43-49198-AA	Shim, 2mm Tonneau Hinge	4G43-49198-AA Shim, 2mm Tonneau Hinge	$5.94	A/R	IN
-	4G43-49200-AA	Shim, 0.6mm Tonneau Hinge	4G43-49200-AA Shim, 0.6mm Tonneau Hinge	$25.07	A/R	IN
1	BD33-501A00-AC	Cover, Tonneau	BD33-501A00-AC Cover, Tonneau	$2,061.30	1	IN
2	9G43-43028-AC	REINF TL/GT HE ON BD	9G43-43028-AC REINF TL/GT HE ON BD	$277.14	1	IN
3	9G43-43029-AC	REINF TL.GT HE ON BD	9G43-43029-AC REINF TL.GT HE ON BD	$277.14	1	IN
4	704336	BOLT-M6x20 FC T1ADH8	704336 BOLT-M6x20 FC T1ADH8 3 Per Hinge	$0.56	6	IN
5	4G43-42930-BA	Bracket, Hinge Leaf, RH	4G43-42930-BA Bracket, Hinge Leaf, RH	$119.43	1	IN
6	4G43-42931-BA	Bracket, Hinge Leaf, LH	4G43-42931-BA Bracket, Hinge Leaf, LH	$119.43	1	IN
7	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head 3 Per Bracket IN STOCK	$0.46	6	IN
8	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black 3 Per Bracket	$7.31	6	IN
9	4G43-49199-AA	Shim, 1mm Tonneau Hinge	4G43-49199-AA Shim, 1mm Tonneau Hinge	$5.08	A/R	IN
10	4G43-5867827-AB	GAS STRUT BALL STUD M8	4G43-5867827-AB GAS STRUT BALL STUD M8 1 Per Bracket	$2.51	2	IN
11	4G43-16K808-AB	Buffer Assy Hood Bumper-Supt BMP R to Cowl Top OTRPNL IN STOCK	4G43-16K808-AB Buffer Assy Hood Bumper-Supt BMP R to Cowl Top OTRPNL 1 Per Bracket IN STOCK	$5.11	2	IN
12	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head 1 Per Support IN STOCK	$1.66	2	IN
