Transaxle, Manual

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Transaxle, MANUAL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91789 TRAN AX ASSY $19,421.57 To Order
Photo Part No Description Price (each) Stock
4G43-27-10600 OUTPUT SHAFT - LEFT SIDE DIF $1,195.06 To Order
Photo Part No Description Price (each) Stock
4G43-27-10601 OUTPUT SHAFT - RIGHT SIDE DIF $872.64 To Order
Photo Part No Description Price (each) Stock
4G43-27-10602 BEARING - DIF OUTPUT SHAFT LEFT HAND $96.39 To Order
Photo Part No Description Price (each) Stock
702812 Bolt, M6 x 16, Hex Flange Head $1.20 To Order
Photo Part No Description Price (each) Stock
4G43-27-10482 O Ring, 2.62 x 75.87 $12.07 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-10483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 $74.51 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-10603 Bearing, Differential Output Shaft $204.66 To Order
Photo Part No Description Price (each) Stock
702813 SHIM $4.27 To Order
Photo Part No Description Price (each) Stock
4G43-27-10604 Seal, Differential Output Shaft RH, 55 x 70 x 8 $73.76 IN STOCK
Photo Part No Description Price (each) Stock
702814 SHIM $166.40 To Order
Photo Part No Description Price (each) Stock
4G43-27-10605 Bearing, Differential Output $307.92 To Order
Photo Part No Description Price (each) Stock
702815 BOLT M8 x 30 $5.07 To Order
Photo Part No Description Price (each) Stock
4G43-27-10606 COVER - DIFFERENTIAL $1,554.91 To Order
Photo Part No Description Price (each) Stock
4G43-27-10502 O Ring, 2.69 x 9.92 $1.76 To Order
Photo Part No Description Price (each) Stock
4G43-27-10607 SEAL - COVER $120.55 To Order
Photo Part No Description Price (each) Stock
4G432710608 Crown wheel, Differential Enquire To Order
Photo Part No Description Price (each) Stock
702816 SHIM $66.77 To Order
Photo Part No Description Price (each) Stock
702817 Set Screw, M8 x 10 $6.96 To Order
Photo Part No Description Price (each) Stock
4G432710609 Pipe, trans cooling, 90° Enquire To Order
Photo Part No Description Price (each) Stock
702818 PLUG $3.34 To Order
Photo Part No Description Price (each) Stock
4G43-27-10244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) $51.29 To Order
Photo Part No Description Price (each) Stock
4G43-27-10245-PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $41.16 To Order
Photo Part No Description Price (each) Stock
4G43-27-10490 Filter, Oil $200.24 To Order
Photo Part No Description Price (each) Stock
4G43-27-10491-PK O RING 2.62 x 20.63 (PACK OF 10) $41.89 To Order
Photo Part No Description Price (each) Stock
4G43-27-10492 Screw, M5 x 12 $3.11 To Order
Photo Part No Description Price (each) Stock
702821 Washer, 5.3 x 0.5 $4.10 To Order
Photo Part No Description Price (each) Stock
4G43-27-10493 PLUG - OIL LEVEL M22 $14.00 To Order
Photo Part No Description Price (each) Stock
4G43-27-10245-PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $41.16 To Order
Photo Part No Description Price (each) Stock
4G43-7A245-CA TUBE ASSY - MAN TRANSMISSION BREATHE $17.64 To Order
Photo Part No Description Price (each) Stock
4G43-27-10488 Adaptor, Breather $93.85 To Order
Photo Part No Description Price (each) Stock
4G43-27-10611 HOUSING-DIFFERENTIAL $4,926.68 To Order
Photo Part No Description Price (each) Stock
702822 BOLT M6 x 50 $5.42 To Order
Photo Part No Description Price (each) Stock
6G33-7N372-AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT $10,779.41 To Order
Photo Part No Description Price (each) Stock
4G43-19G506-BA Grease, Input Shaft Spline $26.59 To Order
6G337H436AA Pinion and bevel gear set $9,583.10 To Order
6G33-75106-AA/S OIL-MAN TRANS 1 ltr Enquire To Order
...and 1 more part variants. See table on right for more details.

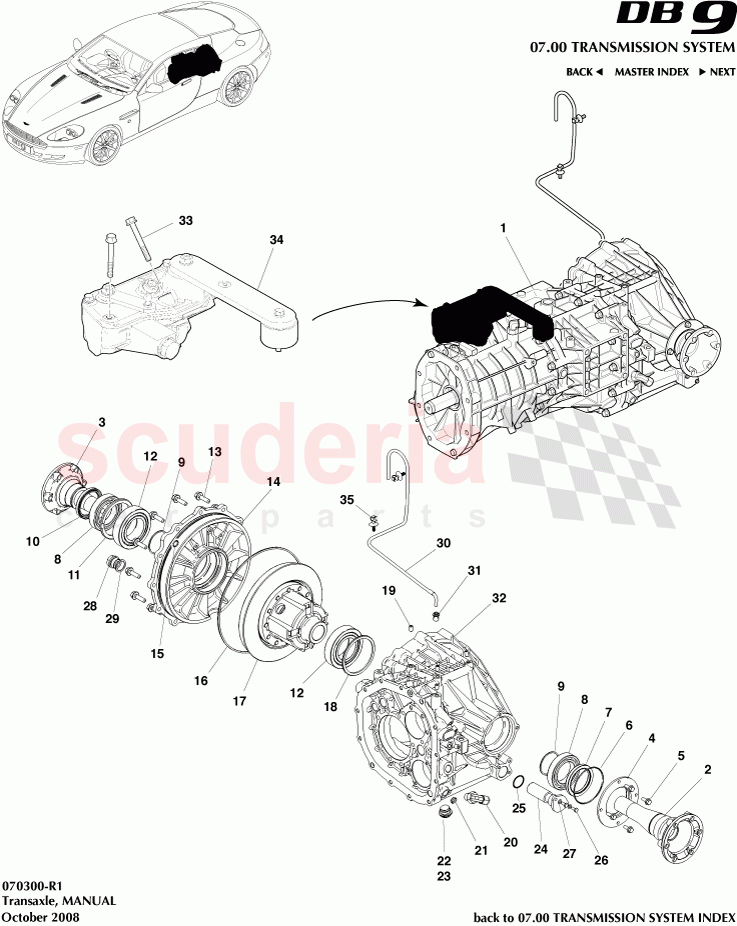

Transaxle, MANUAL of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91789
TRAN AX ASSY 		$19,421.57 1
TO
2 4G43-27-10600
OUTPUT SHAFT - LEFT SIDE DIF 		$1,195.06 1
TO
3 4G43-27-10601
OUTPUT SHAFT - RIGHT SIDE DIF 		$872.64 1
TO
4 4G43-27-10602
BEARING - DIF OUTPUT SHAFT LEFT HAND 		$96.39 1
TO
5 702812
Bolt, M6 x 16, Hex Flange Head 		$1.20 4
TO
6 4G43-27-10482
O Ring, 2.62 x 75.87
IN STOCK 		$12.07 1
IN
7 4G43-27-10483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$74.51 1
IN
8 4G43-27-10603
Bearing, Differential Output Shaft 		$204.66 2
TO
9 702813
SHIM 		$4.27 1
TO
10 4G43-27-10604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$73.76 1
IN
11 702814
SHIM 		$166.40 1
TO
12 4G43-27-10605
Bearing, Differential Output 		$307.92 2
TO
13 702815
BOLT M8 x 30 		$5.07 12
TO
14 4G43-27-10606
COVER - DIFFERENTIAL 		$1,554.91 1
TO
15 4G43-27-10502
O Ring, 2.69 x 9.92 		$1.76 1
TO
16 4G43-27-10607
SEAL - COVER 		$120.55 1
TO
17 4G432710608
Crown wheel, Differential 		- 1
PE
 Enquire
18 702816
SHIM 		$66.77 1
TO
19 702817
Set Screw, M8 x 10 		$6.96 6
TO
20 4G432710609
Pipe, trans cooling, 90° 		- 1
PE
 Enquire
21 702818
PLUG 		$3.34 1
TO
22 4G43-27-10244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) 		$51.29 1
TO

4G43-27-10245-PK

COPPER WASHER DRAIN PLUG 22X28X1.5 (PACK OF 10)

from $41.16

24 4G43-27-10490
Filter, Oil 		$200.24 1
TO
25 4G43-27-10491-PK
O RING 2.62 x 20.63 (PACK OF 10) 		$41.89 1
TO
26 4G43-27-10492
Screw, M5 x 12 		$3.11 2
TO
27 702821
Washer, 5.3 x 0.5 		$4.10 2
TO
28 4G43-27-10493
PLUG - OIL LEVEL M22 		$14.00 1
TO
30 4G43-7A245-CA
TUBE ASSY - MAN TRANSMISSION BREATHE 		$17.64 1
TO
31 4G43-27-10488
Adaptor, Breather 		$93.85 1
TO
32 4G43-27-10611
HOUSING-DIFFERENTIAL 		$4,926.68 1
TO
33 702822
BOLT M6 x 50 		$5.42 2
TO
34 6G33-7N372-AB
BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT 		$10,779.41 1
TO
35 4G43-19G506-BA
Grease, Input Shaft Spline 		$26.59 1
TO
35 6G337H436AA
Pinion and bevel gear set 		$9,583.10 1
TO
35 6G33-75106-AA/S
OIL-MAN TRANS 1 ltr 		- 1
PE
 Enquire
35 701575
Clip, Trans Breather Pipe 		$0.71 1
TO
