Transaxle Cooling, Manual (2009) (Page 2)

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Transaxle Cooling, MANUAL (2009) (page 2)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33-7H255-BA HOSE AIR/OIL ASSY COOLER INLET $236.96 To Order
Photo Part No Description Price (each) Stock
8D33-7H256-BB HOSE AIR/OIL ASSY COOLER OUTLET $286.51 To Order
Photo Part No Description Price (each) Stock
8D33-7K177-CA CO0LER ASSY TRANMISS OIL $768.43 IN STOCK
Photo Part No Description Price (each) Stock
8D33-7H460-AA DUCT TRANS AIR COOLER $107.33 To Order
Photo Part No Description Price (each) Stock
703730 Screw, M8 x 16, Hex Flange Head $0.46 IN STOCK
Photo Part No Description Price (each) Stock
6G43445396AA Oil cooler Enquire To Order
HY53-E804349-AA M6 X 14 SCREW HEX HD $0.71 IN STOCK

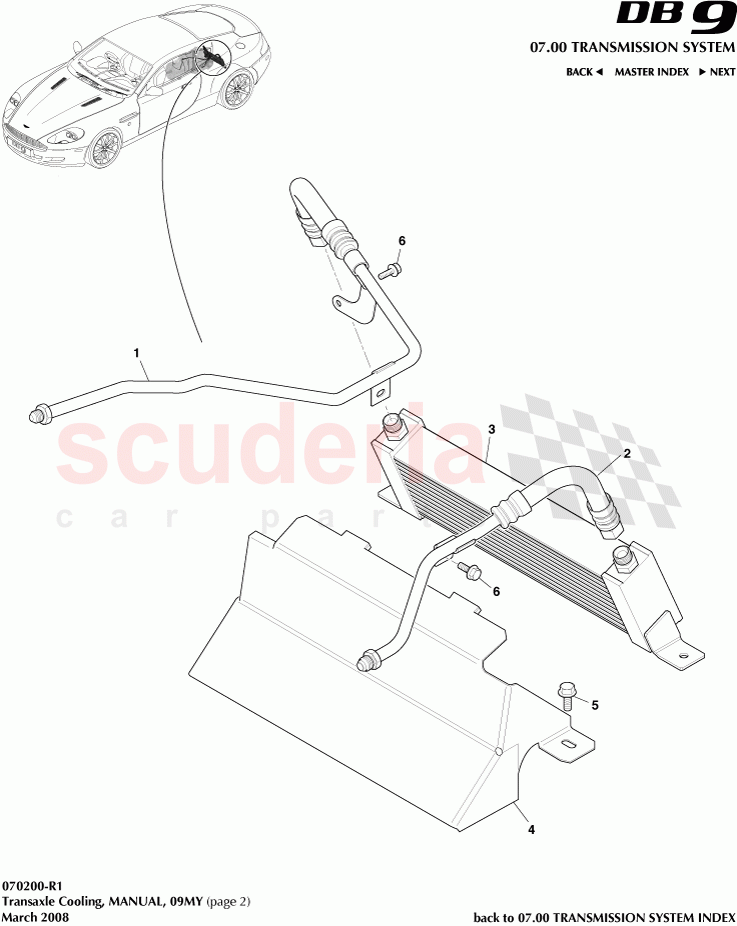

Transaxle Cooling, MANUAL (2009) (page 2) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D33-7H255-BA
HOSE AIR/OIL ASSY COOLER INLET 		$236.96 1
TO
2 8D33-7H256-BB
HOSE AIR/OIL ASSY COOLER OUTLET 		$286.51 1
TO
3 8D33-7K177-CA
CO0LER ASSY TRANMISS OIL
IN STOCK 		$768.43 1
IN
4 8D33-7H460-AA
DUCT TRANS AIR COOLER
09MY 		$107.33 1
TO
5 703730
Screw, M8 x 16, Hex Flange Head
IN STOCK 		$0.46 2
IN
6 6G43445396AA
Oil cooler
Extreme cooling pack 		- 1
PE
 Enquire
6 HY53-E804349-AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.71 2
IN
