Automatic Transaxle

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Automatic Transaxle

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91828 DIFFERENTIAL-AUTO $13,762.08 To Order
91827 DIFFERENTIAL-AUTO $9,596.22 To Order
Photo Part No Description Price (each) Stock
4G43-27-10480 OUTPUT SHAFT - LEFT SIDE DIFF $1,527.75 To Order
Photo Part No Description Price (each) Stock
4G43-27-10481 Cover, Output Shaft, Differential $277.06 To Order
Photo Part No Description Price (each) Stock
4G43-27-10482 O Ring, 2.62 x 75.87 $12.07 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-11055 O Ring, 2.62 x 94.92 $27.54 To Order
Photo Part No Description Price (each) Stock
4G43-27-10483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 $74.51 IN STOCK
4G43-27-10604 Seal, Differential Output Shaft RH, 55 x 70 x 8 $73.76 IN STOCK
Photo Part No Description Price (each) Stock
CD33-27-10007 Ball bearing, 50 x 80 x 16 $63.38 To Order
Photo Part No Description Price (each) Stock
4G43-27-10485 Screw, M8 x 30 $0.83 To Order
Photo Part No Description Price (each) Stock
4G43-27-10486 WASHER - ELASTIC CURVE $0.14 To Order
Photo Part No Description Price (each) Stock
4G43-27-10494 Union, Oil Cooler $45.01 To Order
Photo Part No Description Price (each) Stock
4G43-27-10487 Gasket, Flat, 16 x 22 $0.83 To Order
Photo Part No Description Price (each) Stock
4G43-27-10488 Adaptor, Breather $93.85 To Order
Photo Part No Description Price (each) Stock
4G43-27-10489 PLUG - BREATHER $20.31 To Order
Photo Part No Description Price (each) Stock
4G43-27-10490 Filter, Oil $200.24 To Order
Photo Part No Description Price (each) Stock
4G43-27-10491-PK O RING 2.62 x 20.63 (PACK OF 10) $41.89 To Order
Photo Part No Description Price (each) Stock
4G43-27-10492 Screw, M5 x 12 $3.11 To Order
Photo Part No Description Price (each) Stock
4G43-27-10493 PLUG - OIL LEVEL M22 $14.00 To Order
Photo Part No Description Price (each) Stock
4G43-27-10245-PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $41.16 To Order
Photo Part No Description Price (each) Stock
4G43-27-10244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) $51.29 To Order
Photo Part No Description Price (each) Stock
4G43-27-10495 SPEED SENSOR $530.85 To Order
Photo Part No Description Price (each) Stock
4G43-27-10496 SCREW M6 x 16 $0.71 To Order
Photo Part No Description Price (each) Stock
4G43-27-10497 WASHER - ELASTIC $0.14 To Order
Photo Part No Description Price (each) Stock
4G43-27-10498 COVER - DIFFERENTIAL $797.37 To Order
Photo Part No Description Price (each) Stock
4G43-27-10499 Screw, M8 x 25 $2.18 To Order
Photo Part No Description Price (each) Stock
4G43-27-10500 O Ring, 3.53 x 228.19 $81.46 To Order
Photo Part No Description Price (each) Stock
4G43-27-10501 DOWEL $6.06 To Order
Photo Part No Description Price (each) Stock
4G43-27-10502 O Ring, 2.69 x 9.92 $1.76 To Order
Photo Part No Description Price (each) Stock
704349-PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 $286.27 To Order
4G43-27-11158 O Ring, Rear Cover, 3.53 x 123.42 $56.24 To Order

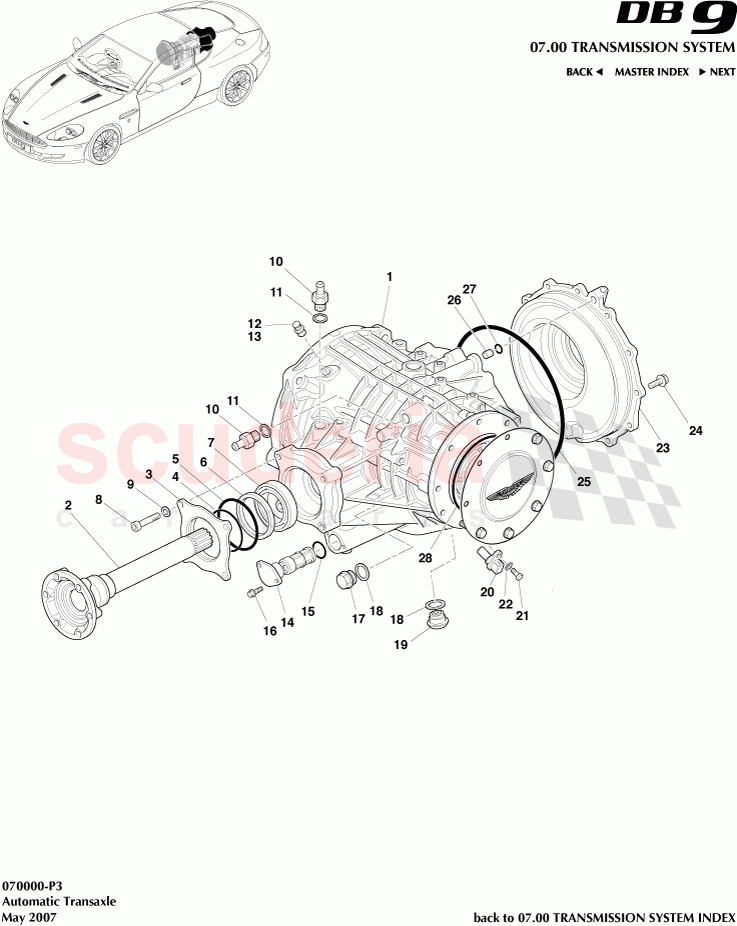

Automatic Transaxle of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91828
DIFFERENTIAL-AUTO
11MY 		$13,762.08 1
TO
1 91827
DIFFERENTIAL-AUTO 		$9,596.22 1
TO
2 4G43-27-10480
OUTPUT SHAFT - LEFT SIDE DIFF 		$1,527.75 2
TO
3 4G43-27-10481
Cover, Output Shaft, Differential 		$277.06 1
TO
4 4G43-27-10482
O Ring, 2.62 x 75.87
IN STOCK 		$12.07 1
IN
5 4G43-27-11055
O Ring, 2.62 x 94.92 		$27.54 1
TO
6 4G43-27-10483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$74.51 1
IN
6 4G43-27-10604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$73.76 1
IN
7 CD33-27-10007
Ball bearing, 50 x 80 x 16 		$63.38 1
TO
8 4G43-27-10485
Screw, M8 x 30 		$0.83 4
TO
9 4G43-27-10486
WASHER - ELASTIC CURVE 		$0.14 4
TO
10 4G43-27-10494
Union, Oil Cooler 		$45.01 2
TO
11 4G43-27-10487
Gasket, Flat, 16 x 22 		$0.83 2
TO
12 4G43-27-10488
Adaptor, Breather 		$93.85 1
TO
13 4G43-27-10489
PLUG - BREATHER 		$20.31 1
TO
14 4G43-27-10490
Filter, Oil 		$200.24 1
TO
15 4G43-27-10491-PK
O RING 2.62 x 20.63 (PACK OF 10) 		$41.89 1
TO
16 4G43-27-10492
Screw, M5 x 12 		$3.11 2
TO
17 4G43-27-10493
PLUG - OIL LEVEL M22 		$14.00 1
TO
18 4G43-27-10245-PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10) 		$41.16 2
TO
19 4G43-27-10244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) 		$51.29 1
TO
20 4G43-27-10495
SPEED SENSOR 		$530.85 1
TO
21 4G43-27-10496
SCREW M6 x 16 		$0.71 1
TO
22 4G43-27-10497
WASHER - ELASTIC 		$0.14 1
TO
23 4G43-27-10498
COVER - DIFFERENTIAL 		$797.37 1
TO
24 4G43-27-10499
Screw, M8 x 25 		$2.18 12
TO
25 4G43-27-10500
O Ring, 3.53 x 228.19 		$81.46 1
TO
26 4G43-27-10501
DOWEL 		$6.06 1
TO
27 4G43-27-10502
O Ring, 2.69 x 9.92 		$1.76 1
TO
28 704349-PK
TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12
-Shell Spirax 		$286.27 -
TO
28 4G43-27-11158
O Ring, Rear Cover, 3.53 x 123.42 		$56.24 1
TO
