Name: Driveshaft Assembly (Auto)
Rating: 4.7 (1 reviews)

Driveshaft Assembly (Auto) of Aston Martin Aston Martin DB9 (2004-2012)

View All

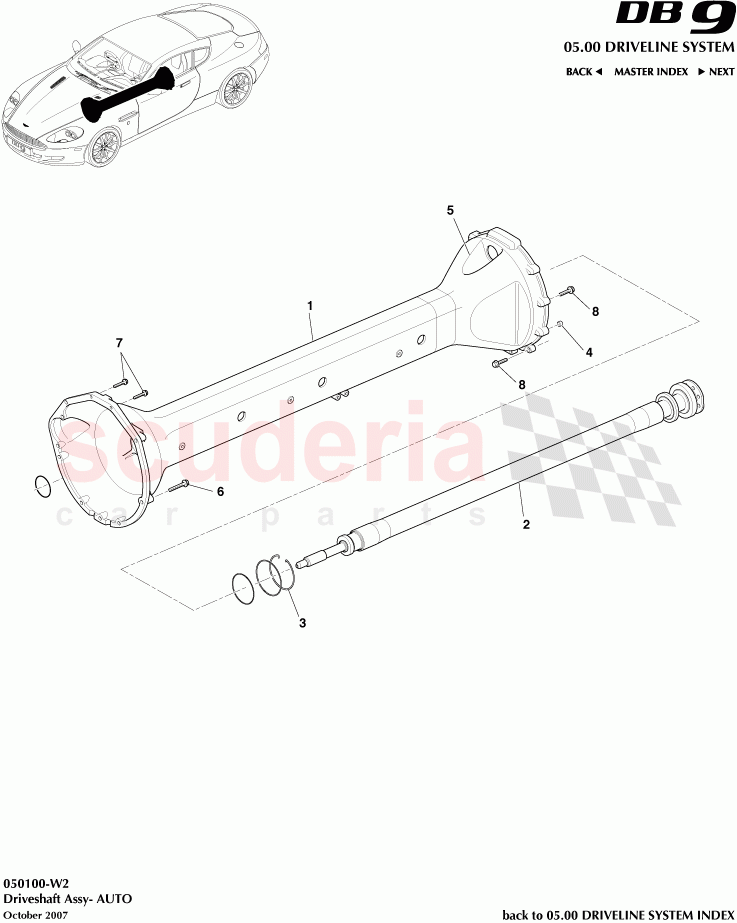

Aston Martin DB9 (2004-2012) - Driveshaft Assembly (Auto)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G434602BE	DRIVESHAFT ASSEMBLY	$4,851.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436922AA	RETAINING CLIP	$11.21	To Order

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	$17.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	$6.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703191	BOLT-M10x1.5x65 FLG CHROME FREE	$0.95	IN STOCK
	703191	BOLT-M10x1.5x65 FLG CHROME FREE	$0.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703195	SCREW M8x40 FLG 8 CHROME FREE	$0.57	IN STOCK
	703195	SCREW M8x40 FLG 8 CHROME FREE	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	$0.84	IN STOCK
	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	$0.84	IN STOCK
	704575	O RING 4G43-7B084-BA_PIA2	$3.41	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	8D334500BA	TORQUE TUBE & PROPSH AFT ASY AUTO/TT	8D334500BA TORQUE TUBE & PROPSH AFT ASY AUTO/TT Up to (V) A07422	$6,036.74	1
-	8D334500BA	TORQUE TUBE & PROPSH AFT ASY AUTO/TT	8D334500BA TORQUE TUBE & PROPSH AFT ASY AUTO/TT From (V) A07423	$6,036.74	1
2	4G434602BE	DRIVESHAFT ASSEMBLY	4G434602BE DRIVESHAFT ASSEMBLY	$4,851.38	1
3	4G436922AA	RETAINING CLIP	4G436922AA RETAINING CLIP	$11.21	1
4	699134	Dowel, Hollow	699134 Dowel, Hollow	$17.69	2
5	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE IN STOCK	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE IN STOCK	$6.55	2
6	703191	BOLT-M10x1.5x65 FLG CHROME FREE IN STOCK	703191 BOLT-M10x1.5x65 FLG CHROME FREE 08MY From (V) A09110 IN STOCK	$0.95	7
6	703191	BOLT-M10x1.5x65 FLG CHROME FREE IN STOCK	703191 BOLT-M10x1.5x65 FLG CHROME FREE 07MY IN STOCK	$0.95	7
7	703195	SCREW M8x40 FLG 8 CHROME FREE IN STOCK	703195 SCREW M8x40 FLG 8 CHROME FREE 08MY From (V) A09110 IN STOCK	$0.57	2
7	703195	SCREW M8x40 FLG 8 CHROME FREE IN STOCK	703195 SCREW M8x40 FLG 8 CHROME FREE 07MY IN STOCK	$0.57	2
8	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE IN STOCK	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE 08MY From (V) A09110 IN STOCK	$0.84	2
8	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE IN STOCK	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE 07MY IN STOCK	$0.84	2
8	704575	O RING 4G43-7B084-BA_PIA2	704575 O RING 4G43-7B084-BA_PIA2	$3.41	1
8	704574	O RING 4G43-7B084-BA_PIA1	704574 O RING 4G43-7B084-BA_PIA1	$3.68	1
8	HY538527AA	O-RING (PROP FR)	HY538527AA O-RING (PROP FR)	$7.97	1
