Name: Rear Halfshaft Assembly
Rating: 4.7 (1 reviews)

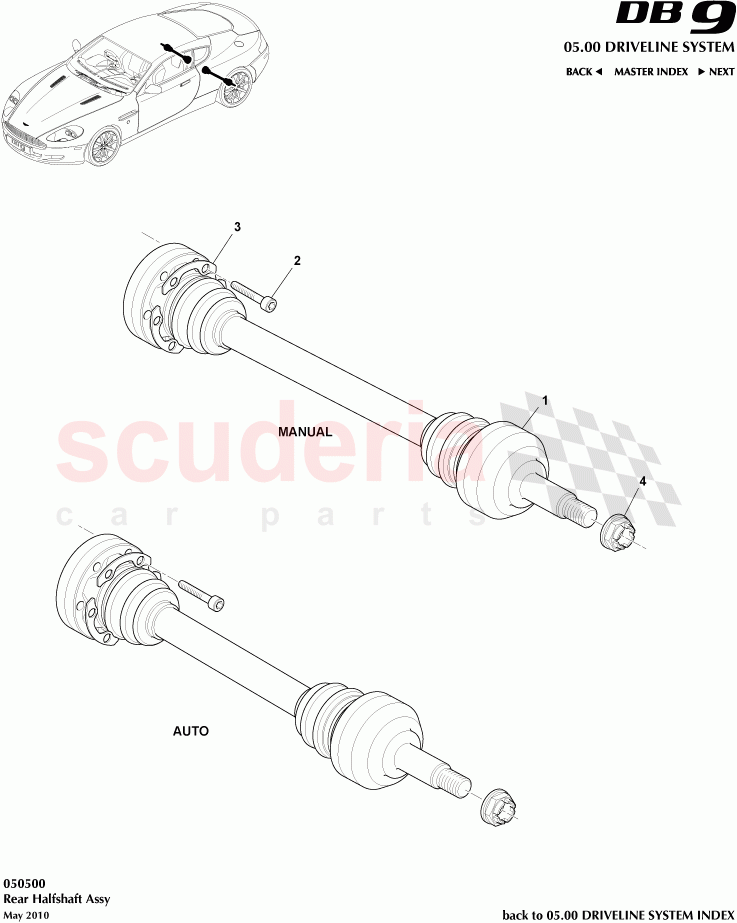

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43-4B402-AA	REAR DRIVE HALFSHAFT ASSY - LH AUTO	$1,738.37	To Order
	AD43-4K138-BA	REAR DRIVE HALF SHAFT RH AUTO	$1,033.99	To Order
	4G43-4B402-AB	REAR DRIVE HALFSHAFT RH MANUAL/LH AUTO	$1,749.19	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6W83-4B423-AA	Nut, Rear Drive Shaft to Rear Hub Flange	$39.91	To Order
	6W83-4B423-AA	Nut, Rear Drive Shaft to Rear Hub Flange	$39.91	To Order

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	AD43-4B402-AA	REAR DRIVE HALFSHAFT ASSY - LH AUTO	AD43-4B402-AA REAR DRIVE HALFSHAFT ASSY - LH AUTO -11MY	$1,738.37	1	TO
	1	AD43-4K138-BA	REAR DRIVE HALF SHAFT RH AUTO	AD43-4K138-BA REAR DRIVE HALF SHAFT RH AUTO -11MY	$1,033.99	1	TO
	1	4G43-4B402-AB	REAR DRIVE HALFSHAFT RH MANUAL/LH AUTO	4G43-4B402-AB REAR DRIVE HALFSHAFT RH MANUAL/LH AUTO	$1,749.19	1	TO
	1	4G43-4K139-AB	REAR DRIVE HALFSHAFT ASSY - LH MANUAL	4G43-4K139-AB REAR DRIVE HALFSHAFT ASSY - LH MANUAL	$1,749.19	1	TO
	1	4G43-4K138-BB	REAR DRIVE HALFSHAFT ASSY - RH AUTO	4G43-4K138-BB REAR DRIVE HALFSHAFT ASSY - RH AUTO	$1,749.19	1	TO
	FD43-CD60-AA		SCREW M10 X 55 X 1.25	from $1.47
2 Screw M10 X 55 X 1.25 IN STOCK $1.47 12 IN 2 Screw M10 X 55 X 1.25 IN STOCK $1.47 12 IN
	3	AD43-4K228-AA	PLT - DRV/SHFT CONST VEL JT LK	AD43-4K228-AA PLT - DRV/SHFT CONST VEL JT LK 11MY	$15.82	6	TO
	3	4G43-4K228-AA	PLT - DRV/SHFT CONST VEL JT LK	4G43-4K228-AA PLT - DRV/SHFT CONST VEL JT LK	$7.87	6	TO
	6W83-4B423-AA		NUT, REAR DRIVE SHAFT TO REAR HUB FLANGE	from $39.91
4 Nut, Rear Drive Shaft to Rear Hub Flange $39.91 2 TO 4 Nut, Rear Drive Shaft to Rear Hub Flange $39.91 2 TO
