Name: ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL
Rating: 4.0 (1 reviews)

Diagram
INFO

ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

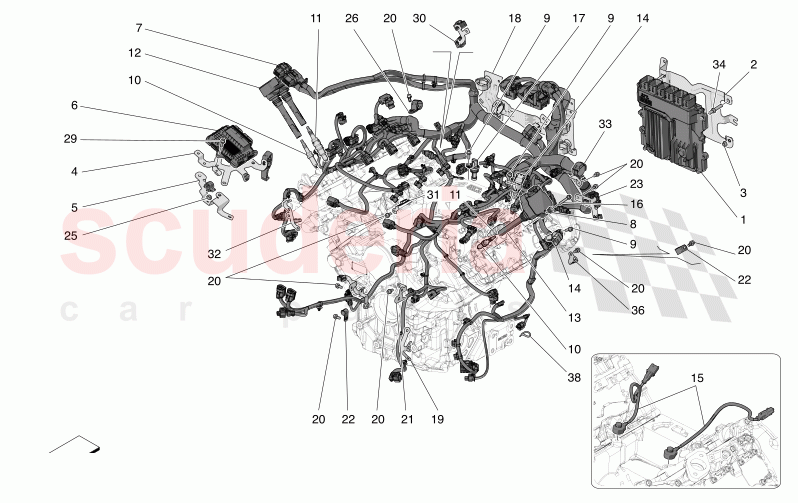

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670215611	ENGINE CONTROL UNIT	$496.56	To Order

Photo	Part No	Description	Price (each)	Stock
	670156735	BRACKET	$33.78	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	675002145	BRACKET	$27.38	To Order

Photo	Part No	Description	Price (each)	Stock
	675002122	BRACKET	$23.39	To Order

Photo	Part No	Description	Price (each)	Stock
	670222432	CONTROL MODULE	$851.71	To Order

Photo	Part No	Description	Price (each)	Stock
	670054319	ENGINE INJECTION WIRING HARNESS	$1,579.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670053737	BUSHING	$9.88	To Order

Photo	Part No	Description	Price (each)	Stock
	670051106	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	670053696	SPARK PLUG	$19.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670053816	ANTECHAMBER SPARK PLUG	$92.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670053658	RH HEAD SIDE IGNITION COIL	$120.14	To Order

Photo	Part No	Description	Price (each)	Stock
	670053659	LH HEAD SIDE IGNITION COIL	$120.14	To Order

Photo	Part No	Description	Price (each)	Stock
	670050422	TIMING SENSOR	$45.29	To Order

Photo	Part No	Description	Price (each)	Stock
	670051424	SENSOR FOR FIRING	$86.44	To Order

Photo	Part No	Description	Price (each)	Stock
	670053660	SCREW	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock
	670054301	ANGULAR SPEED SENSOR	$86.23	To Order

Photo	Part No	Description	Price (each)	Stock
	670298320	BRACKET	$38.83	To Order
	670219241	BRACKET	$41.60	To Order

Photo	Part No	Description	Price (each)	Stock
	670052914	BRACKET	$15.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670051104	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	670052913	BRACKET	$9.18	To Order

Photo	Part No	Description	Price (each)	Stock
	670051479	BRACKET	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	670054239	BRACKET	$21.72	To Order

Photo	Part No	Description	Price (each)	Stock
	675000181	NUT	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	670050338	CLIP	$13.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675001312	SCREW	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	670052916	BRACKET	$11.81	To Order

Photo	Part No	Description	Price (each)	Stock
	670053607	BRACKET	$14.11	To Order

Photo	Part No	Description	Price (each)	Stock
	670052917	BRACKET	$15.57	To Order

Photo	Part No	Description	Price (each)	Stock
	670054237	BRACKET	$11.21	To Order

Photo	Part No	Description	Price (each)	Stock
	670175345	TWIN SCREW	$17.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670052915	BRACKET	$10.85	To Order

Photo	Part No	Description	Price (each)	Stock
	670051301	CLAMP	$30.63	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	670215611	ENGINE CONTROL UNIT	670215611 ENGINE CONTROL UNIT EU AU US UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX;	$496.56	1	TO
2	670156735	BRACKET	670156735 BRACKET	$33.78	1	TO
3	675000969	NUT	675000969 NUT	$1.09	5	TO
4	675002145	BRACKET	675002145 BRACKET	$27.38	1	TO
5	675002122	BRACKET	675002122 BRACKET	$23.39	1	TO
6	670222432	CONTROL MODULE	670222432 CONTROL MODULE	$851.71	1	TO
7	670054319	ENGINE INJECTION WIRING HARNESS	670054319 ENGINE INJECTION WIRING HARNESS	$1,579.00	1	TO
8	670053737	BUSHING	670053737 BUSHING	$9.88	36	TO
9	670051106	SCREW	670051106 SCREW	$2.47	5	TO
10	670053696	SPARK PLUG IN STOCK	670053696 SPARK PLUG IN STOCK	$19.05	6	IN
11	670053816	ANTECHAMBER SPARK PLUG	670053816 ANTECHAMBER SPARK PLUG	$92.28	6	TO
12	670053658	RH HEAD SIDE IGNITION COIL	670053658 RH HEAD SIDE IGNITION COIL	$120.14	3	TO
13	670053659	LH HEAD SIDE IGNITION COIL	670053659 LH HEAD SIDE IGNITION COIL	$120.14	3	TO
14	670050422	TIMING SENSOR	670050422 TIMING SENSOR	$45.29	4	TO
15	670051424	SENSOR FOR FIRING	670051424 SENSOR FOR FIRING	$86.44	2	TO
16	670053660	SCREW	670053660 SCREW	$3.43	18	TO
17	670054301	ANGULAR SPEED SENSOR	670054301 ANGULAR SPEED SENSOR	$86.23	1	TO
18	670298320	BRACKET	670298320 BRACKET Bespoke Assembly Number 2006092 - 99999999;	$38.83	1	TO
18	670219241	BRACKET	670219241 BRACKET Bespoke Assembly Number 0 - 2006091;	$41.60	1	TO
19	670052914	BRACKET	670052914 BRACKET	$15.45	1	TO
20	670051104	SCREW	670051104 SCREW	$2.47	9	TO
21	670052913	BRACKET	670052913 BRACKET	$9.18	1	TO
22	670051479	BRACKET	670051479 BRACKET	$11.59	4	TO
23	670054239	BRACKET	670054239 BRACKET	$21.72	1	TO
25	675000181	NUT	675000181 NUT	$1.63	2	TO
26	670050338	CLIP	670050338 CLIP	$13.99	2	TO
29	675001312	SCREW	675001312 SCREW	$2.87	3	TO
30	670052916	BRACKET	670052916 BRACKET	$11.81	1	TO
31	670053607	BRACKET	670053607 BRACKET	$14.11	1	TO
32	670052917	BRACKET	670052917 BRACKET	$15.57	1	TO
33	670054237	BRACKET	670054237 BRACKET	$11.21	1	TO
34	670175345	TWIN SCREW	670175345 TWIN SCREW	$17.35	2	TO
36	670052915	BRACKET	670052915 BRACKET	$10.85	1	TO
38	670051301	CLAMP	670051301 CLAMP	$30.63	1	TO

Electronic Control: Injection And Engine Timing Control

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL
