Fuel Pumps And Connection Lines

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675002220 FUEL PUMP $343.85 To Order
Photo Part No Description Price (each) Stock
675001996 GASKET $68.13 To Order
Photo Part No Description Price (each) Stock
675001997 RING NUT $20.63 To Order
Photo Part No Description Price (each) Stock
675001492 INSPECTION COVER $26.06 To Order
Photo Part No Description Price (each) Stock
675000680 SCREW $1.06 To Order
Photo Part No Description Price (each) Stock
675001766 BLOCK $0.83 To Order
Photo Part No Description Price (each) Stock
670217133 UNDERFLOOR FUEL PIPES $107.54 To Order
Photo Part No Description Price (each) Stock
670156529 FRONT UNDERFLOOR FUEL PIPES $69.44 To Order
Photo Part No Description Price (each) Stock
675002218 FUEL DELIVERY TUBE $83.34 To Order
Photo Part No Description Price (each) Stock
675000999 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
675001759 BRACKET $15.69 To Order
675001630 BRACKET $20.74 To Order
Photo Part No Description Price (each) Stock
675001574 BRACKET $4.51 To Order
Photo Part No Description Price (each) Stock
675001876 FUEL PUMP ELECTRIC CONTROL UNIT $125.48 To Order
Photo Part No Description Price (each) Stock
675001835 CLIP $2.87 To Order
Photo Part No Description Price (each) Stock
675001815 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
675001539 SCREW $0.98 To Order
Photo Part No Description Price (each) Stock
675001747 GASKET $2.45 To Order
Photo Part No Description Price (each) Stock
670173914 CLIP $8.58 To Order

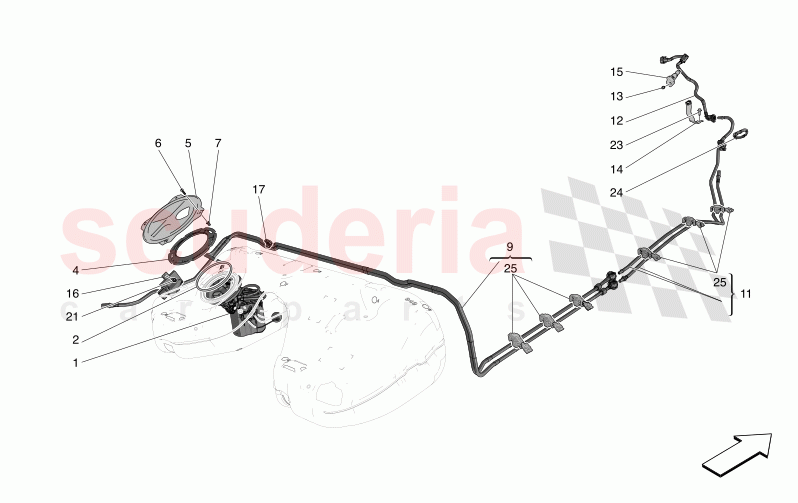

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675002220
FUEL PUMP 		$343.85 1
TO
2 675001996
GASKET 		$68.13 1
TO
4 675001997
RING NUT 		$20.63 1
TO
5 675001492
INSPECTION COVER 		$26.06 1
TO
6 675000680
SCREW 		$1.06 1
TO
7 675001766
BLOCK 		$0.83 1
TO
9 670217133
UNDERFLOOR FUEL PIPES 		$107.54 1
TO
11 670156529
FRONT UNDERFLOOR FUEL PIPES 		$69.44 1
TO
12 675002218
FUEL DELIVERY TUBE 		$83.34 1
TO
13 675000999
SCREW 		$0.77 1
TO
14 675001759
BRACKET
EU CN US JP ME KO N0; 		$15.69 1
TO
14 675001630
BRACKET
AU UK JRH IN N8; 		$20.74 1
TO
15 675001574
BRACKET 		$4.51 1
TO
16 675001876
FUEL PUMP ELECTRIC CONTROL UNIT 		$125.48 1
TO
17 675001835
CLIP 		$2.87 1
TO
21 675001815
SCREW 		$1.30 1
TO
23 675001539
SCREW 		$0.98 1
TO
24 675001747
GASKET 		$2.45 1
TO
25 670173914
CLIP 		$8.58 6
TO
