Fuel Pumps And Connection Lines

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670054363 HIGH PRESSURE FUEL PIPE WITH INJECTORS $955.97 To Order
Photo Part No Description Price (each) Stock
670053155 BRACKET $35.35 To Order
Photo Part No Description Price (each) Stock
670053443 SCREW $4.39 To Order
Photo Part No Description Price (each) Stock
670053175 RH LOW PRESSURE FUEL PIPE $358.08 To Order
Photo Part No Description Price (each) Stock
670053176 LH LOW PRESSURE FUEL PIPE $360.28 To Order
Photo Part No Description Price (each) Stock
670052434 INJECTOR ASSEMBLY $74.28 To Order
Photo Part No Description Price (each) Stock
670052698 CLIP $15.20 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670053148 SUPPORT BRACKET $12.30 To Order
Photo Part No Description Price (each) Stock
675001412 BRACKET WITH SHEATH $3.46 To Order
Photo Part No Description Price (each) Stock
670051108 SCREW $2.54 To Order
Photo Part No Description Price (each) Stock
670053151 FUEL PUMP $525.62 To Order
Photo Part No Description Price (each) Stock
670052831 BOWL $35.11 To Order
Photo Part No Description Price (each) Stock
670051106 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670054369 LOW PRESSURE FUEL CONNECTION PIPE $70.42 To Order
Photo Part No Description Price (each) Stock
670053160 LOW PRESSURE FUEL PIPE $225.58 To Order
Photo Part No Description Price (each) Stock
670053355 RH LOW PRESSURE FUEL PIPE $39.86 To Order
Photo Part No Description Price (each) Stock
670054148 LH LOW PRESSURE FUEL PIPE $37.99 To Order
Photo Part No Description Price (each) Stock
670051450 SCREW $2.87 To Order
Photo Part No Description Price (each) Stock
670053153 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $53.11 To Order
Photo Part No Description Price (each) Stock
670053369 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $53.11 To Order
Photo Part No Description Price (each) Stock
670052629 PRESSURE SENSOR $107.41 To Order
Photo Part No Description Price (each) Stock
670054212 PLUG $21.24 To Order
Photo Part No Description Price (each) Stock
673015364 UPPER GASKET $16.28 To Order
Photo Part No Description Price (each) Stock
673015365 LOWER GASKET $6.64 To Order
Photo Part No Description Price (each) Stock
670054336 CABLE $26.16 To Order

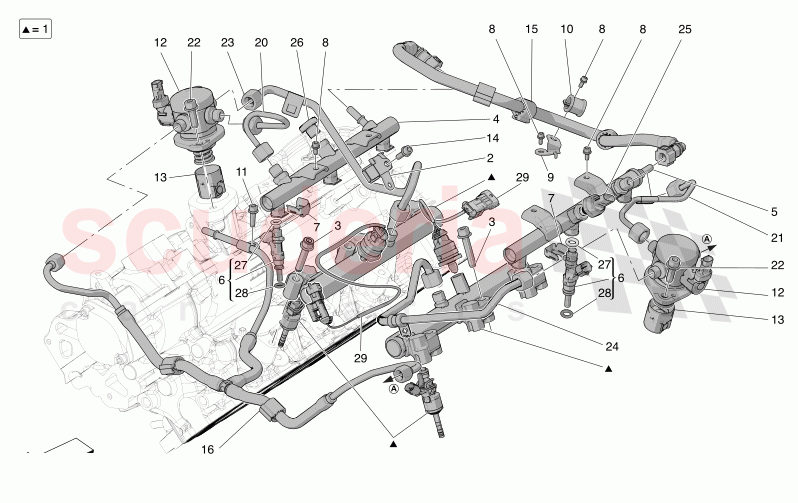

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670054363
HIGH PRESSURE FUEL PIPE WITH INJECTORS 		$955.97 2
TO
2 670053155
BRACKET 		$35.35 1
TO
3 670053443
SCREW 		$4.39 6
TO
4 670053175
RH LOW PRESSURE FUEL PIPE 		$358.08 1
TO
5 670053176
LH LOW PRESSURE FUEL PIPE 		$360.28 1
TO
6 670052434
INJECTOR ASSEMBLY 		$74.28 6
TO
7 670052698
CLIP 		$15.20 6
TO
8 670051104
SCREW 		$2.47 7
TO
9 670053148
SUPPORT BRACKET 		$12.30 1
TO
10 675001412
BRACKET WITH SHEATH 		$3.46 1
TO
11 670051108
SCREW 		$2.54 1
TO
12 670053151
FUEL PUMP 		$525.62 2
TO
13 670052831
BOWL 		$35.11 2
TO
14 670051106
SCREW 		$2.47 1
TO
15 670054369
LOW PRESSURE FUEL CONNECTION PIPE 		$70.42 1
TO
16 670053160
LOW PRESSURE FUEL PIPE 		$225.58 1
TO
20 670053355
RH LOW PRESSURE FUEL PIPE 		$39.86 1
TO
21 670054148
LH LOW PRESSURE FUEL PIPE 		$37.99 1
TO
22 670051450
SCREW 		$2.87 4
TO
23 670053153
RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE 		$53.11 1
TO
24 670053369
LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE 		$53.11 1
TO
25 670052629
PRESSURE SENSOR 		$107.41 1
TO
26 670054212
PLUG 		$21.24 1
TO
27 673015364
UPPER GASKET 		$16.28 6
TO
28 673015365
LOWER GASKET 		$6.64 6
TO
29 670054336
CABLE 		$26.16 2
TO
