Cooling: Air Radiators And Ducts

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - COOLING: AIR RADIATORS AND DUCTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001944 WATER RADIATOR $707.39 To Order
Photo Part No Description Price (each) Stock
675002060 LH BRACKET FOR UPPER FIXING WATER RADIATOR $37.99 To Order
Photo Part No Description Price (each) Stock
675002059 RH BRACKET FOR UPPER FIXING WATER RADIATOR $37.99 To Order
Photo Part No Description Price (each) Stock
675001933 SCREW $1.63 To Order
Photo Part No Description Price (each) Stock
675002068 LOWER COVER $57.29 To Order
Photo Part No Description Price (each) Stock
675002069 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
675001945 SECONDARY WATER RADIATOR $540.95 To Order
Photo Part No Description Price (each) Stock
670156442 CPL AIR SHUTTER $165.34 To Order
Photo Part No Description Price (each) Stock
675001981 OIL RADIATOR $351.50 To Order
Photo Part No Description Price (each) Stock
675001567 LH BRACKET $28.23 To Order
675001566 RH BRACKET $27.99 To Order
Photo Part No Description Price (each) Stock
675000969 NUT $1.09 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.36 To Order
Photo Part No Description Price (each) Stock
675001053 SCREW $1.74 To Order
Photo Part No Description Price (each) Stock
675001119 SCREW $0.88 To Order
Photo Part No Description Price (each) Stock
675001449 A.C CONDENSER $686.59 To Order
Photo Part No Description Price (each) Stock
675001040 PLATE $1.36 To Order
Photo Part No Description Price (each) Stock
675001213 FAN $1,210.04 To Order
Photo Part No Description Price (each) Stock
675002111 RH BRACKET $44.75 To Order
Photo Part No Description Price (each) Stock
675002112 LH BRACKET $48.97 To Order
Photo Part No Description Price (each) Stock
675001912 PLUG $4.16 To Order
Photo Part No Description Price (each) Stock
675002067 STUD $11.81 To Order
Photo Part No Description Price (each) Stock
675001924 COLLAR $1.59 To Order

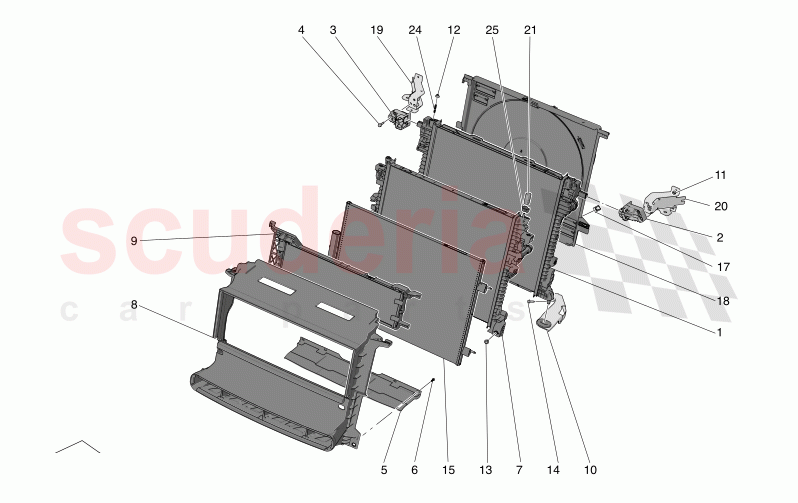

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001944
WATER RADIATOR 		$707.39 1
TO
2 675002060
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		$37.99 1
TO
3 675002059
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		$37.99 1
TO
4 675001933
SCREW 		$1.63 4
TO
5 675002068
LOWER COVER 		$57.29 1
TO
6 675002069
SCREW 		$0.77 1
TO
7 675001945
SECONDARY WATER RADIATOR 		$540.95 1
TO
8 670156442
CPL AIR SHUTTER 		$165.34 1
TO
9 675001981
OIL RADIATOR 		$351.50 1
TO
10 675001567
LH BRACKET 		$28.23 1
TO
10 675001566
RH BRACKET 		$27.99 1
TO
11 675000969
NUT 		$1.09 6
TO
12 675001063
NUT 		$1.36 2
TO
13 675001053
SCREW 		$1.74 2
TO
14 675001119
SCREW 		$0.88 4
TO
15 675001449
A.C CONDENSER 		$686.59 1
TO
17 675001040
PLATE 		$1.36 1
TO
18 675001213
FAN 		$1,210.04 1
TO
19 675002111
RH BRACKET 		$44.75 1
TO
20 675002112
LH BRACKET 		$48.97 1
TO
21 675001912
PLUG 		$4.16 1
TO
24 675002067
STUD 		$11.81 2
TO
25 675001924
COLLAR 		$1.59 1
TO
