High-Voltage Battery Individual Parts

Bentley New Flying Spur (2020-2024)

Find Your Part

Bentley New Flying Spur (2020-2024) - High-voltage battery Individual parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
971915411 cover for battery High-voltage battery $973.77 To Order
Photo Part No Description Price (each) Stock
4M0915434 Seal cover for battery $54.17 To Order
Photo Part No Description Price (each) Stock
WHT008096 Flat head bolt with hexagon socket head, thread forming $2.95 To Order
Photo Part No Description Price (each) Stock
12E010849G Notice Recycling $17.18 To Order
Photo Part No Description Price (each) Stock
12E010001G Notice Warning sign 'Danger: High voltage' $7.05 To Order
Photo Part No Description Price (each) Stock
12E010006AC Warning sign High-voltage battery $16.85 To Order
Photo Part No Description Price (each) Stock
4M0915591P Cell module $2,355.92 To Order
Photo Part No Description Price (each) Stock
4M0915591N Cell module $2,355.92 To Order
Photo Part No Description Price (each) Stock
4M0915902A Wire set High-voltage battery $163.53 To Order
Photo Part No Description Price (each) Stock
971915477AY end piece Battery module $10.20 To Order
Photo Part No Description Price (each) Stock
4M0915471A Cooling unit for hybrid battery $700.87 To Order
Photo Part No Description Price (each) Stock
WHT008096 Flat head bolt with hexagon socket head, thread forming $2.95 To Order
Photo Part No Description Price (each) Stock
4M0915641 push-on connector Contains: Connecting pipe O-ring $40.03 To Order
Photo Part No Description Price (each) Stock
4M0915474A Thermal pad for cooling unit $95.79 To Order
Photo Part No Description Price (each) Stock
4M0915629 Support Battery case upper section $52.60 To Order
Photo Part No Description Price (each) Stock
4M0998182C 1 set securing bolts Battery module contents of package: $18.05 To Order
Photo Part No Description Price (each) Stock
4M0998105 1 set fixing parts for the cooling unit for the hybrid battery contents of package: $44.02 To Order
Photo Part No Description Price (each) Stock
4M0915161 Module connector $161.85 To Order
Photo Part No Description Price (each) Stock
4M0915161A Module connector $161.85 To Order
Photo Part No Description Price (each) Stock
N01508216 Hexagon flange nut with: flange $1.27 To Order
Photo Part No Description Price (each) Stock
4M0915151 Cover $37.20 To Order
Photo Part No Description Price (each) Stock
971915152Y breather assy. Cover cap $12.66 To Order
Photo Part No Description Price (each) Stock
4M0915161B Module connector $171.05 To Order
Photo Part No Description Price (each) Stock
WHT008251 flat round head bolt $1.86 To Order

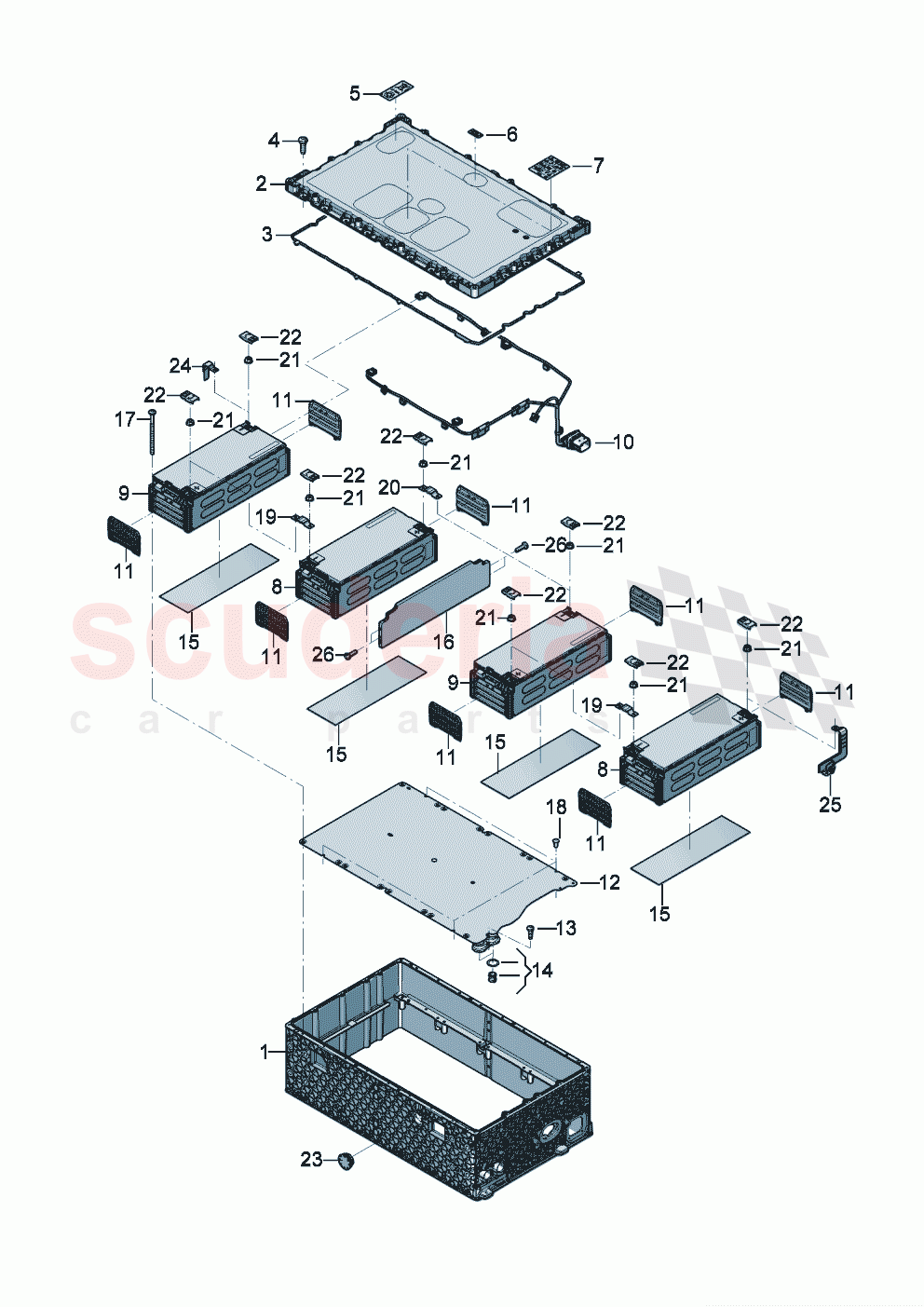

High-voltage battery Individual parts of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 971915411
cover for battery High-voltage battery
upper 		$973.77 1
TO
3 4M0915434
Seal cover for battery
upper 		$54.17 1
TO

WHT008096

FLAT HEAD BOLT WITH HEXAGON SOCKET HEAD, THREAD FORMING

from $2.95

5 12E010849G
Notice Recycling 		$17.18 1
TO
6 12E010001G
Notice Warning sign 'Danger: High voltage' 		$7.05 1
TO
7 12E010006AC
Warning sign High-voltage battery 		$16.85 1
TO
8 4M0915591P
Cell module
upper 		$2,355.92 2
TO
9 4M0915591N
Cell module
upper 		$2,355.92 2
TO
10 4M0915902A
Wire set High-voltage battery
inner upper 		$163.53 1
TO
11 971915477AY
end piece Battery module
upper 		$10.20 8
TO
12 4M0915471A
Cooling unit for hybrid battery
upper 		$700.87 1
TO
14 4M0915641
push-on connector Contains: Connecting pipe O-ring
lower 1 pc 1 pc 		$40.03 2
TO
15 4M0915474A
Thermal pad for cooling unit 		$95.79 4
TO
16 4M0915629
Support Battery case upper section
upper centre 		$52.60 1
TO
17 4M0998182C
1 set securing bolts Battery module contents of package:
4 		$18.05 4
TO
18 4M0998105
1 set fixing parts for the cooling unit for the hybrid battery contents of package:
5 		$44.02 1
TO
19 4M0915161
Module connector
short 		$161.85 2
TO
20 4M0915161A
Module connector
long 		$161.85 1
TO
21 N01508216
Hexagon flange nut with: flange 		$1.27 8
TO
22 4M0915151
Cover 		$37.20 8
TO
23 971915152Y
breather assy. Cover cap 		$12.66 1
TO
25 4M0915161B
Module connector 		$171.05 1
TO
26 WHT008251
flat round head bolt
M6X20 		$1.86 4
TO
