Bentley New Flying Spur (2020-2024) - High-voltage battery Battery housing lower section Individual parts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
971915229B housing High-voltage battery $1,485.21 To Order
Photo Part No Description Price (each) Stock
971915309Y base plate $100.11 To Order
Photo Part No Description Price (each) Stock
4M0915434A Seal base plate $54.17 To Order
Photo Part No Description Price (each) Stock
WHT008096 Flat head bolt with hexagon socket head, thread forming $2.95 To Order
Photo Part No Description Price (each) Stock
4M0915591P Cell module $2,355.92 To Order
Photo Part No Description Price (each) Stock
4M0915591N Cell module $2,355.92 To Order
Photo Part No Description Price (each) Stock
4M0998182C 1 set securing bolts Battery module contents of package: $18.05 To Order
Photo Part No Description Price (each) Stock
971915477Y end piece Battery module $9.32 To Order
Photo Part No Description Price (each) Stock
971 915 257 Y Control line Wire set Enquire To Order
Photo Part No Description Price (each) Stock
4M0915162 Connection point $135.06 To Order
Photo Part No Description Price (each) Stock
4M0915474A Thermal pad for cooling unit $95.79 To Order
Photo Part No Description Price (each) Stock
4M0915471 Cooling unit for hybrid battery $700.87 To Order
Photo Part No Description Price (each) Stock
4M0915641 push-on connector Contains: Connecting pipe O-ring $40.03 To Order
Photo Part No Description Price (each) Stock
4M0915629A Reinforcement Contains: Sealing strip (self-adhesive) $52.60 To Order
Photo Part No Description Price (each) Stock
WHT008096 Flat head bolt with hexagon socket head, thread forming $2.95 To Order
Photo Part No Description Price (each) Stock
WHT008251 flat round head bolt $1.86 To Order
Photo Part No Description Price (each) Stock
4M0915151A Cover $19.62 To Order
Photo Part No Description Price (each) Stock
N10602101 Hexagon socket flat head bolt $0.68 To Order
Photo Part No Description Price (each) Stock
4M0915161 Module connector $161.85 To Order
Photo Part No Description Price (each) Stock
4M0915161A Module connector $161.85 To Order
Photo Part No Description Price (each) Stock
N01508216 Hexagon flange nut with: flange $1.27 To Order
Photo Part No Description Price (each) Stock
4M0915151 Cover $37.20 To Order
Photo Part No Description Price (each) Stock
4M0998161 repair set Module connector $176.67 To Order
Photo Part No Description Price (each) Stock
4M0915521 Protective cap $60.90 To Order
Photo Part No Description Price (each) Stock
4M0998587A Sundry parts set interface $18.83 To Order
Photo Part No Description Price (each) Stock
4M0915481 Coolant connection High-voltage battery Return hose $69.87 To Order
Photo Part No Description Price (each) Stock
N10714801 Oval hexagon socket head bolt $0.98 To Order
Photo Part No Description Price (each) Stock
079919525N TEMPERATURE SENSOR $65.06 To Order
Photo Part No Description Price (each) Stock
WHT 002 287 B O-ring $2.84 IN STOCK
Photo Part No Description Price (each) Stock
N 107 214 01 oval hd. self-tapp fitt. screw $0.59 IN STOCK
Photo Part No Description Price (each) Stock
N90737804 Socket head bolt with inner multipoint head $0.79 To Order
Photo Part No Description Price (each) Stock
WHT008096 Flat head bolt with hexagon socket head, thread forming $2.95 To Order
Photo Part No Description Price (each) Stock
12E010001G Notice Warning sign 'Danger: High voltage' $7.05 To Order

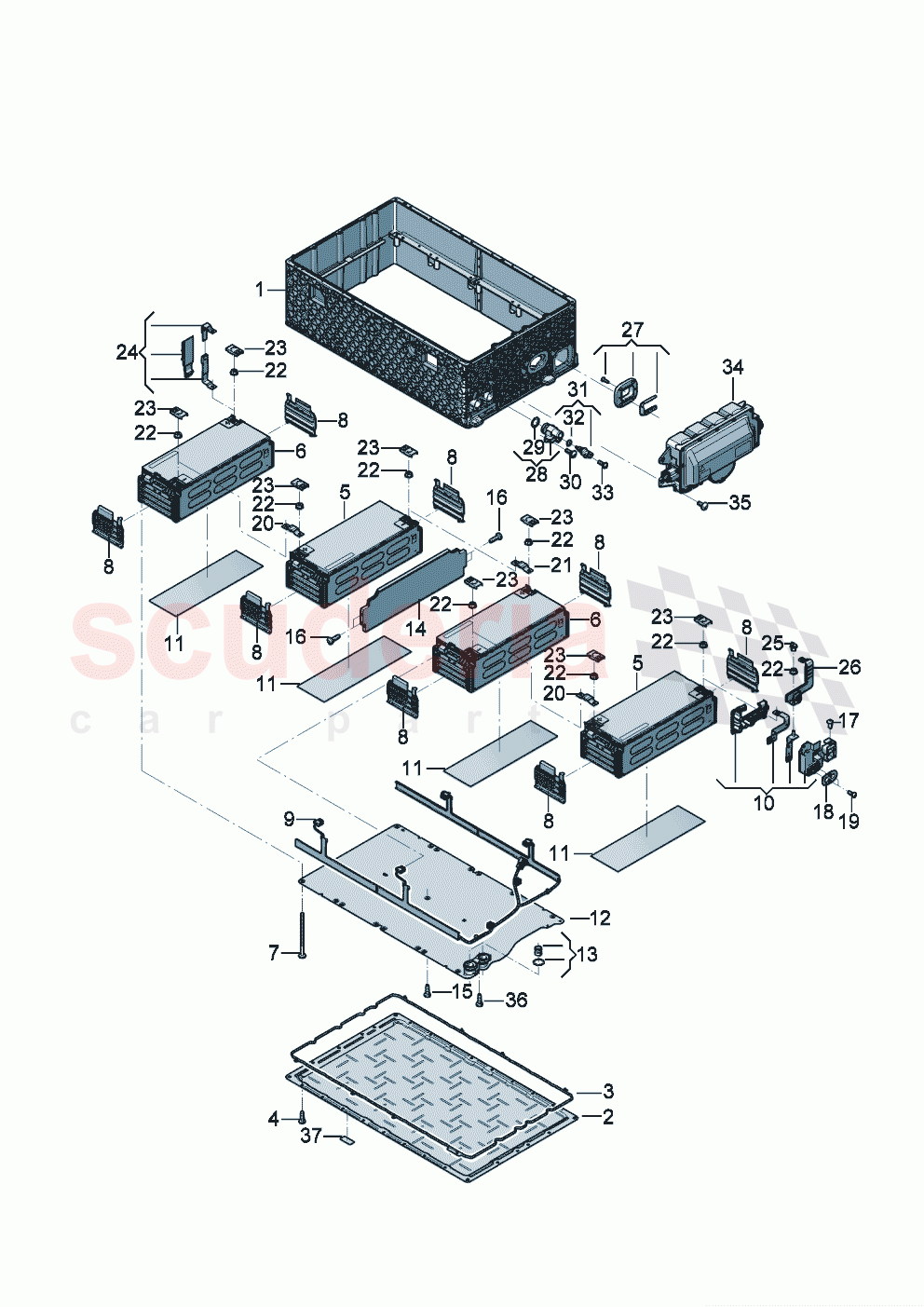

High-voltage battery Battery housing lower section Individual parts of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 971915229B
housing High-voltage battery 		$1,485.21 1
TO
2 971915309Y
base plate 		$100.11 1
TO
3 4M0915434A
Seal base plate 		$54.17 1
TO

WHT008096

FLAT HEAD BOLT WITH HEXAGON SOCKET HEAD, THREAD FORMING

from $2.95

5 4M0915591P
Cell module
lower 		$2,355.92 2
TO
6 4M0915591N
Cell module
lower 		$2,355.92 2
TO
7 4M0998182C
1 set securing bolts Battery module contents of package:
4 pcs 		$18.05 4
TO
8 971915477Y
end piece Battery module
lower 		$9.32 8
TO
9 971 915 257 Y
Control line Wire set
inner lower 		- 1
PE
 Enquire
10 4M0915162
Connection point 		$135.06 1
TO
11 4M0915474A
Thermal pad for cooling unit 		$95.79 4
TO
12 4M0915471
Cooling unit for hybrid battery
lower 		$700.87 1
TO
13 4M0915641
push-on connector Contains: Connecting pipe O-ring
lower 1 pc 1 pc 		$40.03 2
TO
14 4M0915629A
Reinforcement Contains: Sealing strip (self-adhesive)
lower centre 		$52.60 1
TO
16 WHT008251
flat round head bolt
M6X20 		$1.86 4
TO
18 4M0915151A
Cover
outer 		$19.62 1
TO
19 N10602101
Hexagon socket flat head bolt
4X10 		$0.68 2
TO
20 4M0915161
Module connector
short 		$161.85 2
TO
21 4M0915161A
Module connector
long 		$161.85 1
TO
22 N01508216
Hexagon flange nut with: flange 		$1.27 9
TO
23 4M0915151
Cover 		$37.20 8
TO
24 4M0998161
repair set Module connector 		$176.67 1
TO
25 4M0915521
Protective cap 		$60.90 1
TO
27 4M0998587A
Sundry parts set interface 		$18.83 1
TO
28 4M0915481
Coolant connection High-voltage battery Return hose 		$69.87 1
TO
30 N10714801
Oval hexagon socket head bolt
M6X16 		$0.98 1
TO
31 079919525N
TEMPERATURE SENSOR 		$65.06 1
TO
32 WHT 002 287 B
O-ring
5,6X2
IN STOCK 		$2.84 1
IN
33 N 107 214 01
oval hd. self-tapp fitt. screw
6X16
IN STOCK 		$0.59 1
IN
35 N90737804
Socket head bolt with inner multipoint head
M6X14.0 		$0.79 5
TO
37 12E010001G
Notice Warning sign 'Danger: High voltage' 		$7.05 1
TO
