Name: High-voltage battery D - 08.11.2021>>
Rating: 4.1 (1 reviews)

Diagram
INFO

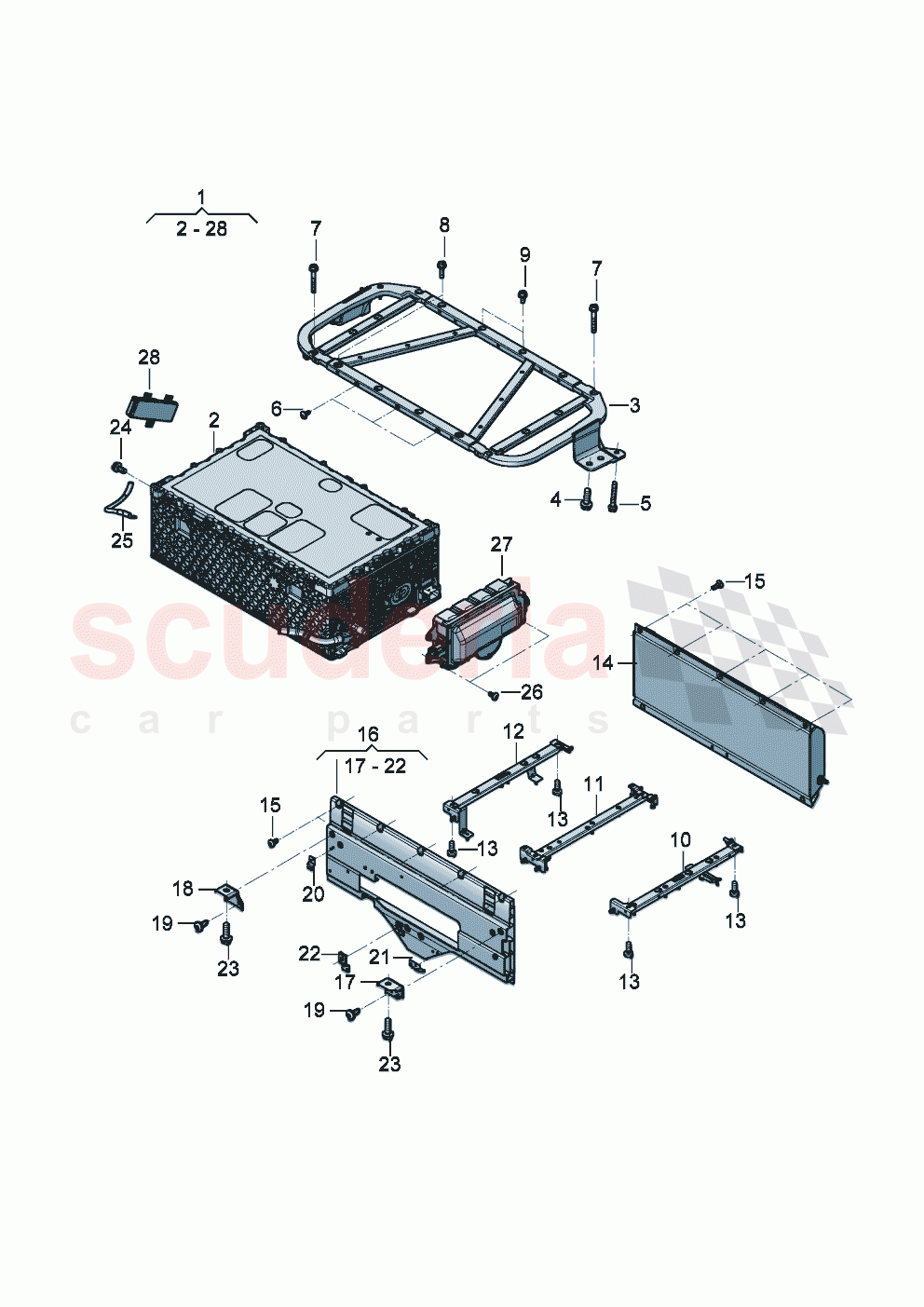

High-voltage battery D - 08.11.2021>> of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - High-voltage battery D - 08.11.2021>>

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971915099F	Battery	$27,785.32	To Order
	971915099G	Battery	$27,785.32	To Order

Photo	Part No	Description	Price (each)	Stock
	971804918B	Console High-voltage battery	$651.78	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 511 01	hexagon head bolt (combi)	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	N10695701	Hex collared bolt	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N 909 203 01	rivetted cap nut Included in position:	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	N10831701	Screw with int. serrations	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 572 02	Socket head collared bolt with inner multipoint head	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	N10717001	Socket head bolt with inner multipoint head	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	971802245A	Console High-voltage battery contains:	$135.06	To Order

Photo	Part No	Description	Price (each)	Stock
	971803454	Console High-voltage battery contains:	$127.21	To Order

Photo	Part No	Description	Price (each)	Stock
	971802246A	Console High-voltage battery contains:	$135.06	To Order

Photo	Part No	Description	Price (each)	Stock
	N 910 211 02	Flat head multi-point socket bolt	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	971804835	Pressure accumulator Console	$259.13	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	971804264C	Reinforcement High-voltage battery	$486.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N91235101	Oval head locating bolt with multi-point socket head	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 511 01	hexagon head bolt (combi)	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	N10717001	Socket head bolt with inner multipoint head	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	971971235C	Earth line High-voltage battery	$67.12	To Order

Photo	Part No	Description	Price (each)	Stock
	N90737804	Socket head bolt with inner multipoint head	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0915254AD	relay plate High-voltage battery	$3,871.57	To Order
	4M0915254AE	relay plate High-voltage battery	$3,871.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4M4915233K	Control unit for battery monitoring	$400.49	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	971915099F	Battery	971915099F Battery ROW	$27,785.32	1	TO
	1	971915099G	Battery	971915099G Battery China	$27,785.32	1	TO
	3	971804918B	Console High-voltage battery	971804918B Console High-voltage battery upper	$651.78	1	TO
	N 911 511 01		HEXAGON HEAD BOLT (COMBI)	from $3.93
4 hexagon head bolt (combi) $3.93 4 TO 23 hexagon head bolt (combi) $3.93 2 TO
	5	N10695701	Hex collared bolt	N10695701 Hex collared bolt M8X65	$2.45	2	TO
	6	N 909 203 01	rivetted cap nut Included in position:	N 909 203 01 rivetted cap nut Included in position: M6/0,5-3 3	$1.27	6	TO
	7	N10831701	Screw with int. serrations	N10831701 Screw with int. serrations M8X60	$2.45	4	TO
	8	N 911 572 02	Socket head collared bolt with inner multipoint head	N 911 572 02 Socket head collared bolt with inner multipoint head M8X30	$2.33	4	TO
	N10717001		SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	from $2.16
9 Socket head bolt with inner multipoint head $2.16 8 TO 24 Socket head bolt with inner multipoint head $2.16 1 TO
	10	971802245A	Console High-voltage battery contains:	971802245A Console High-voltage battery contains: lower left N 911 010 01	$135.06	12	TO
	11	971803454	Console High-voltage battery contains:	971803454 Console High-voltage battery contains: lower center N 911 010 01	$127.21	14	TO
	12	971802246A	Console High-voltage battery contains:	971802246A Console High-voltage battery contains: lower right N 911 010 01	$135.06	12	TO
	13	N 910 211 02	Flat head multi-point socket bolt	N 910 211 02 Flat head multi-point socket bolt M8X25	$1.38	4	TO
	14	971804835	Pressure accumulator Console	971804835 Pressure accumulator Console	$259.13	1	TO
	15	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16	$0.98	18	TO
	16	971804264C	Reinforcement High-voltage battery	971804264C Reinforcement High-voltage battery Front	$486.88	1	TO
	19	N91235101	Oval head locating bolt with multi-point socket head	N91235101 Oval head locating bolt with multi-point socket head M8X20	$1.86	4	TO
	25	971971235C	Earth line High-voltage battery	971971235C Earth line High-voltage battery	$67.12	1	TO
	26	N90737804	Socket head bolt with inner multipoint head	N90737804 Socket head bolt with inner multipoint head M6X14.0	$0.79	5	TO
	27	4M0915254AD	relay plate High-voltage battery	4M0915254AD relay plate High-voltage battery PR:B0A,B0E, B0L,B0M,B0R, B0T,B2H	$3,871.57	1	TO
	27	4M0915254AE	relay plate High-voltage battery	4M0915254AE relay plate High-voltage battery China ,PR:B1P	$3,871.57	1	TO
	28	4M4915233K	Control unit for battery monitoring	4M4915233K Control unit for battery monitoring	$400.49	1	TO

High-Voltage Battery D - 08.11.2021>>

Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - High-voltage battery D - 08.11.2021>>
