Name: wiring harness for battery + and alternator
Rating: 4.0 (1 reviews)

Diagram
INFO

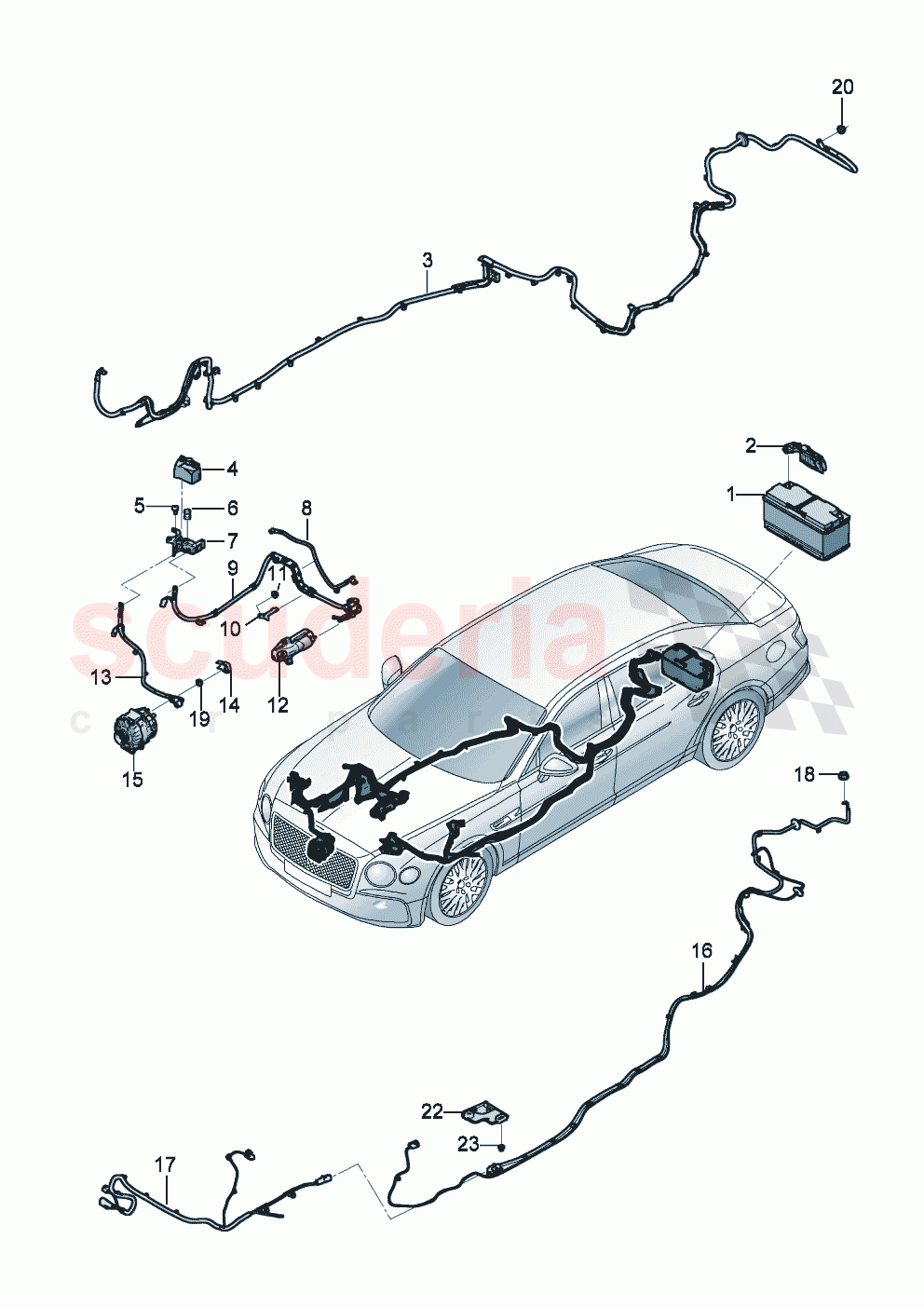

wiring harness for battery + and alternator of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - wiring harness for battery + and alternator

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971915459	Central protection contains:	$655.22	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE971227Q	Wiring set for battery + D - 08.11.2021>>	$750.93	To Order
	3SE971227Q	Wiring set for battery + D - 08.11.2021>>	$750.93	To Order
	3SE971227Q	Wiring set for battery + D - 08.11.2021>>	$750.93	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SD915405B	Battery pos. terminal cover D - 17.02.2020>>	$32.24	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA972501	Slave start socket	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA911020C	Support bracket Slave start socket D >> - 22.10.2023	$133.97	To Order
	3SE911020	Support bracket Slave start socket D - 23.10.2023>> - 25.03.2024	$133.97	To Order
	3SE911020A	Support bracket Slave start socket	$133.97	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA971537A	Earthing strap	$79.50	To Order
	971971537A	Earth line	$88.33	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA971245C	Wiring set for starter D - 15.07.2019>>	$441.72	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA903121	bracket for retaining cable	$11.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA971255D	Cable Alternator D - 29.01.2018>>	$116.30	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE 971 311 H	Wiring set for electro- mechanical power steering	Enquire	To Order
	3SE 971 311 J	Wiring set for electro- mechanical power steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3SB971111D	Wiring set for electro- mechanical power steering D - 14.05.2018>>	$102.07	To Order
	3SC971111E	Wiring set for electro- mechanical power steering D - 18.03.2019>>	$116.21	To Order

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 907 611 03	Hexagon collar nut self-locking	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	N 907 611 03	Hexagon collar nut self-locking	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA971262	bracket for connector housing	$23.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N91018901	Hexagon plastic collar nut	$1.18	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	2	971915459	Central protection contains:	971915459 Central protection contains: CONTAINS: 2/ 125A 3/80A 4/300A ,PR:1TA	$655.22	1	TO
	3SE971227Q		WIRING SET FOR BATTERY + D - 08.11.2021>>	from $750.93
3 Wiring set for battery + D - 08.11.2021>> $750.93 1 TO 3 Wiring set for battery + D - 08.11.2021>> $750.93 1 TO 3 Wiring set for battery + D - 08.11.2021>> $750.93 1 TO
	3	3SE971227AA	Wiring set for battery + D - 08.11.2021>>	3SE971227AA Wiring set for battery + D - 08.11.2021>> PR:T1M+0K0	$750.93	1	TO
	4	3SD915405B	Battery pos. terminal cover D - 17.02.2020>>	3SD915405B Battery pos. terminal cover D - 17.02.2020>> Engine bay	$32.24	1	TO
	5	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16	$0.98	2	TO
	6	3SA972501	Slave start socket	3SA972501 Slave start socket	$7.50	1	TO
	7	3SA911020C	Support bracket Slave start socket D >> - 22.10.2023	3SA911020C Support bracket Slave start socket D >> - 22.10.2023 Engine bay	$133.97	1	TO
	7	3SE911020	Support bracket Slave start socket D - 23.10.2023>> - 25.03.2024	3SE911020 Support bracket Slave start socket D - 23.10.2023>> - 25.03.2024 Engine bay	$133.97	1	TO
	7	3SE911020A	Support bracket Slave start socket	3SE911020A Support bracket Slave start socket Engine bay	$133.97	1	TO
	8	3SA971537A	Earthing strap	3SA971537A Earthing strap PR:T0Q	$79.50	1	TO
	8	971971537A	Earth line	971971537A Earth line PR-T1M	$88.33	1	TO
	9	3SA971245C	Wiring set for starter D - 15.07.2019>>	3SA971245C Wiring set for starter D - 15.07.2019>> PR:T0Q	$441.72	1	TO
	10	3SA903121	bracket for retaining cable	3SA903121 bracket for retaining cable PR:T0Q	$11.03	1	TO
	N90215805		SHOULDERED HEX. NUT, DISCONT./NEW ADD.+FULU CALC.	from $2.36
11 shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK $2.36 2 IN 18 shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK $2.36 1 IN
	13	3SA971255D	Cable Alternator D - 29.01.2018>>	3SA971255D Cable Alternator D - 29.01.2018>> PR:1TA	$116.30	1	TO
	16	3SE 971 311 H	Wiring set for electro- mechanical power steering	3SE 971 311 H Wiring set for electro- mechanical power steering	-	1	PE	Enquire
	16	3SE 971 311 J	Wiring set for electro- mechanical power steering	3SE 971 311 J Wiring set for electro- mechanical power steering	-	1	PE	Enquire
	17	3SB971111D	Wiring set for electro- mechanical power steering D - 14.05.2018>>	3SB971111D Wiring set for electro- mechanical power steering D - 14.05.2018>> lhd	$102.07	1	TO
	17	3SC971111E	Wiring set for electro- mechanical power steering D - 18.03.2019>>	3SC971111E Wiring set for electro- mechanical power steering D - 18.03.2019>> rhd	$116.21	1	TO
	N 907 611 03		HEXAGON COLLAR NUT SELF-LOCKING	from $1.57
19 Hexagon collar nut self-locking $1.57 1 TO 20 Hexagon collar nut self-locking $1.57 1 TO
	22	3SA971262	bracket for connector housing	3SA971262 bracket for connector housing	$23.54	1	TO
	23	N91018901	Hexagon plastic collar nut	N91018901 Hexagon plastic collar nut	$1.18	2	TO

Wiring Harness For Battery + And Alternator

Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - wiring harness for battery + and alternator
