Name: Front Wheel Liner Assembly
Rating: 4.4 (1 reviews)

Diagram
INFO

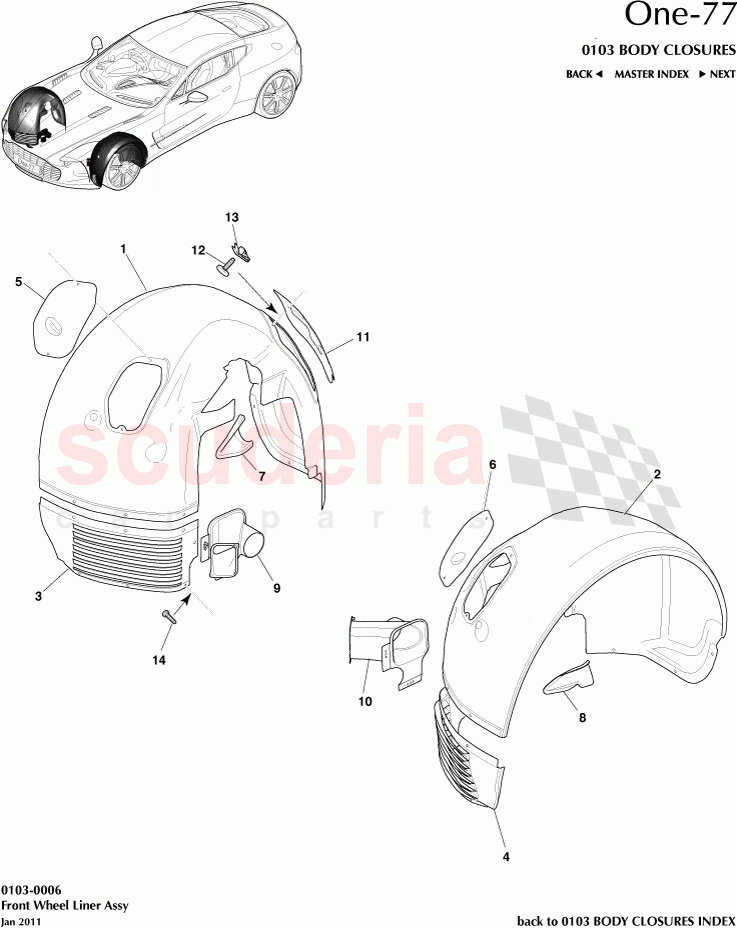

Front Wheel Liner Assembly of Aston Martin Aston Martin One-77

Aston Martin One-77 - Front Wheel Liner Assembly

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023-07-1006-AG	Liner, Front Wheel, RH	$5,498.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1004-AK	Liner, Front Wheel, LH	$5,498.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1017-AB	Louvre Panel, side radiator, RH	$4,273.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1016-AD	Louvre Panel, side radiator, LH	$4,273.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8853-AB	Hatch, headlamp access, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8852-AB	Hatch, headlamp access, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-7561-AA	Access Cover, RH	$112.98	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-7560-AA	Access Cover, LH	$112.98	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1019-AB	Duct, Brake, RH	$5,313.81	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1018-AD	Duct, Brake, LH	$5,313.81	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-07-1008-AC	Access Panel, RH wheel liner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$9.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703171	Screw, M5 x 20, Torx Pan Hd	$0.08	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	12023-07-1006-AG	Liner, Front Wheel, RH	12023-07-1006-AG Liner, Front Wheel, RH	$5,498.08	1	TO
2	12023-07-1004-AK	Liner, Front Wheel, LH	12023-07-1004-AK Liner, Front Wheel, LH	$5,498.08	1	TO
3	12023-07-1017-AB	Louvre Panel, side radiator, RH	12023-07-1017-AB Louvre Panel, side radiator, RH	$4,273.97	1	TO
4	12023-07-1016-AD	Louvre Panel, side radiator, LH	12023-07-1016-AD Louvre Panel, side radiator, LH	$4,273.97	1	TO
5	12023-03-8853-AB	Hatch, headlamp access, RH	12023-03-8853-AB Hatch, headlamp access, RH	-	1	PE	Enquire
6	12023-03-8852-AB	Hatch, headlamp access, LH	12023-03-8852-AB Hatch, headlamp access, LH	-	1	PE	Enquire
7	12023-03-7561-AA	Access Cover, RH	12023-03-7561-AA Access Cover, RH	$112.98	1	TO
8	12023-03-7560-AA	Access Cover, LH	12023-03-7560-AA Access Cover, LH	$112.98	1	TO
9	12023-07-1019-AB	Duct, Brake, RH	12023-07-1019-AB Duct, Brake, RH	$5,313.81	1	TO
10	12023-07-1018-AD	Duct, Brake, LH	12023-07-1018-AD Duct, Brake, LH	$5,313.81	1	TO
11	12023-07-1008-AC	Access Panel, RH wheel liner	12023-07-1008-AC Access Panel, RH wheel liner	-	1	PE	Enquire
12	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) 11 RH Liner, 9 LH	$20.53	20	TO
13	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G43-10609E-AA-PK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 4 RH Liner, 2 LH IN STOCK	$9.74	6	IN
14	703171	Screw, M5 x 20, Torx Pan Hd	703171 Screw, M5 x 20, Torx Pan Hd 3 per Liner	$0.08	6	TO
