Tub Aero Floor

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Tub Aero Floor

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-05-1076-AL Aero Floor, Main Tub $18,241.37 To Order
Photo Part No Description Price (each) Stock
6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) $20.53 To Order
Photo Part No Description Price (each) Stock
699736 Clip, Exhaust Heatshields $2.89 IN STOCK
Photo Part No Description Price (each) Stock
12023-03-7600-AA Duct, Clutch Cooling $279.76 To Order
Photo Part No Description Price (each) Stock
12023-03-7602-AA Seal, Clutch Cooling Duct Enquire To Order

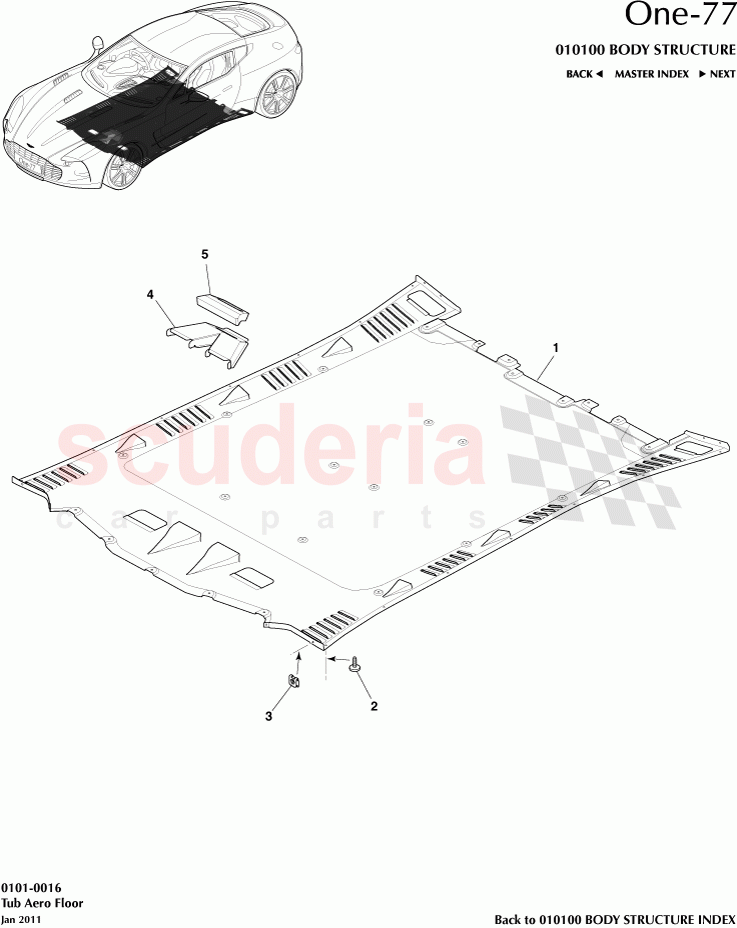

Tub Aero Floor of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023-05-1076-AL
Aero Floor, Main Tub 		$18,241.37 1
TO
2 6G33-FA0115-AB-PK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		$20.53 39
TO
3 699736
Clip, Exhaust Heatshields
IN STOCK 		$2.89 8
IN
4 12023-03-7600-AA
Duct, Clutch Cooling 		$279.76 1
TO
5 12023-03-7602-AA
Seal, Clutch Cooling Duct 		- 1
PE
 Enquire
