Front Cross Plate Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Front Cross Plate Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-04-0008-AT Bracket Assy, Cross Plate Damper, front $25,379.28 To Order
Photo Part No Description Price (each) Stock
12023-09-6074 Screw, M10 x 65 Enquire To Order
Photo Part No Description Price (each) Stock
12023-04-1116-AA Sleeve,Top Hat, ID 10 x 47 Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6114-AA Washer M10, Flat ID10.5xOD20x2.0 $1.32 To Order
Photo Part No Description Price (each) Stock
12023-09-6036-AA Nut, M10 x 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
12023-04-1048-AA Washer, upper damper mount Enquire To Order
Photo Part No Description Price (each) Stock
12023-03-7542-AA Retainer $3.80 To Order
Photo Part No Description Price (each) Stock
12023-03-7598-AA Fastener, cable $1.84 To Order

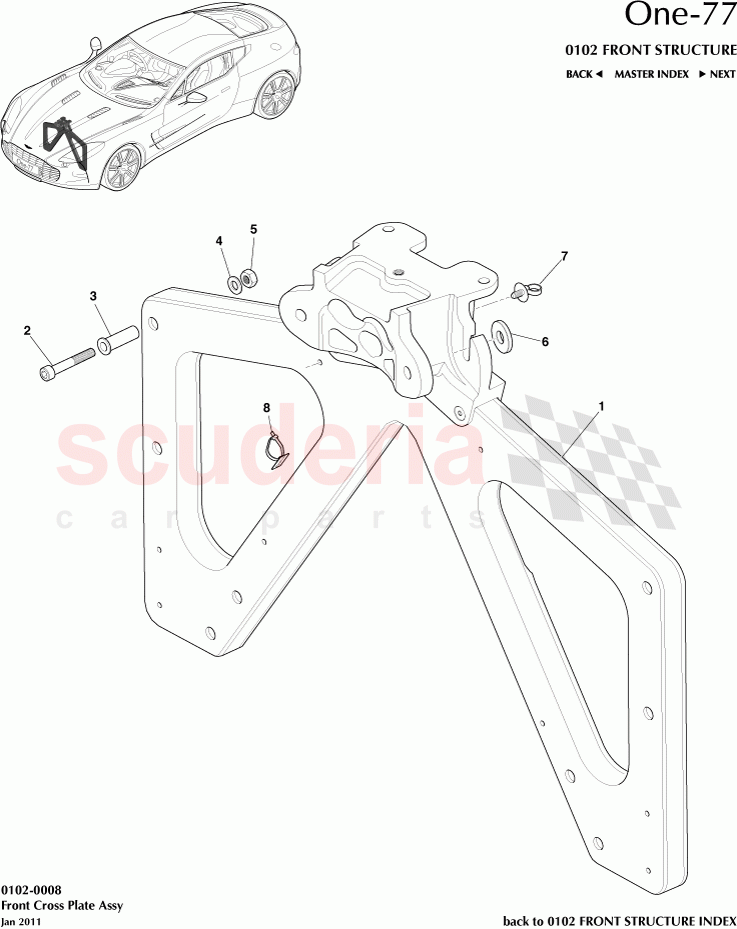

Front Cross Plate Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023-04-0008-AT
Bracket Assy, Cross Plate Damper, front 		$25,379.28 1
TO
2 12023-09-6074
Screw, M10 x 65 		- 8
PE
 Enquire
3 12023-04-1116-AA
Sleeve,Top Hat, ID 10 x 47 		- 8
PE
 Enquire
4 12023-09-6114-AA
Washer M10, Flat ID10.5xOD20x2.0 		$1.32 4
TO
5 12023-09-6036-AA
Nut, M10 x 1.5 		- 4
PE
 Enquire
6 12023-04-1048-AA
Washer, upper damper mount 		- 2
PE
 Enquire
7 12023-03-7542-AA
Retainer 		$3.80 1
TO
8 12023-03-7598-AA
Fastener, cable 		$1.84 1
TO
