Aston Martin One-77 - Rear Trunk

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-06-1360-AC Rear Trunk Bonded Assy $110,970.99 To Order
Photo Part No Description Price (each) Stock
12023-06-1022-AF Trough, Rear Lift Glass Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1378-AD Bracket A, Fuel Filler Protection Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1376-AG Bracket B, Fuel Filler Protection Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6024-AA Screw, M6 x 1.0 x 16 Hex Head Flange Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1278-AC Shim, Side, Rear Trunk Tub to Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1280-AC Shim, Centre, Rear Trunk Tub to Damper Tray Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1384-AE Trunk Tub Assy, Front RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1330-AK Trunk Tub Assy, Front LH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1233-AJ Panel. Rear Speaker, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1232-AJ Panel. Rear Speaker, LH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1340-AA Cover Assy, Fuel Tank Access RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1316-AA Seal Pad, Fuel Tank Access RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6042-AA Screw, M6-1.00 x 16 Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1276-AB Cover, Fuel Tank Access LH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1314-AB Seal Pad, Fuel Tank Access LH Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1290-AA Bracket, Upper, Trunk Tub Anchor Enquire To Order
Photo Part No Description Price (each) Stock
04113-100-035 Screw, M10 x 1.5 x 35, Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6104-AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6012-AA Screw, M8 x 1.25 x 35 Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6104-AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6086-AA Nut, M8 Hex Flanged Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1294-AA Shim, Trunk Tub Front to Main Tub B-Node Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6016-AA Screw, M10 x 1.5 x 75 Hex head Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6104-AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6052-AA Screw, M8-1.25 x 25 Flange BHCS Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-60026-AA Washer, Flat Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6086-AA Nut, M8 Hex Flanged Enquire To Order
Photo Part No Description Price (each) Stock
12023-03-7004-AB Bracket, Ride Height RH $92.05 To Order
Photo Part No Description Price (each) Stock
M1/B23-M5x12 Stud, Big Head Bonding, M5-1.0 x 12 Enquire To Order
Photo Part No Description Price (each) Stock
12023-06-1240-AD Cleat, Rear Trunk Tub, front to rear Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6024-AA Screw, M6 x 1.0 x 16 Hex Head Flange Enquire To Order
Photo Part No Description Price (each) Stock
12023-09-6084-AA Nut, M6 Enquire To Order

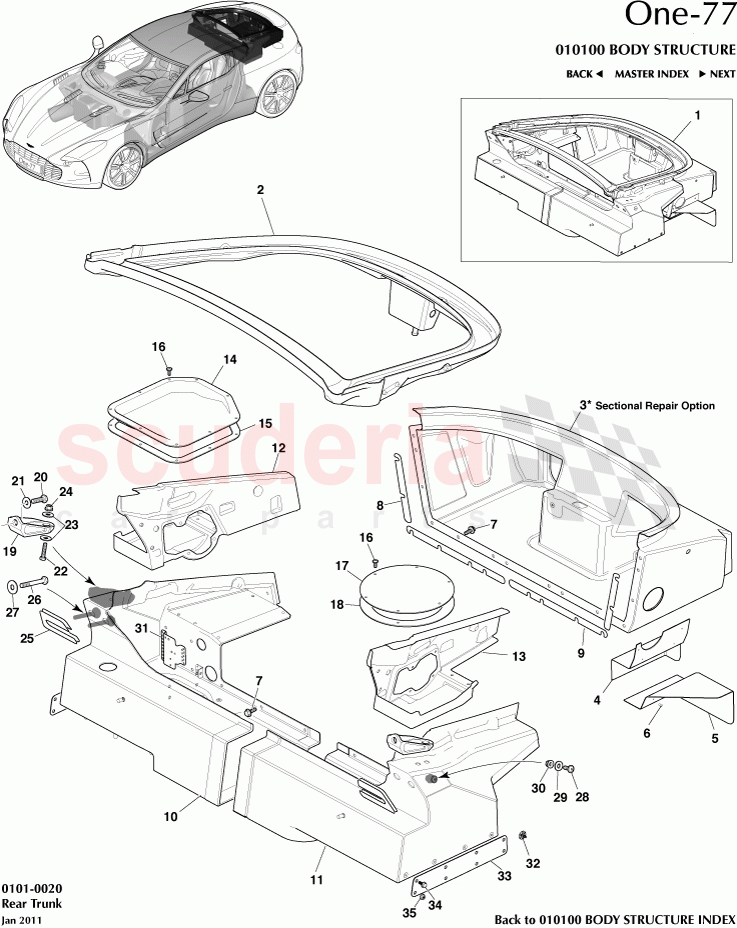

Rear Trunk of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023-06-1360-AC
Rear Trunk Bonded Assy
NSS 		$110,970.99 1
TO
2 12023-06-1022-AF
Trough, Rear Lift Glass 		- 1
PE
 Enquire
3 12023-06-1364-AB
Trunk Tub Rear Assy
NSS 		- 1
PE
 Enquire
4 12023-06-1378-AD
Bracket A, Fuel Filler Protection 		- 1
PE
 Enquire
5 12023-06-1376-AG
Bracket B, Fuel Filler Protection 		- 1
PE
 Enquire

12023-09-6024-AA

SCREW, M6 X 1.0 X 16 HEX HEAD FLANGE

 -
8 12023-06-1278-AC
Shim, Side, Rear Trunk Tub to Damper Tray 		- 2
PE
 Enquire
9 12023-06-1280-AC
Shim, Centre, Rear Trunk Tub to Damper Tray 		- 2
PE
 Enquire
10 12023-06-1384-AE
Trunk Tub Assy, Front RH 		- 1
PE
 Enquire
11 12023-06-1330-AK
Trunk Tub Assy, Front LH 		- 1
PE
 Enquire
12 12023-06-1233-AJ
Panel. Rear Speaker, RH 		- 1
PE
 Enquire
13 12023-06-1232-AJ
Panel. Rear Speaker, LH 		- 1
PE
 Enquire
14 12023-06-1340-AA
Cover Assy, Fuel Tank Access RH 		- 1
PE
 Enquire
15 12023-06-1316-AA
Seal Pad, Fuel Tank Access RH 		- 1
PE
 Enquire
16 12023-09-6042-AA
Screw, M6-1.00 x 16 Flange BHCS 		- 15
PE
 Enquire
17 12023-06-1276-AB
Cover, Fuel Tank Access LH 		- 1
PE
 Enquire
18 12023-06-1314-AB
Seal Pad, Fuel Tank Access LH 		- 1
PE
 Enquire
19 12023-06-1290-AA
Bracket, Upper, Trunk Tub Anchor 		- 2
PE
 Enquire
20 04113-100-035
Screw, M10 x 1.5 x 35, Hex Head 		- 2
PE
 Enquire

12023-09-6104-AA

WASHER, FLAT

 -
22 12023-09-6012-AA
Screw, M8 x 1.25 x 35 Hex Head 		- 4
PE
 Enquire

12023-09-6086-AA

NUT, M8 HEX FLANGED

 -
25 12023-06-1294-AA
Shim, Trunk Tub Front to Main Tub B-Node 		- A/R
PE
 Enquire
26 12023-09-6016-AA
Screw, M10 x 1.5 x 75 Hex head 		- 4
PE
 Enquire
28 12023-09-6052-AA
Screw, M8-1.25 x 25 Flange BHCS 		- 2
PE
 Enquire
29 12023-09-60026-AA
Washer, Flat 		- 2
PE
 Enquire
31 12023-03-7004-AB
Bracket, Ride Height RH 		$92.05 1
TO
32 M1/B23-M5x12
Stud, Big Head Bonding, M5-1.0 x 12 		- 39
PE
 Enquire
33 12023-06-1240-AD
Cleat, Rear Trunk Tub, front to rear 		- 2
PE
 Enquire
35 12023-09-6084-AA
Nut, M6 		- 8
PE
 Enquire
