Name: Rear Seat Assembly (Volante)
Rating: 4.4 (1 reviews)

Find Your Part

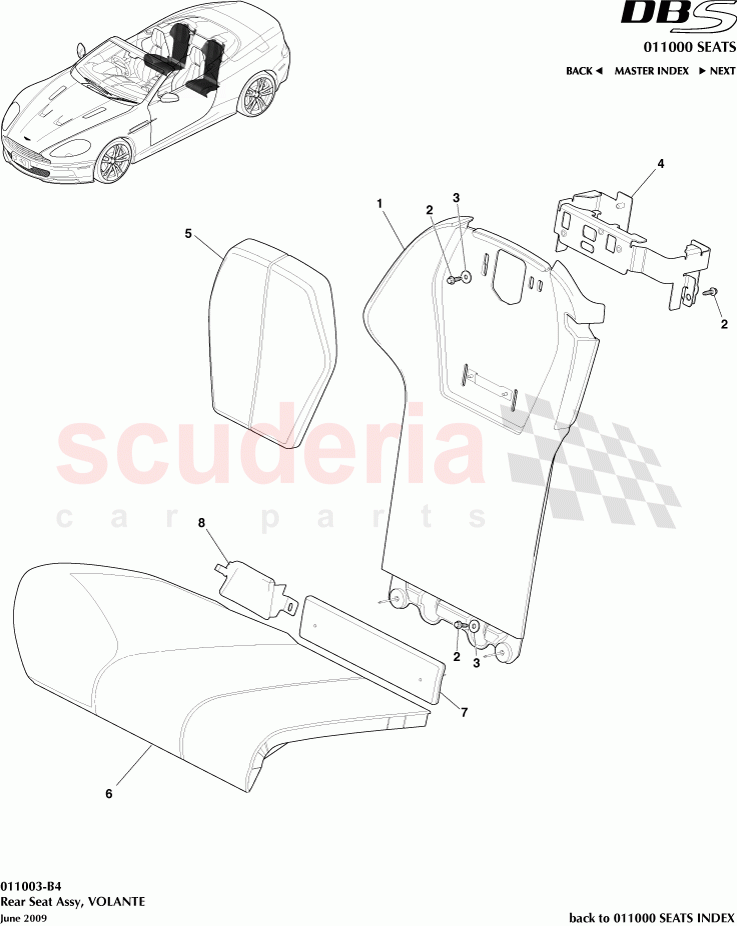

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697517-PK	WASHER-M6 LGE OD BLK PACK OF 20	$22.35	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43-L64216-AC	Bracket, Rear Squab Support, RH	Enquire	To Order
	7G43-L64217-AC	Bracket, Rear Squab Support, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33465T10ACW	Head rest infill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33-L63846-ABW	Pad Assy, Rear Cushion Lower, RH	$1,015.59	To Order
	AD33L63847ABW	Pad Assy, Rear Cushion Lower, LH	$1,015.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L672A20AAW	Panel assy, rear seat side lower, RH	Enquire	To Order
	AD33L672A21AAW	Panel assy, rear seat side lower, LH	Enquire	To Order

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	AD33L60032ACW	Back assy, rear seat trim, RH	AD33L60032ACW Back assy, rear seat trim, RH	$3,912.09	1	TO
1	AD33-L60033-ACW	LH SEAT BACK TRIMMED	AD33-L60033-ACW LH SEAT BACK TRIMMED	$3,912.09	1	TO
2	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	$0.20	6	IN
3	697517-PK	WASHER-M6 LGE OD BLK PACK OF 20	697517-PK WASHER-M6 LGE OD BLK PACK OF 20	$22.35	4	TO
4	7G43-L64216-AC	Bracket, Rear Squab Support, RH	7G43-L64216-AC Bracket, Rear Squab Support, RH	-	1	PE	Enquire
4	7G43-L64217-AC	Bracket, Rear Squab Support, LH	7G43-L64217-AC Bracket, Rear Squab Support, LH	-	1	PE	Enquire
5	AD33465T10ACW	Head rest infill	AD33465T10ACW Head rest infill	-	1	PE	Enquire
6	AD3360080ABW	Cushion assy, rear seat, RH	AD3360080ABW Cushion assy, rear seat, RH	$3,912.09	1	TO
6	AD3360081ABW	Cushion assy, rear seat, LH	AD3360081ABW Cushion assy, rear seat, LH	$3,912.09	1	TO
7	AD33-L63846-ABW	Pad Assy, Rear Cushion Lower, RH	AD33-L63846-ABW Pad Assy, Rear Cushion Lower, RH	$1,015.59	1	TO
7	AD33L63847ABW	Pad Assy, Rear Cushion Lower, LH	AD33L63847ABW Pad Assy, Rear Cushion Lower, LH	$1,015.59	1	TO
8	AD33L672A20AAW	Panel assy, rear seat side lower, RH	AD33L672A20AAW Panel assy, rear seat side lower, RH	-	1	PE	Enquire
8	AD33L672A21AAW	Panel assy, rear seat side lower, LH	AD33L672A21AAW Panel assy, rear seat side lower, LH	-	1	PE	Enquire
