Package Tray Assembly, 2+2 B&O (2009)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Package Tray Assembly, 2+2 B&O (2009)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33-02349-BCW COWL LOWER ASSY COMPLETE RH RHD $579.42 To Order
Photo Part No Description Price (each) Stock
9D33-46922-AAW Panel Assy, Centre Package Tray $1,583.73 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
8D33-313A68-AA Package Tray Bracket, RH $23.94 To Order
Photo Part No Description Price (each) Stock
8D33-313A69-AA Package Tray Bracket, LH $24.13 To Order
Photo Part No Description Price (each) Stock
6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20) $20.53 To Order
Photo Part No Description Price (each) Stock
697528-PK Washer-M5 Large OD Pack of 20 $8.66 To Order
Photo Part No Description Price (each) Stock
703165 NUT M5 HEX FLG PLAS CHROME FREE $0.20 IN STOCK
Photo Part No Description Price (each) Stock
6G33-46058-AA Screw, M5 x 10 Pan Head Flange Torx $1.81 To Order
Photo Part No Description Price (each) Stock
701157-PK Screw & Washer 4.2 x 16 (Pack of 10) $2.65 IN STOCK
4G43-46660-AA Foam Block, Parcel Shelf $21.93 To Order

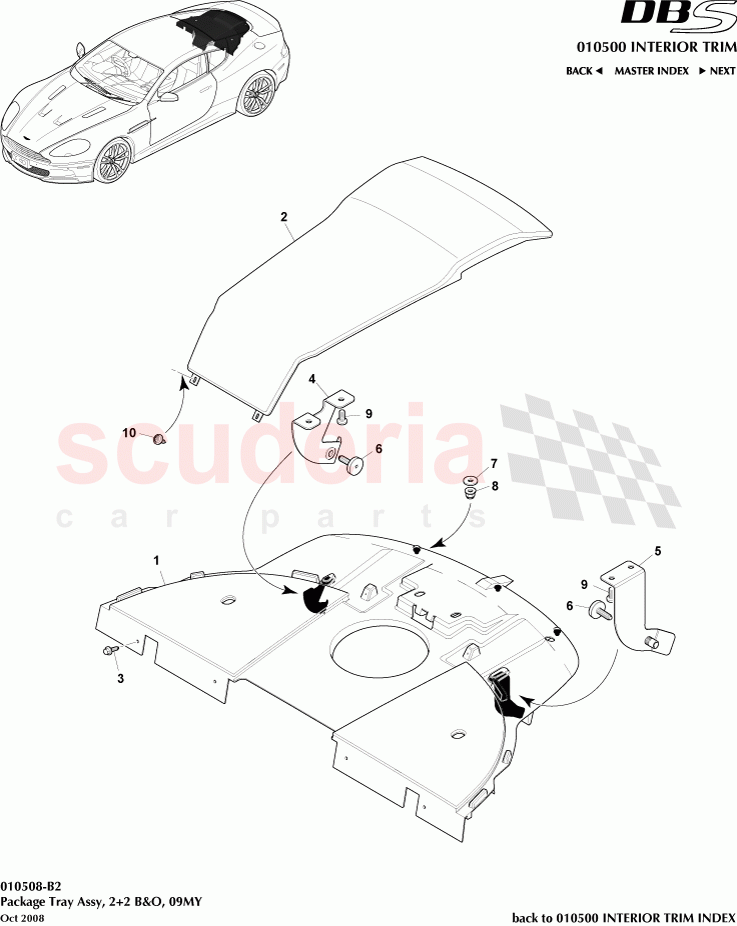

Package Tray Assembly, 2+2 B&O (2009) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G33-02349-BCW
COWL LOWER ASSY COMPLETE RH RHD 		$579.42 1
TO
2 9D33-46922-AAW
Panel Assy, Centre Package Tray 		$1,583.73 1
TO
3 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.20 4
IN
4 8D33-313A68-AA
Package Tray Bracket, RH 		$23.94 1
TO
5 8D33-313A69-AA
Package Tray Bracket, LH 		$24.13 1
TO
6 6G33-FA0115-AB-PK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		$20.53 2
TO
7 697528-PK
Washer-M5 Large OD Pack of 20 		$8.66 3
TO
8 703165
NUT M5 HEX FLG PLAS CHROME FREE
IN STOCK 		$0.20 3
IN
9 6G33-46058-AA
Screw, M5 x 10 Pan Head Flange Torx 		$1.81 4
TO
10 701157-PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.65 2
IN
10 4G43-46660-AA
Foam Block, Parcel Shelf 		$21.93 2
TO
