Body Side Quarter Trim Assembly (Coupe)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Side Quarter Trim Assembly (Coupe)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9D33-31112-AAW ASSY REAR QUARTER UPPER TRIMMED RH $2,268.44 To Order
9D33-31113-AAW ASSY REAR QUARTER UPPER TRIMMED LH $2,268.44 To Order
8D33-31112-AFW ASSY REAR QUARTER UPPER TRIMMED RH $2,268.44 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9D33-31012-BAW PANEL ASSSY QUARTER TRIM LOWERS RH 2+2 Enquire To Order
9D33-31013-BAW PANEL ASSY QUARTER TRIM LOWERS LH 2+2 $813.49 To Order
9D3331012AAW Panel, rear qrtr lower trimmed, RH, B&O Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43-24858-AEW Bezel Assembly, Front Seat Belt, RH $177.85 To Order
4G43-24859-AEW Bezel Assembly, Front Seat Belt, LH $177.85 To Order
Photo Part No Description Price (each) Stock
4G43-V850063-AA Screw, Cap Hd $0.59 To Order
Photo Part No Description Price (each) Stock
703175 SCREW M4 x 10 PAN TORX CHROME FREE $0.20 IN STOCK
Photo Part No Description Price (each) Stock
703177 M5 TORX SCREW CHROME FREE $1.49 To Order
Photo Part No Description Price (each) Stock
697517-PK WASHER-M6 LGE OD BLK PACK OF 20 $22.35 To Order
Photo Part No Description Price (each) Stock
9D33-310B08-BA Speaker Grille, Black Rear Quarter Lower, RH $730.98 To Order
9D33-310B09-BA Speaker Grille, Black Rear Quarter Lower, LH $730.98 To Order
9D33-310B08-AC Speaker Grille, Rear Quarter Lower, RH $713.81 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9D3334793AA Washer, Lock Enquire To Order
7G43-C2437-AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE $141.33 To Order

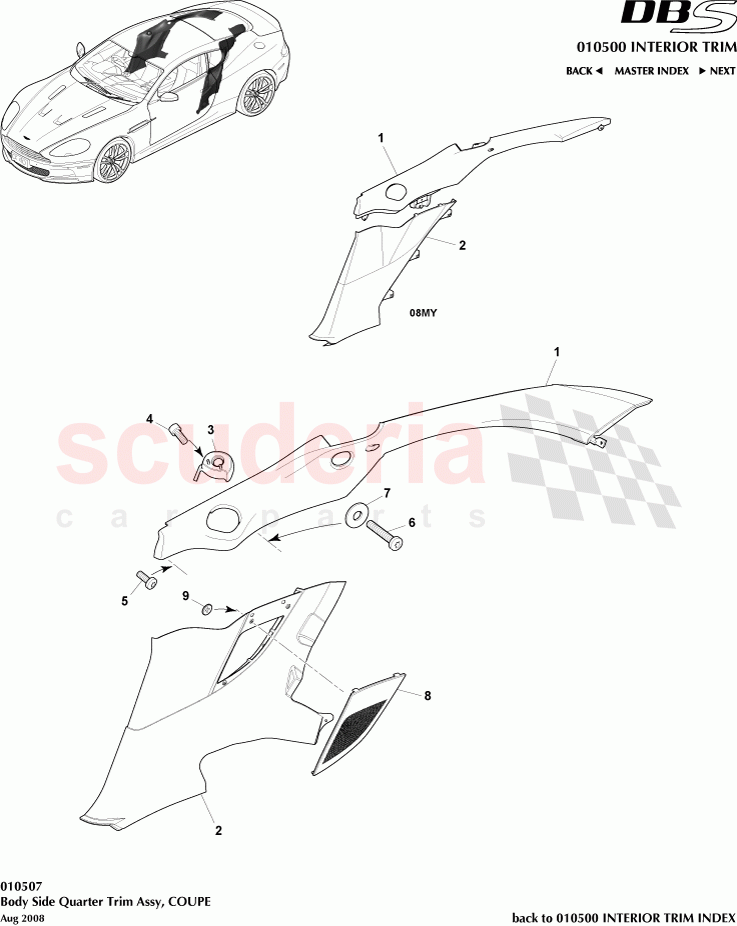

Body Side Quarter Trim Assembly (Coupe) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9D33-31112-AAW
ASSY REAR QUARTER UPPER TRIMMED RH
9.5MY 		$2,268.44 1
TO
1 9D33-31113-AAW
ASSY REAR QUARTER UPPER TRIMMED LH
9.5MY 		$2,268.44 1
TO
1 8D33-31112-AFW
ASSY REAR QUARTER UPPER TRIMMED RH 		$2,268.44 1
TO
1 8D33-31113-AFW
ASSY REAR QUARTER UPPER TRIMMED LH 		$2,268.44 1
TO
1 8D33-31012-ABW
PANEL ASSY QUARTER TRIM LOWERS RH 		$2,704.23 1
TO
2 9D33-31012-BAW
PANEL ASSSY QUARTER TRIM LOWERS RH 2+2
9.5MY 		- 1
PE
 Enquire
2 9D33-31013-BAW
PANEL ASSY QUARTER TRIM LOWERS LH 2+2
9.5MY 		$813.49 1
TO
2 9D3331012AAW
Panel, rear qrtr lower trimmed, RH, B&O
9.5MY 		- 1
PE
 Enquire
2 9D3331013AAW
Panel, rear qrtr lower trimmed, LH, B&O
9.5MY 		- 1
PE
 Enquire
2 8D33-31013-ABW
PANEL ASSY QUARTER TRIM LOWERS LH 		$2,704.23 1
TO
3 4G43-24858-AEW
Bezel Assembly, Front Seat Belt, RH 		$177.85 1
TO
3 4G43-24859-AEW
Bezel Assembly, Front Seat Belt, LH 		$177.85 1
TO
4 4G43-V850063-AA
Screw, Cap Hd 		$0.59 2
TO
5 703175
SCREW M4 x 10 PAN TORX CHROME FREE
IN STOCK 		$0.20 2
IN
6 703177
M5 TORX SCREW CHROME FREE 		$1.49 2
TO
7 697517-PK
WASHER-M6 LGE OD BLK PACK OF 20 		$22.35 2
TO
8 9D33-310B08-BA
Speaker Grille, Black Rear Quarter Lower, RH
Carbon Edition 		$730.98 1
TO
8 9D33-310B09-BA
Speaker Grille, Black Rear Quarter Lower, LH
Carbon Edition 		$730.98 1
TO
8 9D33-310B08-AC
Speaker Grille, Rear Quarter Lower, RH
9.5MY 		$713.81 1
TO
8 9D33-310B09-AC
Speaker Grille, Rear Quarter Lower, LH
9.5MY 		$713.81 1
TO
8 8D33-310B08-AA
GRILL ASSY SPEAKER QUARTER 		$119.08 1
TO
8 8D33-310B09-AA
GRILL ASSY SPEAKER QUARTER 		$227.25 1
TO
9 9D3334793AA
Washer, Lock
3 per grille 		- 6
PE
 Enquire
9 7G43-C2437-AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		$141.33 -
TO
