Name: Package Tray Assembly
Rating: 5.0 (1 reviews)

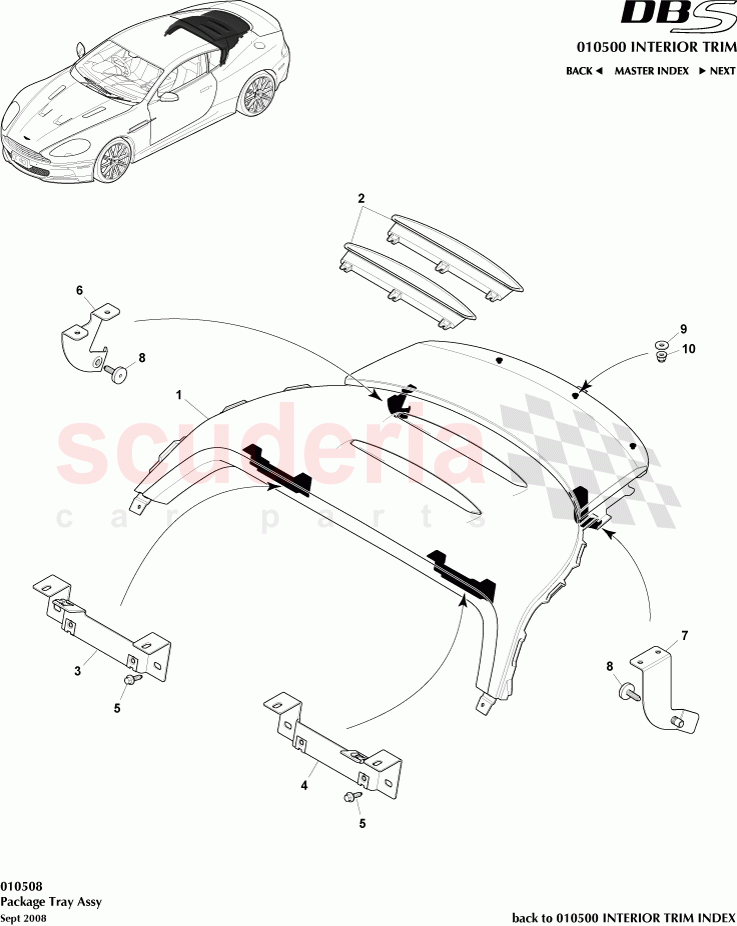

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D33-46668-AEW	Panel Assy, Package Tray	$2,740.58	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-13B477-ABW	BEZEL PACKAGE TRAY VENT	$58.72	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-313A66-AC	Bracket, Package Tray, RH	$48.30	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-313A67-AC	Bracket, Package Tray, LH	$48.30	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D33-313A68-AA	Package Tray Bracket, RH	$23.94	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-313A69-AA	Package Tray Bracket, LH	$24.13	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	To Order

Photo	Part No	Description	Price (each)	Stock
	697528-PK	Washer-M5 Large OD Pack of 20	$8.66	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	$0.20	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	8D33-46668-AEW	Panel Assy, Package Tray	8D33-46668-AEW Panel Assy, Package Tray	$2,740.58	1	TO
2	8D33-13B477-ABW	BEZEL PACKAGE TRAY VENT	8D33-13B477-ABW BEZEL PACKAGE TRAY VENT	$58.72	2	TO
3	8D33-313A66-AC	Bracket, Package Tray, RH	8D33-313A66-AC Bracket, Package Tray, RH	$48.30	1	TO
4	8D33-313A67-AC	Bracket, Package Tray, LH	8D33-313A67-AC Bracket, Package Tray, LH	$48.30	1	TO
5	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	$0.20	4	IN
6	8D33-313A68-AA	Package Tray Bracket, RH	8D33-313A68-AA Package Tray Bracket, RH	$23.94	1	TO
7	8D33-313A69-AA	Package Tray Bracket, LH	8D33-313A69-AA Package Tray Bracket, LH	$24.13	1	TO
8	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	2	TO
9	697528-PK	Washer-M5 Large OD Pack of 20	697528-PK Washer-M5 Large OD Pack of 20	$8.66	3	TO
10	703165	NUT M5 HEX FLG PLAS CHROME FREE IN STOCK	703165 NUT M5 HEX FLG PLAS CHROME FREE IN STOCK	$0.20	3	IN
