Soft Sealing of Aston Martin Aston Martin DBS V12

Aston Martin DBS V12 - Soft Sealing

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43-L20220-AA	Seal Patch, Large 50mm	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-N804263-AA	Rubber Plug, 22mm, Black Thermoplastic	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-N804814-AA	Rubber Plug, 24mm, Black Thermoplastic	$2.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-2273-AA	BLACK TPR BODY PLUG 25mm	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-25919-AA	Rubber Plug, 12mm, Black Thermoplastic	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-N805935-AA	Flangeless Plug, Black PVC, 17mm	$0.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-F280C09-AA	A PILLAR SEALING PRISEAL FOAM BLOCK	$22.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-026A30-AB	Baffle, Front Body Pillar	$8.68	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-N800631-AA	Rubber Plug, 11mm, Black Thermoplastic	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-N800631-AA	Rubber Plug, 11mm, Black Thermoplastic	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-N806457-AA	Rubber Plug, 20mm, Black Thermoplastic	$2.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-N808070-AA	Rubber Plug, 19mm, Black Thermoplastic	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-58863-AA	Pad, Header Sealing	$6.50	To Order

Photo	Part No	Description	Price (each)	Stock
	6G43-F78410-AA	Sealing Pad, Al Butyl, 35 x 35	$1.62	IN STOCK

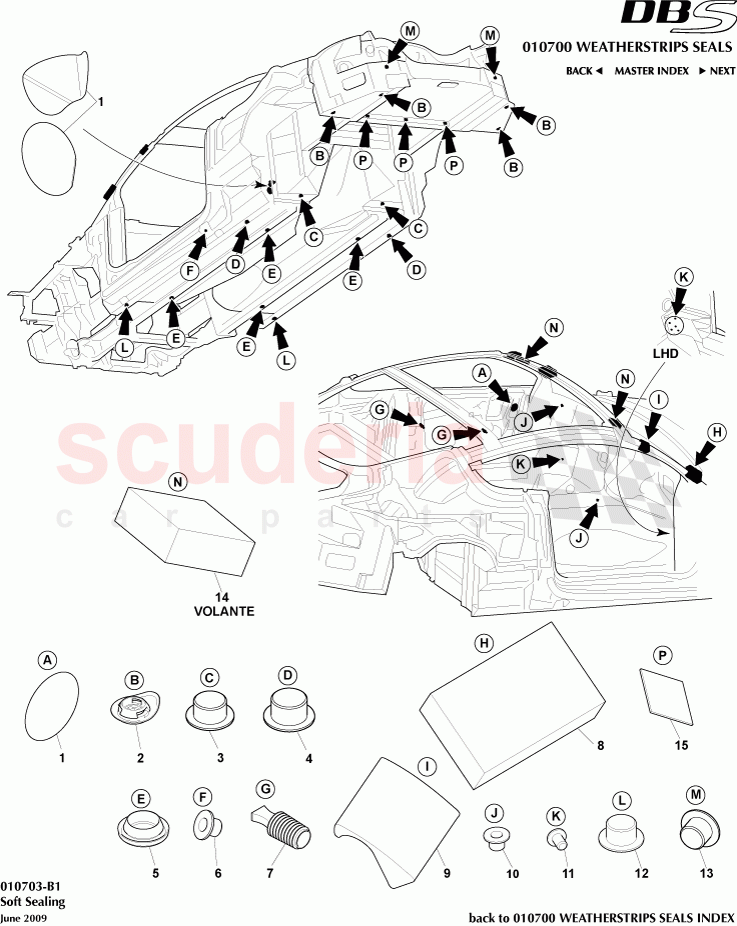

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	4G43-L20220-AA	Seal Patch, Large 50mm IN STOCK	4G43-L20220-AA Seal Patch, Large 50mm IN STOCK	$0.68	4	IN
	2	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	$2.58	4	TO
	3	6G33-N804263-AA	Rubber Plug, 22mm, Black Thermoplastic	6G33-N804263-AA Rubber Plug, 22mm, Black Thermoplastic	$1.99	2	TO
	4	6G33-N804814-AA	Rubber Plug, 24mm, Black Thermoplastic IN STOCK	6G33-N804814-AA Rubber Plug, 24mm, Black Thermoplastic IN STOCK	$2.62	2	IN
	5	4G43-2273-AA	BLACK TPR BODY PLUG 25mm	4G43-2273-AA BLACK TPR BODY PLUG 25mm	$2.06	4	TO
	6	6G33-25919-AA	Rubber Plug, 12mm, Black Thermoplastic	6G33-25919-AA Rubber Plug, 12mm, Black Thermoplastic	$1.03	2	TO
	7	4G43-N805935-AA	Flangeless Plug, Black PVC, 17mm IN STOCK	4G43-N805935-AA Flangeless Plug, Black PVC, 17mm IN STOCK	$0.91	4	IN
	8	4G43-F280C09-AA	A PILLAR SEALING PRISEAL FOAM BLOCK	4G43-F280C09-AA A PILLAR SEALING PRISEAL FOAM BLOCK	$22.34	2	TO
	9	4G43-026A30-AB	Baffle, Front Body Pillar	4G43-026A30-AB Baffle, Front Body Pillar	$8.68	2	TO
	4G43-N800631-AA		RUBBER PLUG, 11MM, BLACK THERMOPLASTIC	from $1.38
10 Rubber Plug, 11mm, Black Thermoplastic $1.38 3 TO 11 Rubber Plug, 11mm, Black Thermoplastic $1.38 3 TO
	12	6G33-N806457-AA	Rubber Plug, 20mm, Black Thermoplastic IN STOCK	6G33-N806457-AA Rubber Plug, 20mm, Black Thermoplastic IN STOCK	$2.26	2	IN
	13	4G43-N808070-AA	Rubber Plug, 19mm, Black Thermoplastic	4G43-N808070-AA Rubber Plug, 19mm, Black Thermoplastic	$1.84	2	TO
	14	4G43-58863-AA	Pad, Header Sealing	4G43-58863-AA Pad, Header Sealing VOLANTE	$6.50	2	TO
	15	6G43-F78410-AA	Sealing Pad, Al Butyl, 35 x 35 IN STOCK	6G43-F78410-AA Sealing Pad, Al Butyl, 35 x 35 IN STOCK	$1.62	3	IN
