Rear Frame Sub System

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Rear Frame Sub System

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD33-5R003-AD Subframe Assy, Rear $9,511.77 To Order
8D33-5R003-AE REAR FRAME $9,511.77 To Order
Photo Part No Description Price (each) Stock
703146 BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE $14.86 IN STOCK
Photo Part No Description Price (each) Stock
703148 BOLT M14x230 HEX FLANGE CONE CHROME FREE $13.56 To Order
Photo Part No Description Price (each) Stock
4G43-22-10209 RR TRANSAXLE X MEMBR $345.55 To Order

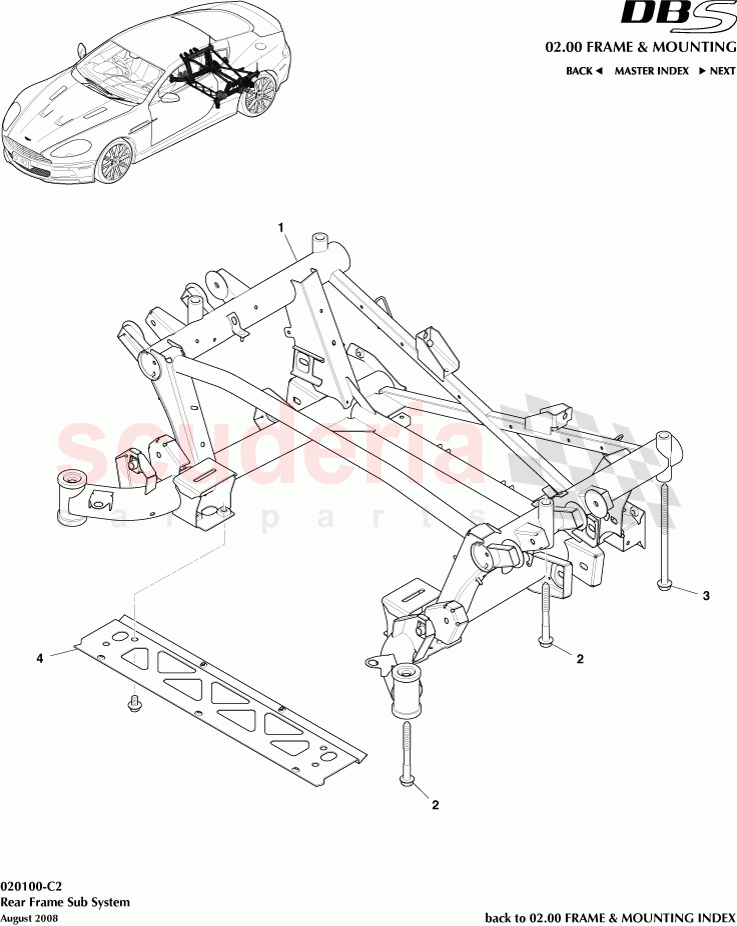

Rear Frame Sub System of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD33-5R003-AD
Subframe Assy, Rear
9.5MY 		$9,511.77 1
TO
1 8D33-5R003-AE
REAR FRAME 		$9,511.77 1
TO
2 703146
BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE
IN STOCK 		$14.86 4
IN
3 703148
BOLT M14x230 HEX FLANGE CONE CHROME FREE 		$13.56 2
TO
4 4G43-22-10209
RR TRANSAXLE X MEMBR 		$345.55 1
TO
