Body Dash And Cowl (Volante)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Dash and Cowl (Volante)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EG33-L03014-AB FR ASY W/SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
GOGG33-F02526-AA REINF FRT BDY PLR $315.16 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02527-AA Pillar, Front Body Reinforcement, LH $89.65 To Order
Photo Part No Description Price (each) Stock
4G43-L03444-AB Reinf Windshield Header $63.41 To Order
Photo Part No Description Price (each) Stock
AG33-10414-AA MEMBER FRONT CS AT DH $88.35 To Order
Photo Part No Description Price (each) Stock
6G33-F01760-AB PANEL DASH UPPER RH $593.77 To Order
6G33-F01760-BB PANEL DASH UPPER RH $560.92 To Order
Photo Part No Description Price (each) Stock
6G33-F01761-AB PANEL DASH UPPER LH $582.46 To Order
6G33-F01761-BB PANEL DASH UPPER LH $560.92 To Order
Photo Part No Description Price (each) Stock
BG33-F01612-AA Panel, Dash Side, RH $795.66 To Order
Photo Part No Description Price (each) Stock
BG33-F01613-AA Panel, Dash Side, LH $795.66 To Order
Photo Part No Description Price (each) Stock
8G43-16430-AA REINF HOOD STRIKER PLATE RH $59.41 To Order
Photo Part No Description Price (each) Stock
8G43-16431-AA REINF HOOD STRIKER PLATE LH $92.17 To Order
Photo Part No Description Price (each) Stock
6G33-56316-AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.64 To Order
Photo Part No Description Price (each) Stock
6G33-46768-AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.82 To Order
Photo Part No Description Price (each) Stock
8D33-199901-AA NUTPLATE HEAD LAMP BRACKET $15.63 To Order
Photo Part No Description Price (each) Stock
6G33-37949-AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order
Photo Part No Description Price (each) Stock
4G43-20-10882 SUPPORT ARM ASSY- FRT WING LH-DB9 $1,110.34 To Order
Photo Part No Description Price (each) Stock
4G43-20-10881 SUPPORT ARM ASSY- FRT WING RH-DB9 $1,110.34 To Order
Photo Part No Description Price (each) Stock
GO6G33-17F790-AC NUTPLATE SHOTGUN M10 $85.77 To Order
Photo Part No Description Price (each) Stock
6G33-C18178-AB Bracket, Gas Damper Mounting $7.38 To Order
Photo Part No Description Price (each) Stock
GO8G43-16A681-AC REINF HOOD HNGE BODY $55.53 To Order
Photo Part No Description Price (each) Stock
GO8G43-16A682-AB RH REINF HOOD HINGE ON BODY LH $42.38 To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm $0.20 To Order
Photo Part No Description Price (each) Stock
6G33F02660AB Pillar, front body lower front, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33F02661AB Pillar, front body lower front, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33-71490-AA Nutplate, A Post Hinge, Upper, RH $9.24 To Order
Photo Part No Description Price (each) Stock
6G33-15110-AB Nutplate M8, ??post hinge, lower, RH $12.73 To Order
Photo Part No Description Price (each) Stock
6G33-94545-AA Nutplate, A Post Hinge, Upper, LH $9.08 To Order
Photo Part No Description Price (each) Stock
6G33-15111-AA Nutplate, A Post Hinge, Upper, LH $8.32 To Order
Photo Part No Description Price (each) Stock
6G33F02662AC Extrusion front body pillar lower, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33F02663AC Extrusion front body pillar lower, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33-486226-AA Nutplate, M8, IP beam $9.24 To Order

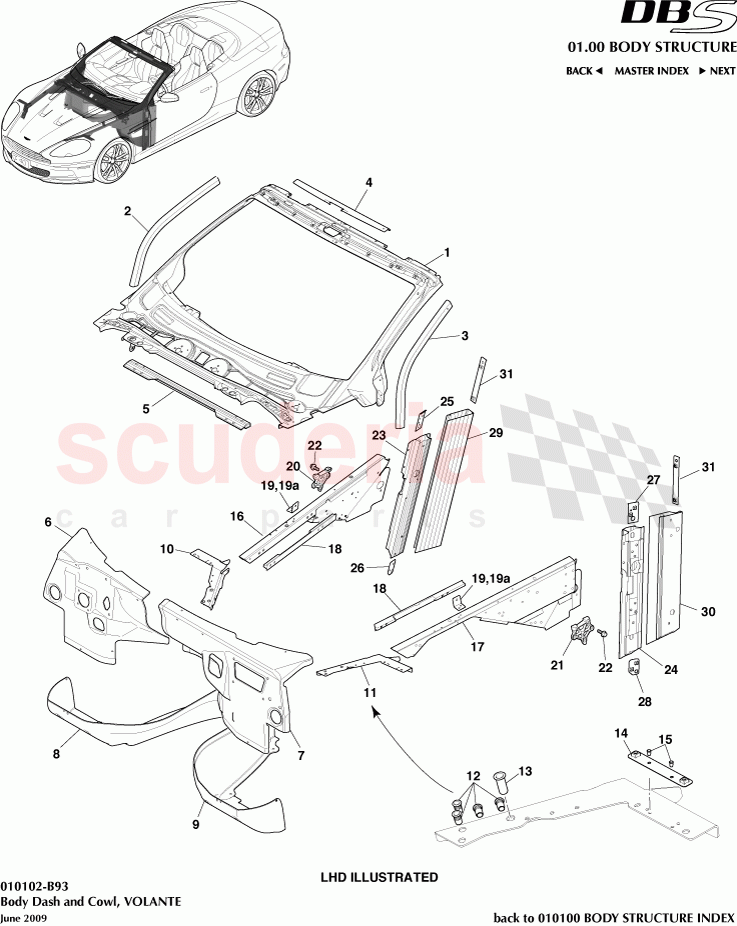

Body Dash and Cowl (Volante) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 EG33-L03014-AB
FR ASY W/SHIELD
Structural Cat. A only 		- 1
PE
 Enquire
2 GOGG33-F02526-AA
REINF FRT BDY PLR
Structural Cat. A only 		$315.16 1
TO
3 GOAG33-F02527-AA
Pillar, Front Body Reinforcement, LH
Structural Cat. A only 		$89.65 1
TO
4 4G43-L03444-AB
Reinf Windshield Header
Structural Cat. A only 		$63.41 1
TO
5 AG33-10414-AA
MEMBER FRONT CS AT DH
Structural Cat. A only 		$88.35 1
TO
6 6G33-F01760-AB
PANEL DASH UPPER RH
Structural Cat. A only 		$593.77 1
TO
6 6G33-F01760-BB
PANEL DASH UPPER RH
Structural Cat. A only 		$560.92 1
TO
7 6G33-F01761-AB
PANEL DASH UPPER LH
Structural Cat. A only 		$582.46 1
TO
7 6G33-F01761-BB
PANEL DASH UPPER LH
Structural Cat. A only 		$560.92 1
TO
8 BG33-F01612-AA
Panel, Dash Side, RH
Structural Cat. A only 		$795.66 1
TO
9 BG33-F01613-AA
Panel, Dash Side, LH
Structural Cat. A only 		$795.66 1
TO
10 8G43-16430-AA
REINF HOOD STRIKER PLATE RH 		$59.41 1
TO
11 8G43-16431-AA
REINF HOOD STRIKER PLATE LH 		$92.17 1
TO
12 6G33-56316-AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni
4 per striker plate, Structural Cat. A only 		$0.64 8
TO
13 6G33-46768-AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
1 per striker plate 		$1.82 2
TO
14 8D33-199901-AA
NUTPLATE HEAD LAMP BRACKET
Structural Cat. A only 		$15.63 2
TO
15 6G33-37949-AA
DIA 4.8 X 13.9 BLIND RIVET
2 per nut plate, Structural Cat. A only 		$0.12 4
TO
16 4G43-20-10882
SUPPORT ARM ASSY- FRT WING LH-DB9
Structural Cat. A only 		$1,110.34 1
TO
17 4G43-20-10881
SUPPORT ARM ASSY- FRT WING RH-DB9
Structural Cat. A only 		$1,110.34 1
TO
18 GO6G33-17F790-AC
NUTPLATE SHOTGUN M10
Structural Cat. A only 		$85.77 2
TO
19 6G33-C18178-AB
Bracket, Gas Damper Mounting
Structural Cat. A only 		$7.38 2
TO
20 GO8G43-16A681-AC
REINF HOOD HNGE BODY
Structural Cat. A only 		$55.53 1
TO
21 GO8G43-16A682-AB
RH REINF HOOD HINGE ON BODY LH
Structural Cat. A only 		$42.38 1
TO
22 700607
Screw Hex Flange Head M6 x 16mm
3 reinf hood hinge, Structural Cat. A only 		$0.20 6
TO
23 6G33F02660AB
Pillar, front body lower front, RH
Structural Cat. A only 		- 1
PE
 Enquire
24 6G33F02661AB
Pillar, front body lower front, LH
Structural Cat. A only 		- 1
PE
 Enquire
25 6G33-71490-AA
Nutplate, A Post Hinge, Upper, RH
Structural Cat. A only 		$9.24 1
TO
26 6G33-15110-AB
Nutplate M8, ??post hinge, lower, RH
Structural Cat. A only 		$12.73 1
TO
27 6G33-94545-AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$9.08 1
TO
28 6G33-15111-AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$8.32 1
TO
29 6G33F02662AC
Extrusion front body pillar lower, RH
Structural Cat. A only 		- 1
PE
 Enquire
30 6G33F02663AC
Extrusion front body pillar lower, LH
Structural Cat. A only 		- 1
PE
 Enquire
31 6G33-486226-AA
Nutplate, M8, IP beam
Structural Cat. A only 		$9.24 2
TO
