Body Dash And Cowl (Coupe)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Dash and Cowl (Coupe)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43C03014BR Frame Assembly, Windshield, RHD Enquire To Order
EG33-C03014-AB FR ASY W/SHIELD $2,591.13 To Order
Photo Part No Description Price (each) Stock
6G33F02526AB Reinforced front body pillar, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33F02527AB Reinforced front body pillar, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G43-C513A07-AB REINFORCED ROOF SIDE RAIL RH $300.44 To Order
Photo Part No Description Price (each) Stock
8G43C513A08AA Reinf roof side rail, LH Enquire To Order
Photo Part No Description Price (each) Stock
9G4390907AA Barrel Nut, M6 $0.96 To Order
Photo Part No Description Price (each) Stock
8G43C42220AB Frame, back window, upper Enquire To Order
Photo Part No Description Price (each) Stock
AG33-10414-AA MEMBER FRONT CS AT DH $88.35 To Order
Photo Part No Description Price (each) Stock
9G33F01760AA Panel, dash upper, RH, LHD Enquire To Order
9G33F01760BA Panel, dash upper, RH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
9G33F01761AA Panel, dash upper, LH, LHD Enquire To Order
9G33F01761BA Panel, dash upper, LH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
BG33-F01612-AA Panel, Dash Side, RH $795.66 To Order
Photo Part No Description Price (each) Stock
BG33-F01613-AA Panel, Dash Side, LH $795.66 To Order
Photo Part No Description Price (each) Stock
8G43-16430-AA REINF HOOD STRIKER PLATE RH $59.41 To Order
Photo Part No Description Price (each) Stock
8G43-16431-AA REINF HOOD STRIKER PLATE LH $92.17 To Order
Photo Part No Description Price (each) Stock
6G33-56316-AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.64 To Order
Photo Part No Description Price (each) Stock
6G33-46768-AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.82 To Order
Photo Part No Description Price (each) Stock
8G43-199901-AA Nutplate, M6 Headlamp Bracket $5.81 To Order
Photo Part No Description Price (each) Stock
6G33-37949-AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order
Photo Part No Description Price (each) Stock
4G43-20-10882 SUPPORT ARM ASSY- FRT WING LH-DB9 $1,110.34 To Order
Photo Part No Description Price (each) Stock
4G43-20-10881 SUPPORT ARM ASSY- FRT WING RH-DB9 $1,110.34 To Order
Photo Part No Description Price (each) Stock
6G3317F790AC Nutplate, M10 Enquire To Order
Photo Part No Description Price (each) Stock
6G33-C18178-AB Bracket, Gas Damper Mounting $7.38 To Order
Photo Part No Description Price (each) Stock
GO8G43-16A681-AC REINF HOOD HNGE BODY $55.53 To Order
Photo Part No Description Price (each) Stock
GO8G43-16A682-AB RH REINF HOOD HINGE ON BODY LH $42.38 To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm $0.20 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02660-AB Pillar, Front Body Lower Front, RH $171.59 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02661-AB Pillar, Front Body Lower Front, LH $158.62 To Order
Photo Part No Description Price (each) Stock
6G33-71490-AA Nutplate, A Post Hinge, Upper, RH $9.24 To Order
Photo Part No Description Price (each) Stock
6G33-15110-AB Nutplate M8, ??post hinge, lower, RH $12.73 To Order
Photo Part No Description Price (each) Stock
6G33-94545-AA Nutplate, A Post Hinge, Upper, LH $9.08 To Order
Photo Part No Description Price (each) Stock
6G33-15111-AA Nutplate, A Post Hinge, Upper, LH $8.32 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02662-AB Extrusion, Front Body Pillar Lower, RH $111.04 To Order
Photo Part No Description Price (each) Stock
GOAG33-F02663-AB Extrusion, Front Body Pillar Lower, LH $88.84 To Order
Photo Part No Description Price (each) Stock
6G33-486226-AA Nutplate, M8, IP beam $9.24 To Order

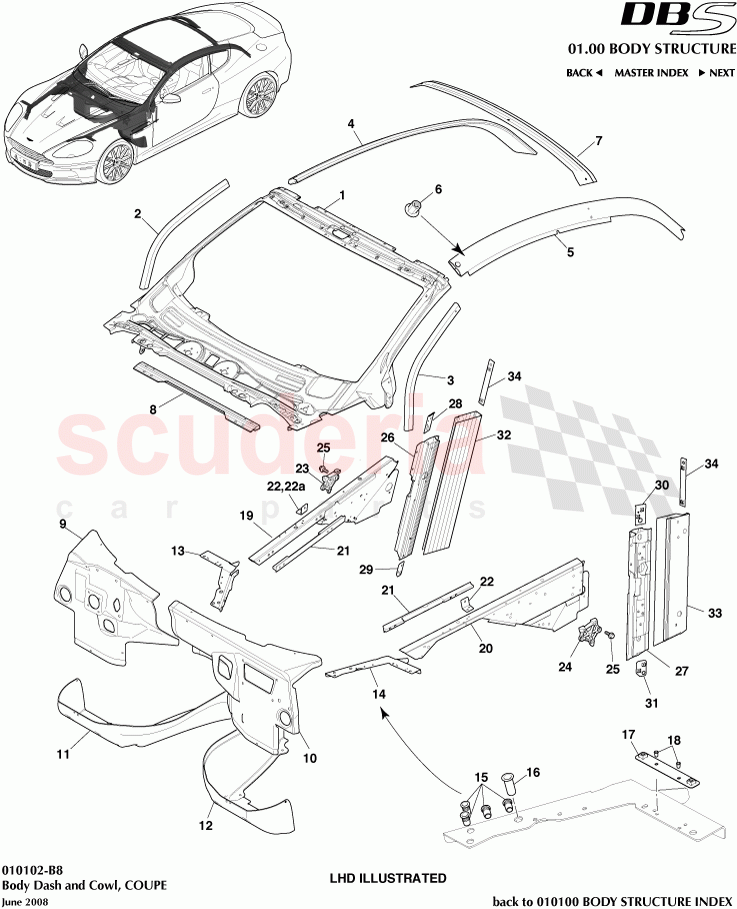

Body Dash and Cowl (Coupe) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43C03014BR
Frame Assembly, Windshield, RHD
Structural Cat. A only 		- 1
PE
 Enquire
1 EG33-C03014-AB
FR ASY W/SHIELD
Structural Cat. A only 		$2,591.13 1
TO
2 6G33F02526AB
Reinforced front body pillar, RH
Structural Cat. A only 		- 1
PE
 Enquire
3 6G33F02527AB
Reinforced front body pillar, LH
Structural Cat. A only 		- 1
PE
 Enquire
4 8G43-C513A07-AB
REINFORCED ROOF SIDE RAIL RH
Structural Cat. A only 		$300.44 1
TO
5 8G43C513A08AA
Reinf roof side rail, LH
Structural Cat. A only 		- 1
PE
 Enquire
6 9G4390907AA
Barrel Nut, M6
1 per rail, Structural Cat. A only 		$0.96 2
TO
7 8G43C42220AB
Frame, back window, upper
Structural Cat. A only 		- 1
PE
 Enquire
8 AG33-10414-AA
MEMBER FRONT CS AT DH
Structural Cat. A only 		$88.35 1
TO
9 9G33F01760AA
Panel, dash upper, RH, LHD
Structural Cat. A only 		- 1
PE
 Enquire
9 9G33F01760BA
Panel, dash upper, RH, RHD
Structural Cat. A only 		- 1
PE
 Enquire
10 9G33F01761AA
Panel, dash upper, LH, LHD
Structural Cat. A only 		- 1
PE
 Enquire
10 9G33F01761BA
Panel, dash upper, LH, RHD
Structural Cat. A only 		- 1
PE
 Enquire
11 BG33-F01612-AA
Panel, Dash Side, RH
Structural Cat. A only 		$795.66 1
TO
12 BG33-F01613-AA
Panel, Dash Side, LH
Structural Cat. A only 		$795.66 1
TO
13 8G43-16430-AA
REINF HOOD STRIKER PLATE RH 		$59.41 1
TO
14 8G43-16431-AA
REINF HOOD STRIKER PLATE LH 		$92.17 1
TO
15 6G33-56316-AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni
4 per striker plate, Structural Cat. A only 		$0.64 8
TO
16 6G33-46768-AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
1 per striker plate 		$1.82 2
TO
17 8G43-199901-AA
Nutplate, M6 Headlamp Bracket
Structural Cat. A only 		$5.81 2
TO
18 6G33-37949-AA
DIA 4.8 X 13.9 BLIND RIVET
2 per nut plate, Structural Cat. A only 		$0.12 4
TO
19 4G43-20-10882
SUPPORT ARM ASSY- FRT WING LH-DB9
Structural Cat. A only 		$1,110.34 1
TO
20 4G43-20-10881
SUPPORT ARM ASSY- FRT WING RH-DB9
Structural Cat. A only 		$1,110.34 1
TO
21 6G3317F790AC
Nutplate, M10
Structural Cat. A only 		- 2
PE
 Enquire
22 6G33-C18178-AB
Bracket, Gas Damper Mounting
Structural Cat. A only 		$7.38 2
TO
23 GO8G43-16A681-AC
REINF HOOD HNGE BODY
Structural Cat. A only 		$55.53 1
TO
24 GO8G43-16A682-AB
RH REINF HOOD HINGE ON BODY LH
Structural Cat. A only 		$42.38 1
TO
25 700607
Screw Hex Flange Head M6 x 16mm
3 reinf hood hinge, Structural Cat. A only 		$0.20 6
TO
26 GOAG33-F02660-AB
Pillar, Front Body Lower Front, RH
Structural Cat. A only 		$171.59 1
TO
27 GOAG33-F02661-AB
Pillar, Front Body Lower Front, LH
Structural Cat. A only 		$158.62 1
TO
28 6G33-71490-AA
Nutplate, A Post Hinge, Upper, RH
Structural Cat. A only 		$9.24 1
TO
29 6G33-15110-AB
Nutplate M8, ??post hinge, lower, RH
Structural Cat. A only 		$12.73 1
TO
30 6G33-94545-AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$9.08 1
TO
31 6G33-15111-AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$8.32 1
TO
32 GOAG33-F02662-AB
Extrusion, Front Body Pillar Lower, RH
Structural Cat. A only 		$111.04 1
TO
33 GOAG33-F02663-AB
Extrusion, Front Body Pillar Lower, LH
Structural Cat. A only 		$88.84 1
TO
34 6G33-486226-AA
Nutplate, M8, IP beam
Structural Cat. A only 		$9.24 2
TO
