Front Door Hinge Door Brake

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Front door hinge door brake

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
41517375485 Door front left $14,600.17 To Order
41517375486 Door, front, right $12,775.15 To Order
Photo Part No Description Price (each) Stock
41 52 7242665 Door hinge, rear top left/bottom right $334.32 To Order
41 52 7242666 Door hinge, rear top right/bottom left $334.32 To Order
Photo Part No Description Price (each) Stock
51 21 7188082 Pin $9.53 IN STOCK
Photo Part No Description Price (each) Stock
07 14 7184165 Hexagon screw with taper Enquire To Order
07148499258 Hexagon screw with taper $13.83 IN STOCK
Photo Part No Description Price (each) Stock
07 14 7184164 Torx-countersunk screw $1.54 IN STOCK
Photo Part No Description Price (each) Stock
51217304773 Door brake left $569.48 IN STOCK
51217304774 Door brake right $552.35 To Order
Photo Part No Description Price (each) Stock
51 22 7202751 Soft closure aid, door, left Enquire To Order
51225A36E37 Soft closure aid, door, left $2,322.30 IN STOCK
51 22 7202752 Soft closure aid, door, right Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
07 12 9904065 ISA screw $3.45 To Order
Photo Part No Description Price (each) Stock
51217304775 Left bracket $85.12 To Order
51217304776 Right bracket $85.12 To Order
Photo Part No Description Price (each) Stock
07 12 9904819 Torx-bolt with washer $1.23 IN STOCK
Photo Part No Description Price (each) Stock
51717314497 Crashpad, door, front left $396.25 To Order
51717314498 Crashpad, door, front right $396.25 To Order
Photo Part No Description Price (each) Stock
07 14 7146367 Fillister head screw $1.29 IN STOCK
Photo Part No Description Price (each) Stock
51717314499 Damping element, front top left $48.18 To Order
51717314500 Damping element, front top right $48.18 To Order
Photo Part No Description Price (each) Stock
51717314501 Damping element, front bottom left $48.18 To Order
51717314502 Damping element, front bottom right $48.18 To Order
Photo Part No Description Price (each) Stock
51487304637 Sound insulation, door, front left $230.39 To Order
51487304638 Sound insulation, door, front right $230.39 To Order

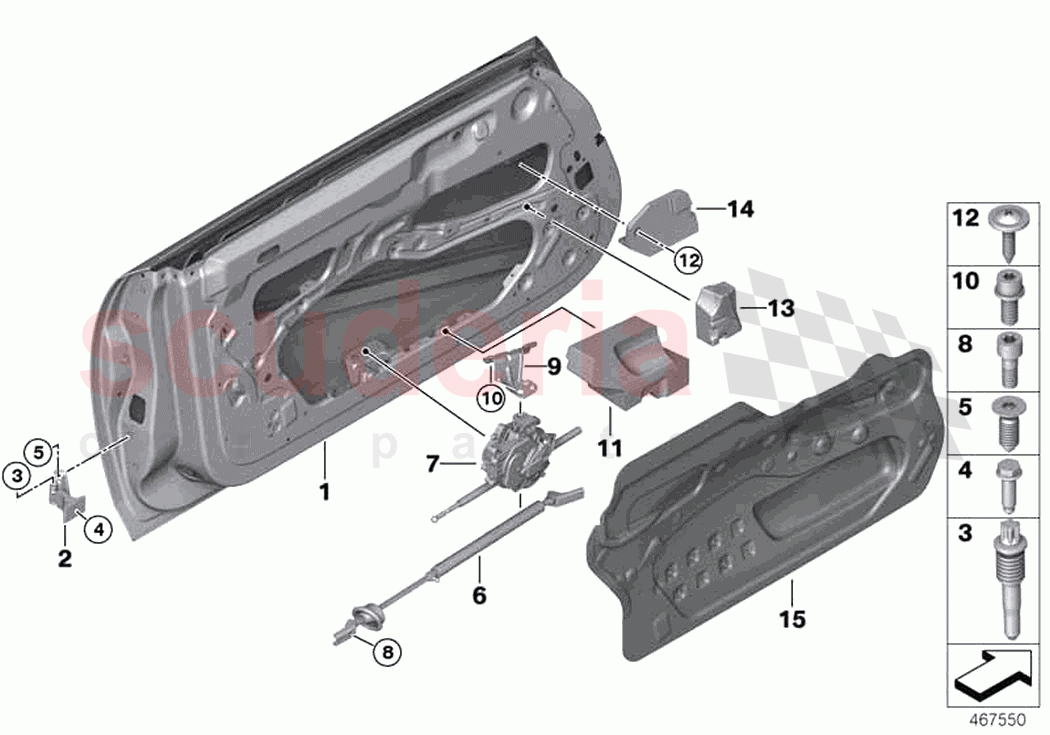

Front door hinge door brake of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 41517375485
Door front left 		$14,600.17 1
TO
1 41517375486
Door, front, right 		$12,775.15 1
TO
2 41 52 7242665
Door hinge, rear top left/bottom right 		$334.32 1
TO
2 41 52 7242666
Door hinge, rear top right/bottom left 		$334.32 1
TO
3 51 21 7188082
Pin
IN STOCK 		$9.53 4
IN
4 07 14 7184165
Hexagon screw with taper
M12X39; from 01.2018 		- 8
PE
 Enquire
4 07148499258
Hexagon screw with taper
M12X35
IN STOCK 		$13.83 8
IN
5 07 14 7184164
Torx-countersunk screw
ISA M8X28
IN STOCK 		$1.54 -
IN
6 51217304773
Door brake left
IN STOCK 		$569.48 1
IN
6 51217304774
Door brake right 		$552.35 1
TO
7 51 22 7202751
Soft closure aid, door, left
from 01.2021 		- 1
PE
 Enquire
7 51225A36E37
Soft closure aid, door, left
IN STOCK 		$2,322.30 1
IN
7 51 22 7202752
Soft closure aid, door, right
from 01.2021 		- 1
PE
 Enquire
7 51225A36E38
Soft closure aid, door, right 		$2,218.71 1
TO
8 07 12 9904065
ISA screw
M8X20-8.8-ZNS3 		$3.45 -
TO
9 51217304775
Left bracket 		$85.12 1
TO
9 51217304776
Right bracket 		$85.12 1
TO
10 07 12 9904819
Torx-bolt with washer
M6X16-8.8-ZNNIV
IN STOCK 		$1.23 -
IN
11 51717314497
Crashpad, door, front left 		$396.25 1
TO
11 51717314498
Crashpad, door, front right 		$396.25 1
TO
12 07 14 7146367
Fillister head screw
L=18MM
IN STOCK 		$1.29 4
IN
13 51717314499
Damping element, front top left 		$48.18 1
TO
13 51717314500
Damping element, front top right 		$48.18 1
TO
14 51717314501
Damping element, front bottom left 		$48.18 1
TO
14 51717314502
Damping element, front bottom right 		$48.18 1
TO
15 51487304637
Sound insulation, door, front left 		$230.39 1
TO
15 51487304638
Sound insulation, door, front right 		$230.39 1
TO
