Name: Roof
Rating: 4.4 (1 reviews)

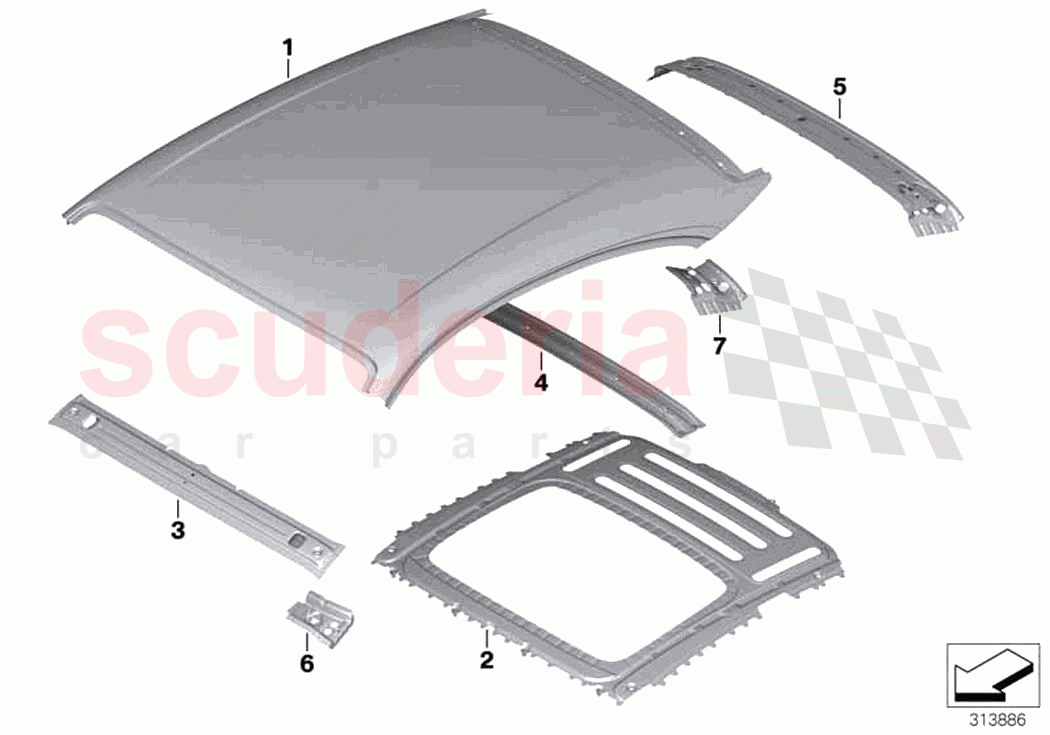

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41317336504	Frame panoramic roof	$1,490.44	To Order

Photo	Part No	Description	Price (each)	Stock
	41007336513	Upper apron	$2,074.04	To Order

Photo	Part No	Description	Price (each)	Stock
	41217336507	Roof bow, middle	$507.29	To Order

Photo	Part No	Description	Price (each)	Stock
	41007313069	Rear window frame upper part	$2,415.20	To Order

Photo	Part No	Description	Price (each)	Stock
	41217336525	Connection, cowl panel, lateral left	$232.72	To Order
	41217336526	Connection, cowl panel, lateral right	$232.72	To Order

Photo	Part No	Description	Price (each)	Stock
	41217336523	Connection, rear-window frame, top left	$222.28	To Order
	41217336524	Connection, rear-window frame, top right	$222.28	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	41007336505	Roof panel	41007336505 Roof panel	$3,131.67	1	TO
1	41007336503	Roof panel f panoramic roof	41007336503 Roof panel f panoramic roof	$2,730.94	1	TO
2	41317336504	Frame panoramic roof	41317336504 Frame panoramic roof	$1,490.44	1	TO
3	41007336513	Upper apron	41007336513 Upper apron	$2,074.04	1	TO
4	41217336507	Roof bow, middle	41217336507 Roof bow, middle	$507.29	1	TO
5	41007313069	Rear window frame upper part	41007313069 Rear window frame upper part	$2,415.20	1	TO
6	41217336525	Connection, cowl panel, lateral left	41217336525 Connection, cowl panel, lateral left	$232.72	1	TO
6	41217336526	Connection, cowl panel, lateral right	41217336526 Connection, cowl panel, lateral right	$232.72	1	TO
7	41217336523	Connection, rear-window frame, top left	41217336523 Connection, rear-window frame, top left	$222.28	1	TO
7	41217336524	Connection, rear-window frame, top right	41217336524 Connection, rear-window frame, top right	$222.28	1	TO
