Name: Bonnet closing system
Rating: 5.0 (1 reviews)

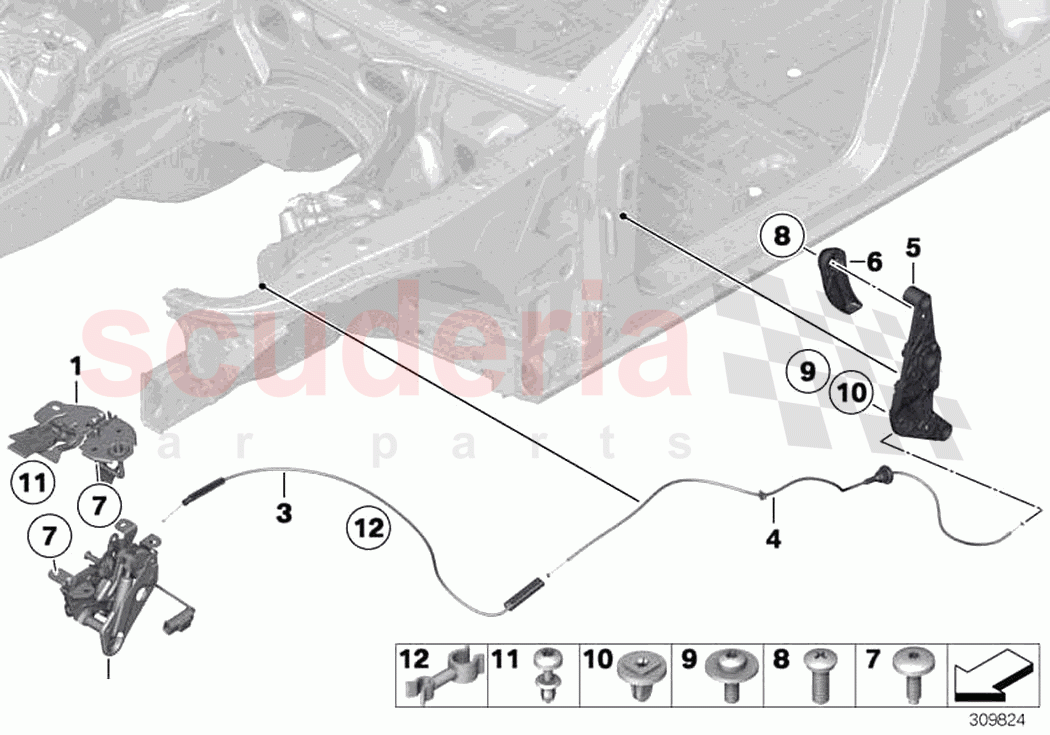

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51 23 7198452	Upper part of hood lock	$191.26	To Order

Photo	Part No	Description	Price (each)	Stock
	51 23 7184933	Lower part of hood lock	$439.03	To Order

Photo	Part No	Description	Price (each)	Stock
	51 23 7200016	Bowden cable, front	$89.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51239812330	Bowden cable, bonnet, rear	$60.37	To Order

Photo	Part No	Description	Price (each)	Stock
	51 23 7065119	Holder, bonnet actuator	$89.06	IN STOCK
	51 43 7065118	Bracket, hood catch end support	$101.66	To Order

Photo	Part No	Description	Price (each)	Stock
	51 23 7271154	Lever	$22.22	To Order

Photo	Part No	Description	Price (each)	Stock
	07147263759	Oval-head screw with washer	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 6959892	Phillips head screw for plastic material	$0.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51 16 8197908	Expanding rivet	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13 90 7532296	Spacer clip	$4.83	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	51 23 7198452	Upper part of hood lock	51 23 7198452 Upper part of hood lock	$191.26	1	TO
2	51 23 7184933	Lower part of hood lock	51 23 7184933 Lower part of hood lock	$439.03	1	TO
3	51 23 7200016	Bowden cable, front IN STOCK	51 23 7200016 Bowden cable, front IN STOCK	$89.21	1	IN
4	51239812330	Bowden cable, bonnet, rear	51239812330 Bowden cable, bonnet, rear	$60.37	1	TO
5	51 23 7065119	Holder, bonnet actuator IN STOCK	51 23 7065119 Holder, bonnet actuator IN STOCK	$89.06	1	IN
5	51 43 7065118	Bracket, hood catch end support	51 43 7065118 Bracket, hood catch end support	$101.66	1	TO
6	51 23 7271154	Lever	51 23 7271154 Lever to 04.2010	$22.22	1	TO
7	07147263759	Oval-head screw with washer	07147263759 Oval-head screw with washer ISA M6X21	$1.30	7	TO
8	07 14 6959892	Phillips head screw for plastic material IN STOCK	07 14 6959892 Phillips head screw for plastic material TS 5X13 IN STOCK	$0.95	1	IN
11	51 16 8197908	Expanding rivet	51 16 8197908 Expanding rivet	$0.83	2	TO
12	13 90 7532296	Spacer clip	13 90 7532296 Spacer clip	$4.83	1	TO

Bonnet Closing System

Rolls Royce Wraith RR5(2017-2023)
