Exhaust Turbocharger Oil Supply

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Exhaust turbocharger oil supply

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11428654386 Oil feed line, exhaust turbocharger $125.53 To Order
11428654387 Oil feed line, exhaust turbocharger $125.53 To Order
Photo Part No Description Price (each) Stock
07129903804 ISA screw $3.10 To Order
Photo Part No Description Price (each) Stock
11537610049 O-ring $1.79 To Order
Photo Part No Description Price (each) Stock
11 42 7602034 Hollow bolt $41.46 To Order
Photo Part No Description Price (each) Stock
07 11 9963201 Gasket ring $0.59 To Order
Photo Part No Description Price (each) Stock
11428654388 Exhaust turbocharger oil return line $93.26 To Order
11428654389 Exhaust turbocharger oil return line $93.26 To Order
Photo Part No Description Price (each) Stock
17 22 7800958 O-ring $4.77 IN STOCK

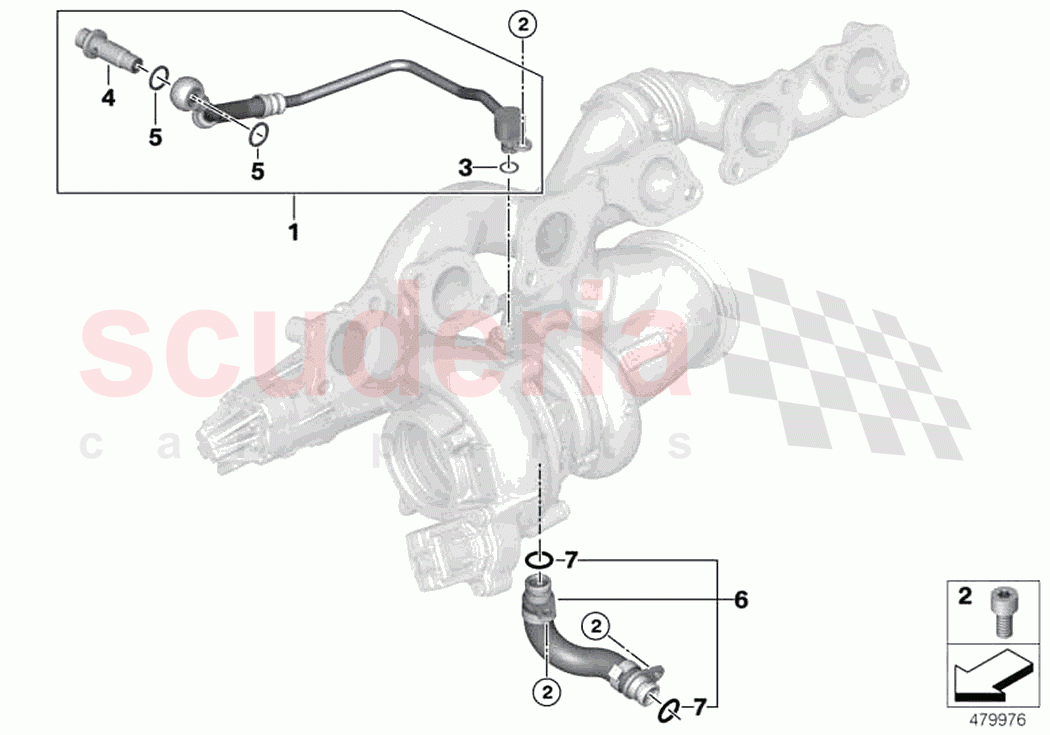

Exhaust turbocharger oil supply of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11428654386
Oil feed line, exhaust turbocharger
ZYL. 1-6 		$125.53 1
TO
1 11428654387
Oil feed line, exhaust turbocharger
ZYL. 7-12 		$125.53 1
TO
2 07129903804
ISA screw
M6X10-8.8-ZNS3 		$3.10 6
TO
3 11537610049
O-ring
9,7X1,5MM 		$1.79 2
TO
4 11 42 7602034
Hollow bolt
M14 		$41.46 2
TO
5 07 11 9963201
Gasket ring
A14X18-CU 		$0.59 4
TO
6 11428654388
Exhaust turbocharger oil return line
ZYL. 1-6 		$93.26 1
TO
6 11428654389
Exhaust turbocharger oil return line
ZYL. 7-12 		$93.26 1
TO
7 17 22 7800958
O-ring
13,65X2,62
IN STOCK 		$4.77 4
IN
