Timing And Valve Train Timing Chain

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Timing and valve train timing chain

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11318661671 Timing chain with tensioning rail $158.56 To Order
Photo Part No Description Price (each) Stock
11318661670 Timing chain with tensioning rail $158.56 To Order
Photo Part No Description Price (each) Stock
11 21 7571037 Sprocket $48.06 To Order
Photo Part No Description Price (each) Stock
07 11 9951453 Woodruff key $0.94 IN STOCK
Photo Part No Description Price (each) Stock
11 36 7567499 Adjustment unit, outlet camshaft $690.34 To Order
Photo Part No Description Price (each) Stock
11 36 7598001 Adjustment unit, inlet camshaft $690.34 To Order
Photo Part No Description Price (each) Stock
11 36 7598002 Adjustment unit, outlet camshaft $690.34 To Order
Photo Part No Description Price (each) Stock
11 36 7564346 Central screw $4.45 To Order
Photo Part No Description Price (each) Stock
11 31 7557741 Chain tensioner $131.53 To Order
Photo Part No Description Price (each) Stock
11 31 7574338 Guide rail $51.43 To Order
Photo Part No Description Price (each) Stock
11 31 7574334 Guide rail $51.43 To Order
Photo Part No Description Price (each) Stock
11 31 7584403 Bearing screw, self-locking $10.56 To Order
Photo Part No Description Price (each) Stock
11 31 7560666 Bearing screw $13.21 To Order
Photo Part No Description Price (each) Stock
11 31 7504455 Torx bolt $9.95 To Order
Photo Part No Description Price (each) Stock
11 31 7584402 Bearing screw, self-locking $5.26 To Order
Photo Part No Description Price (each) Stock
11 31 7582925 Bearing screw $10.56 To Order
Photo Part No Description Price (each) Stock
11 31 7574336 Slide rail $51.43 To Order
Photo Part No Description Price (each) Stock
11 12 7570995 ISA screw $1.45 To Order
Photo Part No Description Price (each) Stock
11 14 7574332 Chain guide $51.90 To Order
Photo Part No Description Price (each) Stock
07 11 9905400 Hex Bolt with washer $1.11 IN STOCK

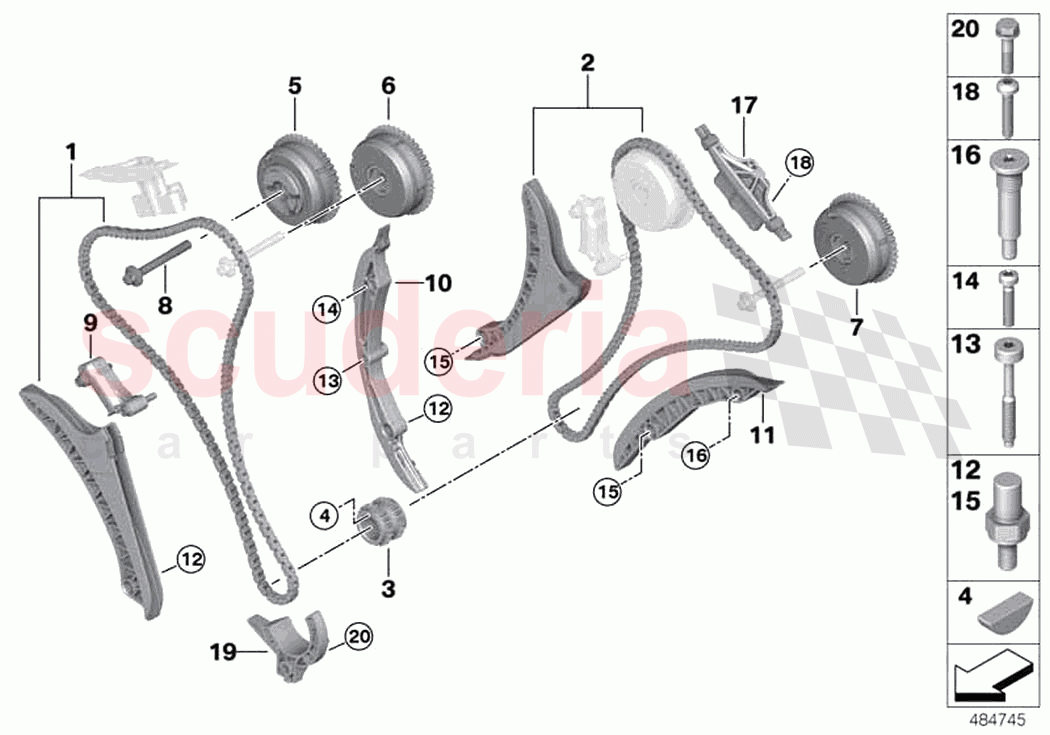

Timing and valve train timing chain of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11318661671
Timing chain with tensioning rail
ZYL. 1-6 		$158.56 1
TO
2 11318661670
Timing chain with tensioning rail
ZYL. 7-12 		$158.56 1
TO
3 11 21 7571037
Sprocket 		$48.06 1
TO
4 07 11 9951453
Woodruff key
4X5
IN STOCK 		$0.94 1
IN
5 11 36 7567499
Adjustment unit, outlet camshaft
ZYL. 1-6 		$690.34 1
TO
6 11 36 7598001
Adjustment unit, inlet camshaft 		$690.34 2
TO
7 11 36 7598002
Adjustment unit, outlet camshaft 		$690.34 1
TO
8 11 36 7564346
Central screw
M10X1X80 		$4.45 4
TO
9 11 31 7557741
Chain tensioner 		$131.53 2
TO
10 11 31 7574338
Guide rail 		$51.43 1
TO
11 11 31 7574334
Guide rail 		$51.43 1
TO
12 11 31 7584403
Bearing screw, self-locking 		$10.56 2
TO
13 11 31 7560666
Bearing screw 		$13.21 1
TO
14 11 31 7504455
Torx bolt
M8X38 		$9.95 1
TO
15 11 31 7584402
Bearing screw, self-locking 		$5.26 2
TO
16 11 31 7582925
Bearing screw 		$10.56 1
TO
17 11 31 7574336
Slide rail 		$51.43 2
TO
18 11 12 7570995
ISA screw
M7X45-8.8 		$1.45 4
TO
19 11 14 7574332
Chain guide 		$51.90 1
TO
20 07 11 9905400
Hex Bolt with washer
M6X25-ZNNIV SI
IN STOCK 		$1.11 1
IN
