Name: Armrest centre console
Rating: 4.7 (1 reviews)

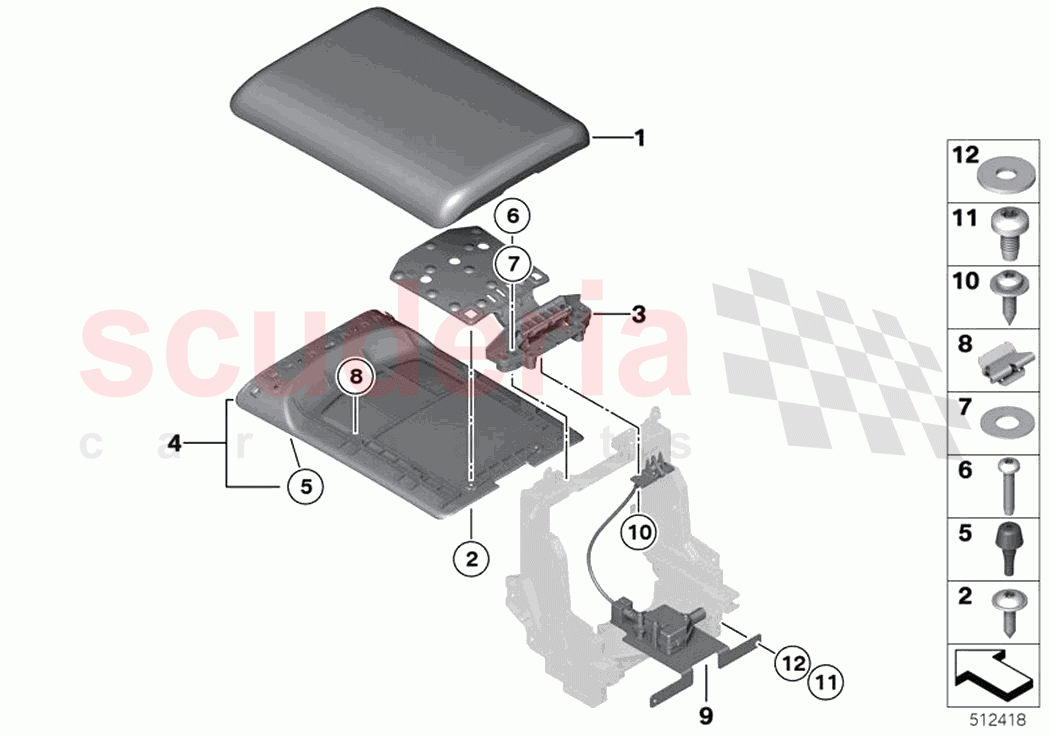

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51 16 9224534	Cover, centre arm rest	$991.03	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 7122392	Fillister head screw	$2.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51 16 9156903	Hinge, centre armrest	$534.05	To Order

Photo	Part No	Description	Price (each)	Stock
	51 16 9156904	Center armrest trim panel	$192.20	To Order

Photo	Part No	Description	Price (each)	Stock
	51169356180	Rubber buffer	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 9187248	Fillister head screw	$1.75	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 7135526	Washer	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 9187247	Clamp	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	51169311901	Locking mechanism	$385.28	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 7154525	Combi. fillister head self-tapping screw	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	07147148547	Fillister head screw	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	07 11 9905969	Washer	$1.63	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	51 16 9224534	Cover, centre arm rest	51 16 9224534 Cover, centre arm rest COLOUR NEUTRAL	$991.03	1	TO
2	07 14 7122392	Fillister head screw IN STOCK	07 14 7122392 Fillister head screw IN STOCK	$2.33	2	IN
3	51 16 9156903	Hinge, centre armrest	51 16 9156903 Hinge, centre armrest	$534.05	1	TO
4	51 16 9156904	Center armrest trim panel	51 16 9156904 Center armrest trim panel	$192.20	1	TO
5	51169356180	Rubber buffer	51169356180 Rubber buffer	$3.45	4	TO
6	07 14 9187248	Fillister head screw	07 14 9187248 Fillister head screw 12X30	$1.75	2	TO
7	07 14 7135526	Washer	07 14 7135526 Washer 6,4X15X0,5-ZNS3	$2.30	2	TO
8	07 14 9187247	Clamp	07 14 9187247 Clamp	$2.12	4	TO
9	51169311901	Locking mechanism	51169311901 Locking mechanism	$385.28	1	TO
10	07 14 7154525	Combi. fillister head self-tapping screw	07 14 7154525 Combi. fillister head self-tapping screw	$1.62	2	TO
11	07147148547	Fillister head screw	07147148547 Fillister head screw M4X8	$1.62	2	TO
12	07 11 9905969	Washer	07 11 9905969 Washer 6,4X18X1,6	$1.63	2	TO

Armrest Centre Console

Rolls Royce Dawn RR6(2017-2023)
