Name: Underbonnet screen
Rating: 4.8 (1 reviews)

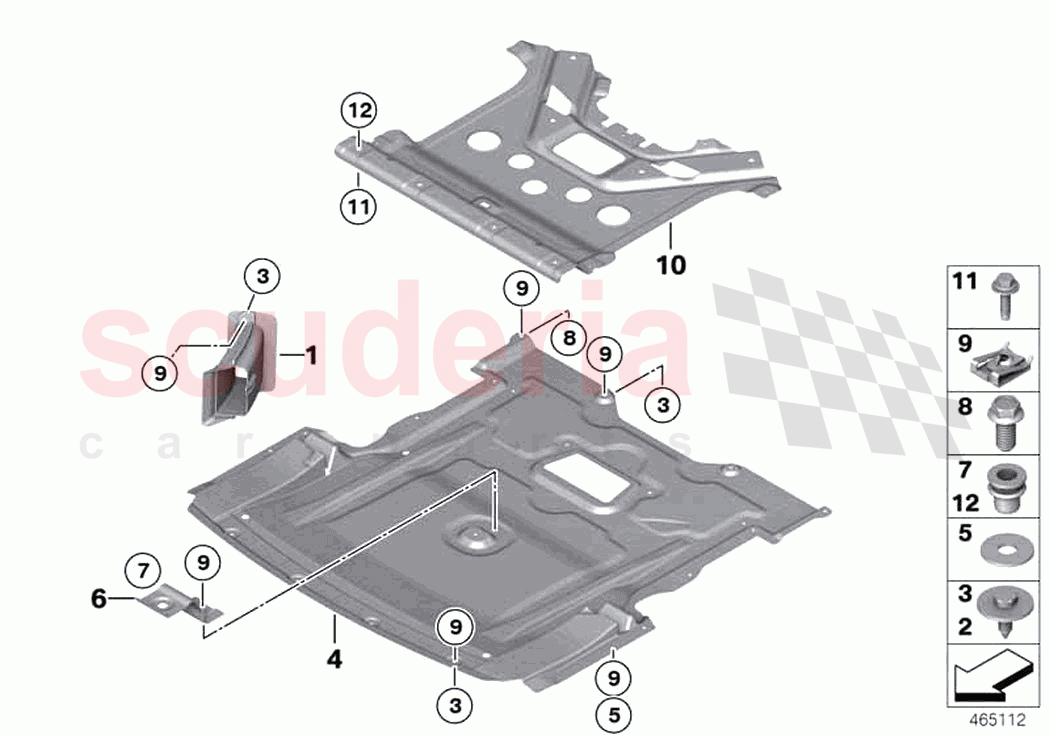

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	07 14 9126886	Hex Bolt	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51757367224	Underbonnet screen	$1,461.62	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 9160466	Securing bolt	$5.01	To Order

Photo	Part No	Description	Price (each)	Stock
	51 71 7065773	C-clip nut	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51717197500	Stiffening plate	$238.85	To Order

Photo	Part No	Description	Price (each)	Stock
	31106783907	Screw, self tapping	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	07 14 7284477	Blind rivet nut, flat headed	$5.13	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	51 75 7185167	Air channel left	51 75 7185167 Air channel left	$38.97	1	TO
1	51 75 7185168	Air channel right	51 75 7185168 Air channel right	$38.97	1	TO
2	07 14 9126886	Hex Bolt IN STOCK	07 14 9126886 Hex Bolt TS5X17 SW8 D=22 IN STOCK	$1.12	-	IN
3	07 14 9213164	Hex Bolt IN STOCK	07 14 9213164 Hex Bolt TS5X20 SW8 D=22 IN STOCK	$1.24	6	IN
3	07149481168	Hex Bolt	07149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	$2.21	6	TO
3	07 14 2644722	Hex Bolt	07 14 2644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	6	PE	Enquire
4	51757367224	Underbonnet screen	51757367224 Underbonnet screen	$1,461.62	1	TO
8	07 14 9160466	Securing bolt	07 14 9160466 Securing bolt TENSILOCK	$5.01	1	TO
9	51 71 7065773	C-clip nut IN STOCK	51 71 7065773 C-clip nut IN STOCK	$1.12	-	IN
10	51717197500	Stiffening plate	51717197500 Stiffening plate	$238.85	1	TO
11	31106783907	Screw, self tapping	31106783907 Screw, self tapping M8X33-10.9 ZNS3	$3.98	4	TO
12	07 14 7284477	Blind rivet nut, flat headed	07 14 7284477 Blind rivet nut, flat headed M8 DMAX=20MM	$5.13	4	TO

Underbonnet Screen

Rolls Royce Dawn RR6(2017-2023)
