Brace For Body Rear End

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Brace for body rear end

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51617367593 Diagonal rod, front, left $462.39 To Order
51617367594 Diagonal rod, front, right $462.39 To Order
Photo Part No Description Price (each) Stock
51617367596 Diagonal strut cross $947.24 To Order
Photo Part No Description Price (each) Stock
51617367597 Diagonal strut rear left $506.03 To Order
51617367598 Diagonal strut rear right $506.03 To Order
Photo Part No Description Price (each) Stock
51617376305 Transverse strut, rear $523.59 To Order
Photo Part No Description Price (each) Stock
51617367587 Connecting member, rear tunnel $154.56 To Order
Photo Part No Description Price (each) Stock
33 30 6760652 Hex Bolt with washer $3.98 To Order
Photo Part No Description Price (each) Stock
33177840535 Hex Bolt with washer $19.58 To Order
Photo Part No Description Price (each) Stock
07147075050 Hex Bolt with washer $5.01 To Order
Photo Part No Description Price (each) Stock
07119905497 Hex Bolt $4.18 To Order
Photo Part No Description Price (each) Stock
07 12 9904865 Hex nut $1.83 To Order
Photo Part No Description Price (each) Stock
31106783907 Screw, self tapping $3.98 To Order
Photo Part No Description Price (each) Stock
07 12 9904835 ISA screw $3.71 To Order
Photo Part No Description Price (each) Stock
41 00 7203905 Spacer bush $16.25 To Order
Photo Part No Description Price (each) Stock
07147408197 Hexagon screw with retainer $1.72 To Order
Photo Part No Description Price (each) Stock
51617483265 Bracket, underbody panelling,middle left $125.20 To Order
51617483266 Bracket,underbody panelling,middle right $125.20 To Order

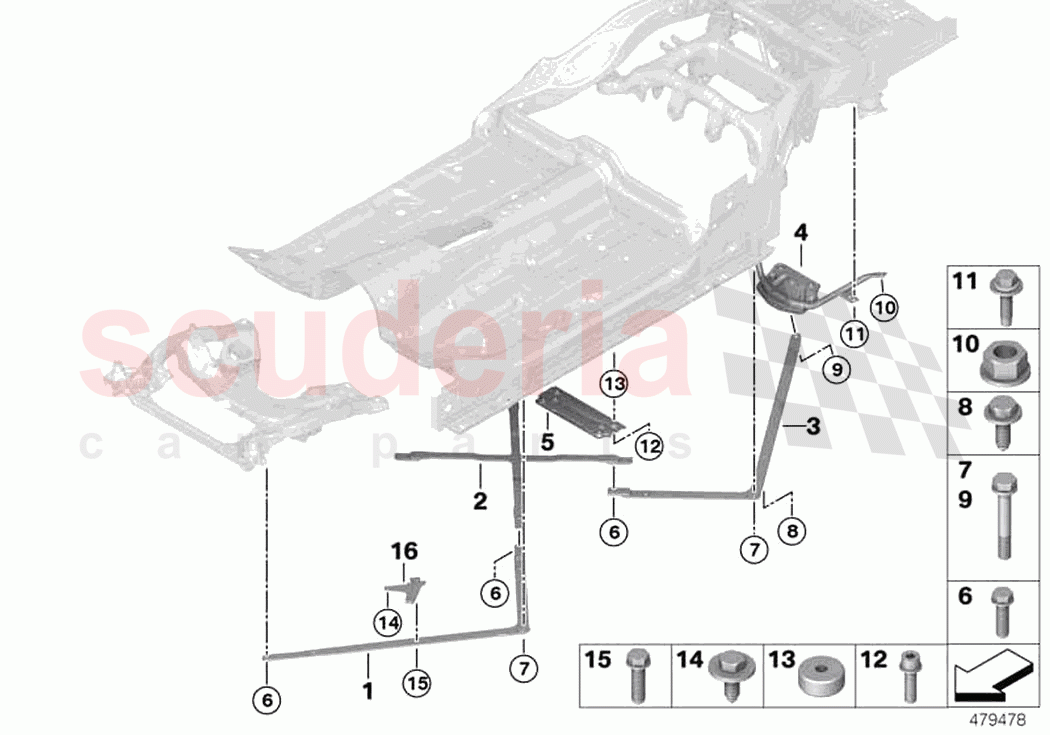

Brace for body rear end of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51617367593
Diagonal rod, front, left 		$462.39 1
TO
1 51617367594
Diagonal rod, front, right 		$462.39 1
TO
2 51617367596
Diagonal strut cross 		$947.24 1
TO
3 51617367597
Diagonal strut rear left 		$506.03 1
TO
3 51617367598
Diagonal strut rear right 		$506.03 1
TO
4 51617376305
Transverse strut, rear 		$523.59 1
TO
5 51617367587
Connecting member, rear tunnel 		$154.56 1
TO
6 33 30 6760652
Hex Bolt with washer
M10X35-Z1-10.9 		$3.98 16
TO
7 33177840535
Hex Bolt with washer
M14X1,5X65-10.9 		$19.58 4
TO
8 07147075050
Hex Bolt with washer
M8X25 		$5.01 5
TO
9 07119905497
Hex Bolt
M12X1,5X53-10.9 		$4.18 2
TO
10 07 12 9904865
Hex nut
AM10-10-ZNS3 		$1.83 2
TO
11 31106783907
Screw, self tapping
M8X33-10.9 ZNS3 		$3.98 4
TO
12 07 12 9904835
ISA screw
M8X30-U1-8.8 		$3.71 6
TO
13 41 00 7203905
Spacer bush 		$16.25 6
TO
14 07147408197
Hexagon screw with retainer
M6X16 		$1.72 3
TO
16 51617483265
Bracket, underbody panelling,middle left
to 07.2016 		$125.20 1
TO
16 51617483266
Bracket,underbody panelling,middle right
to 07.2016 		$125.20 1
TO
