Thermal Insulating Panels

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Find Your Part

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - THERMAL INSULATING PANELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670156485 TANK HEAT SHIELD $233.30 To Order
Photo Part No Description Price (each) Stock
670003758 FASTENER BUTTON $3.28 To Order
Photo Part No Description Price (each) Stock
670218891 SILENCER HEAT SHIELD $247.58 To Order
Photo Part No Description Price (each) Stock
675000278 SCREWM6X25 $1.72 To Order
Photo Part No Description Price (each) Stock
675001245 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
670160119 GEARBOX HEAT REPAIR $51.07 To Order
Photo Part No Description Price (each) Stock
670175152 NUT $3.84 To Order
Photo Part No Description Price (each) Stock
670175146 WASHER $2.87 To Order
Photo Part No Description Price (each) Stock
670175147 SCREW $7.72 To Order
Photo Part No Description Price (each) Stock
670160342 RH AXLE SHAFT SHIELD $49.29 To Order
Photo Part No Description Price (each) Stock
670160344 LH AXLE SHAFT SHIELD $54.97 To Order
Photo Part No Description Price (each) Stock
675001384 SCREW $1.57 To Order
Photo Part No Description Price (each) Stock
670213181 HEAT SHIELD $62.01 To Order
Photo Part No Description Price (each) Stock
670213182 HEAT SHIELD $54.26 To Order
Photo Part No Description Price (each) Stock
670213184 HEAT SHIELD $54.26 To Order
Photo Part No Description Price (each) Stock
670213185 HEAT SHIELD $54.26 To Order
Photo Part No Description Price (each) Stock
670213186 HEAT SHIELD $54.26 To Order
Photo Part No Description Price (each) Stock
670213187 HEAT SHIELD $62.01 To Order
Photo Part No Description Price (each) Stock
670213183 HEAT SHIELD $54.26 To Order
Photo Part No Description Price (each) Stock
670213178 CLAMP $6.40 To Order

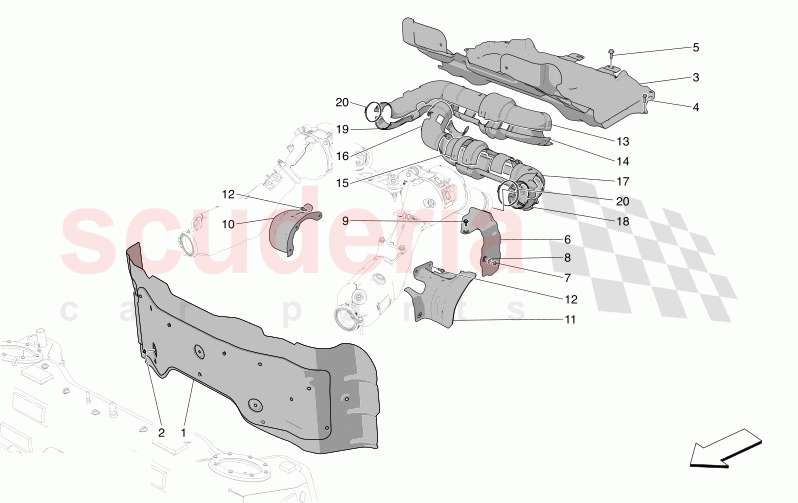

THERMAL INSULATING PANELS of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670156485
TANK HEAT SHIELD 		$233.30 1
TO
2 670003758
FASTENER BUTTON 		$3.28 5
TO
3 670218891
SILENCER HEAT SHIELD
Bespoke Assembly Number 7000404 - 99999999; 		$247.58 1
TO
4 675000278
SCREWM6X25 		$1.72 8
TO
5 675001245
SCREW 		$1.85 2
TO
6 670160119
GEARBOX HEAT REPAIR 		$51.07 1
TO
7 670175152
NUT 		$3.84 1
TO
8 670175146
WASHER 		$2.87 1
TO
9 670175147
SCREW 		$7.72 2
TO
10 670160342
RH AXLE SHAFT SHIELD 		$49.29 1
TO
11 670160344
LH AXLE SHAFT SHIELD 		$54.97 1
TO
12 675001384
SCREW 		$1.57 6
TO
13 670213181
HEAT SHIELD 		$62.01 1
TO
14 670213182
HEAT SHIELD 		$54.26 1
TO
15 670213184
HEAT SHIELD 		$54.26 1
TO
16 670213185
HEAT SHIELD 		$54.26 1
TO
17 670213186
HEAT SHIELD 		$54.26 1
TO
18 670213187
HEAT SHIELD 		$62.01 1
TO
19 670213183
HEAT SHIELD 		$54.26 1
TO
20 670213178
CLAMP 		$6.40 10
TO
