REAR CHASSIS of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

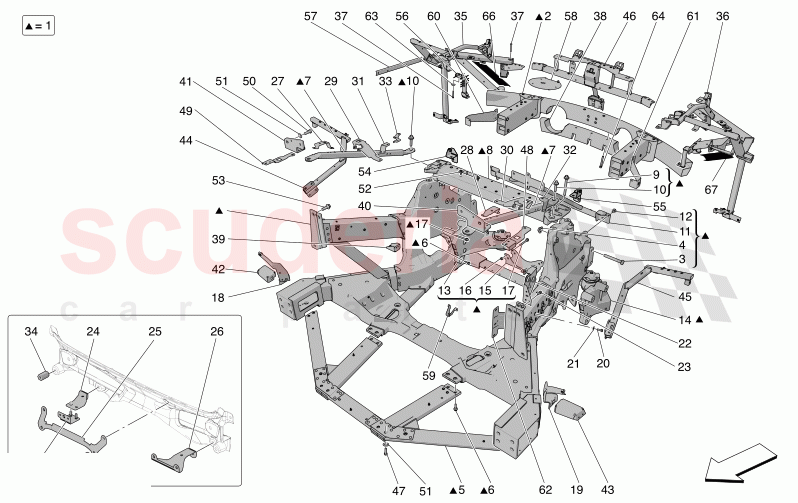

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - REAR CHASSIS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670158329	REAR FRAME	$12,311.63	To Order
	670158329	REAR FRAME	$12,311.63	To Order

Photo	Part No	Description	Price (each)	Stock
	670216672	REAR CRASH-BOX CROSS MEMBER	$1,144.34	To Order
	670216672	REAR CRASH-BOX CROSS MEMBER	$1,144.34	To Order

Photo	Part No	Description	Price (each)	Stock
	670173670	SCREW	$18.21	To Order
	670173670	SCREW	$18.21	To Order

Photo	Part No	Description	Price (each)	Stock
	675000082	NUT M14	$4.99	IN STOCK
	675000082	NUT M14	$4.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670216673	TANK BRACKET	$676.64	To Order
	670216673	TANK BRACKET	$676.64	To Order

Photo	Part No	Description	Price (each)	Stock
	670176387	SCREW	$18.21	To Order
	670176387	SCREW	$18.21	To Order

Photo	Part No	Description	Price (each)	Stock
	670173635	TIE ROD	$80.49	To Order
	670173635	TIE ROD	$80.49	To Order

Photo	Part No	Description	Price (each)	Stock
	670173636	CROSS BAR	$1,061.11	To Order
	670173636	CROSS BAR	$1,061.11	To Order

Photo	Part No	Description	Price (each)	Stock
	670173669	SCREW	$34.99	To Order
	670173669	SCREW	$34.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	$2.45	To Order
	675001345	SCREW	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670173637	BRACKET	$352.20	To Order
	670173637	BRACKET	$352.20	To Order

Photo	Part No	Description	Price (each)	Stock
	675000174	SCREWM8	$1.85	To Order
	675000174	SCREWM8	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	670173638	RH BRACKET	$774.35	To Order
	670173638	RH BRACKET	$774.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670173640	LH BRACKET	$774.35	To Order
	670173640	LH BRACKET	$774.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670173642	BRACKET	$103.12	To Order
	670173642	BRACKET	$103.12	To Order

Photo	Part No	Description	Price (each)	Stock
	675001182	NUT	$3.93	To Order
	675001182	NUT	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	670173681	SCREW	$41.84	To Order
	670173681	SCREW	$41.84	To Order

Photo	Part No	Description	Price (each)	Stock
	670160258	RH SIDE MEMBER	$123.74	To Order
	670160258	RH SIDE MEMBER	$123.74	To Order

Photo	Part No	Description	Price (each)	Stock
	670160259	LH SIDE MEMBER	$123.74	To Order
	670160259	LH SIDE MEMBER	$123.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675001355	SCREW	$2.47	To Order
	675001355	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	675001364	WASHER	$1.68	To Order
	675001364	WASHER	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670158009	FUSES CASE BRACKET	$53.81	To Order
	670158009	FUSES CASE BRACKET	$53.81	To Order

Photo	Part No	Description	Price (each)	Stock
	675001384	SCREW	$1.57	To Order
	675001384	SCREW	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	670177633	RH SIDE BRACKET	$25.46	To Order
	670177633	RH SIDE BRACKET	$25.46	To Order

Photo	Part No	Description	Price (each)	Stock
	670177634	BRACKET	$30.63	To Order
	670177634	BRACKET	$30.63	To Order

Photo	Part No	Description	Price (each)	Stock
	670177635	LH SIDE BRACKET	$29.54	To Order
	670177635	LH SIDE BRACKET	$29.54	To Order

Photo	Part No	Description	Price (each)	Stock
	670177636	RH UPPER BRACKET	$26.90	To Order
	670177636	RH UPPER BRACKET	$26.90	To Order

Photo	Part No	Description	Price (each)	Stock
	670177637	BRACKET	$26.90	To Order
	670177637	BRACKET	$26.90	To Order

Photo	Part No	Description	Price (each)	Stock
	670219339	BRACKET	$49.09	To Order
	670219339	BRACKET	$49.09	To Order

Photo	Part No	Description	Price (each)	Stock
	670219340	BRACKET	$49.09	To Order
	670219340	BRACKET	$49.09	To Order

Photo	Part No	Description	Price (each)	Stock
	670177641	RH LOWER BRACKET	$15.93	To Order
	670177641	RH LOWER BRACKET	$15.93	To Order

Photo	Part No	Description	Price (each)	Stock
	670177642	LH LOWER BRACKET	$15.93	To Order
	670177642	LH LOWER BRACKET	$15.93	To Order

Photo	Part No	Description	Price (each)	Stock
	670177643	RH BRACKET	$20.27	To Order
	670177643	RH BRACKET	$20.27	To Order

Photo	Part No	Description	Price (each)	Stock
	670177644	SPACER	$8.21	To Order
	670177644	SPACER	$8.21	To Order

Photo	Part No	Description	Price (each)	Stock
	670306923	RH REAR FENDER BRACKET	$722.48	To Order
	670306923	RH REAR FENDER BRACKET	$722.48	To Order

Photo	Part No	Description	Price (each)	Stock
	670306934	LH REAR FENDER BRACKET	$722.48	To Order
	670306934	LH REAR FENDER BRACKET	$722.48	To Order

Photo	Part No	Description	Price (each)	Stock
	675001398	SCREW	$1.38	To Order
	675001398	SCREW	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	670174695	LOWER TRIM	$52.34	To Order
	670174695	LOWER TRIM	$52.34	To Order

Photo	Part No	Description	Price (each)	Stock
	670173644	LH BRACKET	$63.44	To Order
	670173644	LH BRACKET	$63.44	To Order

Photo	Part No	Description	Price (each)	Stock
	670173643	RH BRACKET	$63.44	To Order
	670173643	RH BRACKET	$63.44	To Order

Photo	Part No	Description	Price (each)	Stock
	670215578	RH MUDGUARD UPPER REAR TRIM	$56.35	To Order
	670215578	RH MUDGUARD UPPER REAR TRIM	$56.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670215535	LH MUDGUARD UPPER REAR TRIM	$56.35	To Order
	670215535	LH MUDGUARD UPPER REAR TRIM	$56.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670174461	RH MUDGUARD UPPER REAR TRIM	$148.87	To Order
	670174461	RH MUDGUARD UPPER REAR TRIM	$148.87	To Order

Photo	Part No	Description	Price (each)	Stock
	670174463	LH MUDGUARD UPPER REAR TRIM	$153.30	To Order
	670174463	LH MUDGUARD UPPER REAR TRIM	$153.30	To Order

Photo	Part No	Description	Price (each)	Stock
	670156858	REAR CROSS MEMBER	$301.54	To Order
	670156858	REAR CROSS MEMBER	$301.54	To Order

Photo	Part No	Description	Price (each)	Stock
	675001456	SCREW	$6.50	To Order
	675001456	SCREW	$6.50	To Order

Photo	Part No	Description	Price (each)	Stock
	670213032	LH PLATE	$33.78	To Order
	670213032	LH PLATE	$33.78	To Order

Photo	Part No	Description	Price (each)	Stock
	670213031	RH PLATE	$33.78	To Order
	670213031	RH PLATE	$33.78	To Order

Photo	Part No	Description	Price (each)	Stock
	675001346	SCREW	$13.39	To Order
	675001346	SCREW	$13.39	To Order

Photo	Part No	Description	Price (each)	Stock
	675001347	WASHER	$3.27	To Order
	675001347	WASHER	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	670213280	BRACKET	$30.63	To Order
	670213280	BRACKET	$30.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001391	SCREW	$37.40	To Order
	675001391	SCREW	$37.40	To Order

Photo	Part No	Description	Price (each)	Stock
	670174706	BRACKET	$58.03	To Order
	670174706	BRACKET	$58.03	To Order

Photo	Part No	Description	Price (each)	Stock
	670174707	BRACKET	$58.03	To Order
	670174707	BRACKET	$58.03	To Order

Photo	Part No	Description	Price (each)	Stock
	670213864	BRACKET	$94.93	To Order
	670213864	BRACKET	$94.93	To Order

Photo	Part No	Description	Price (each)	Stock
	670174460	BRACKET	$19.17	To Order
	670174460	BRACKET	$19.17	To Order

Photo	Part No	Description	Price (each)	Stock
	670174750	PLATE	$21.24	To Order
	670174750	PLATE	$21.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670174697	STRUT	$37.99	To Order
	670174697	STRUT	$37.99	To Order

Photo	Part No	Description	Price (each)	Stock
	670174699	BRACKET	$52.70	To Order
	670174699	BRACKET	$52.70	To Order

Photo	Part No	Description	Price (each)	Stock
	670174700	BRACKET	$52.70	To Order
	670174700	BRACKET	$52.70	To Order

Photo	Part No	Description	Price (each)	Stock
	670158010	BRACKET	$39.68	To Order
	670158010	BRACKET	$39.68	To Order

Photo	Part No	Description	Price (each)	Stock
	675001253	WASHER	$2.30	To Order
	675001253	WASHER	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	670215523	REAR BRACKET	$41.48	To Order
	670215523	REAR BRACKET	$41.48	To Order

Photo	Part No	Description	Price (each)	Stock
	670306937	RH PROTECTIVE FILM	$38.45	To Order
	670306937	RH PROTECTIVE FILM	$38.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670306938	LH PROTECTIVE FILM	$38.45	To Order
	670306938	LH PROTECTIVE FILM	$38.45	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Description	Part Details
	670158329	REAR FRAME	from $12,311.63
1 REAR FRAME $12,311.63 1 TO 1 REAR FRAME $12,311.63 1 TO
	670216672	REAR CRASH-BOX CROSS MEMBER	from $1,144.34
2 REAR CRASH-BOX CROSS MEMBER $1,144.34 1 TO 2 REAR CRASH-BOX CROSS MEMBER $1,144.34 1 TO
	670173670	SCREW	from $18.21
3 SCREW $18.21 4 TO 3 SCREW $18.21 4 TO
	675000082	NUT M14	from $4.99
4 NUT M14 IN STOCK $4.99 4 IN 4 NUT M14 IN STOCK $4.99 4 IN
	670216673	TANK BRACKET	from $676.64
5 TANK BRACKET $676.64 1 TO 5 TANK BRACKET $676.64 1 TO
	670176387	SCREW	from $18.21
6 SCREW $18.21 12 TO 6 SCREW $18.21 12 TO
	670173635	TIE ROD	from $80.49
7 TIE ROD $80.49 2 TO 7 TIE ROD $80.49 2 TO
	670173636	CROSS BAR	from $1,061.11
8 CROSS BAR $1,061.11 1 TO 8 CROSS BAR $1,061.11 1 TO
	670173669	SCREW	from $34.99
9 SCREW $34.99 2 TO 9 SCREW $34.99 2 TO
	675001345	SCREW	from $2.45
10 SCREW $2.45 4 TO 10 SCREW $2.45 4 TO
	670173637	BRACKET	from $352.20
11 BRACKET $352.20 1 TO 11 BRACKET $352.20 1 TO
	675000174	SCREWM8	from $1.85
12 SCREWM8 $1.85 7 TO 12 SCREWM8 $1.85 7 TO
	670173638	RH BRACKET	from $774.35
13 RH BRACKET $774.35 1 TO 13 RH BRACKET $774.35 1 TO
	670173640	LH BRACKET	from $774.35
14 LH BRACKET $774.35 1 TO 14 LH BRACKET $774.35 1 TO
	670173642	BRACKET	from $103.12
15 BRACKET $103.12 1 TO 15 BRACKET $103.12 1 TO
	675001182	NUT	from $3.93
16 NUT $3.93 4 TO 16 NUT $3.93 4 TO
	670173681	SCREW	from $41.84
17 SCREW $41.84 8 TO 17 SCREW $41.84 8 TO
	670160258	RH SIDE MEMBER	from $123.74
18 RH SIDE MEMBER $123.74 1 TO 18 RH SIDE MEMBER $123.74 1 TO
	670160259	LH SIDE MEMBER	from $123.74
19 LH SIDE MEMBER $123.74 1 TO 19 LH SIDE MEMBER $123.74 1 TO
	675001355	SCREW	from $2.47
20 SCREW $2.47 10 TO 20 SCREW $2.47 10 TO
	675001364	WASHER	from $1.68
21 WASHER $1.68 24 TO 21 WASHER $1.68 24 TO
	670158009	FUSES CASE BRACKET	from $53.81
22 FUSES CASE BRACKET $53.81 1 TO 22 FUSES CASE BRACKET $53.81 1 TO
	675001384	SCREW	from $1.57
23 SCREW $1.57 1 TO 23 SCREW $1.57 1 TO
	670177633	RH SIDE BRACKET	from $25.46
24 RH SIDE BRACKET $25.46 1 TO 24 RH SIDE BRACKET $25.46 1 TO
	670177634	BRACKET	from $30.63
25 BRACKET $30.63 1 TO 25 BRACKET $30.63 1 TO
	670177635	LH SIDE BRACKET	from $29.54
26 LH SIDE BRACKET $29.54 1 TO 26 LH SIDE BRACKET $29.54 1 TO
	670177636	RH UPPER BRACKET	from $26.90
27 RH UPPER BRACKET $26.90 1 TO 27 RH UPPER BRACKET $26.90 1 TO
	670177637	BRACKET	from $26.90
28 BRACKET $26.90 1 TO 28 BRACKET $26.90 1 TO
	670219339	BRACKET	from $49.09
29 BRACKET $49.09 1 TO 29 BRACKET $49.09 1 TO
	670219340	BRACKET	from $49.09
30 BRACKET $49.09 1 TO 30 BRACKET $49.09 1 TO
	670177641	RH LOWER BRACKET	from $15.93
31 RH LOWER BRACKET $15.93 1 TO 31 RH LOWER BRACKET $15.93 1 TO
	670177642	LH LOWER BRACKET	from $15.93
32 LH LOWER BRACKET $15.93 1 TO 32 LH LOWER BRACKET $15.93 1 TO
	670177643	RH BRACKET	from $20.27
33 RH BRACKET $20.27 1 TO 33 RH BRACKET $20.27 1 TO
	670177644	SPACER	from $8.21
34 SPACER $8.21 6 TO 34 SPACER $8.21 6 TO
	670306923	RH REAR FENDER BRACKET	from $722.48
35 RH REAR FENDER BRACKET $722.48 1 TO 35 RH REAR FENDER BRACKET $722.48 1 TO
	670306934	LH REAR FENDER BRACKET	from $722.48
36 LH REAR FENDER BRACKET $722.48 1 TO 36 LH REAR FENDER BRACKET $722.48 1 TO
	675001398	SCREW	from $1.38
37 SCREW $1.38 12 TO 37 SCREW $1.38 12 TO
	670174695	LOWER TRIM	from $52.34
39 LOWER TRIM $52.34 1 TO 39 LOWER TRIM $52.34 1 TO
	670173644	LH BRACKET	from $63.44
40 LH BRACKET $63.44 1 TO 40 LH BRACKET $63.44 1 TO
	670173643	RH BRACKET	from $63.44
41 RH BRACKET $63.44 1 TO 41 RH BRACKET $63.44 1 TO
	670215578	RH MUDGUARD UPPER REAR TRIM	from $56.35
42 RH MUDGUARD UPPER REAR TRIM $56.35 1 TO 42 RH MUDGUARD UPPER REAR TRIM $56.35 1 TO
	670215535	LH MUDGUARD UPPER REAR TRIM	from $56.35
43 LH MUDGUARD UPPER REAR TRIM $56.35 1 TO 43 LH MUDGUARD UPPER REAR TRIM $56.35 1 TO
	670174461	RH MUDGUARD UPPER REAR TRIM	from $148.87
44 RH MUDGUARD UPPER REAR TRIM $148.87 1 TO 44 RH MUDGUARD UPPER REAR TRIM $148.87 1 TO
	670174463	LH MUDGUARD UPPER REAR TRIM	from $153.30
45 LH MUDGUARD UPPER REAR TRIM $153.30 1 TO 45 LH MUDGUARD UPPER REAR TRIM $153.30 1 TO
	670156858	REAR CROSS MEMBER	from $301.54
46 REAR CROSS MEMBER $301.54 1 TO 46 REAR CROSS MEMBER $301.54 1 TO
	675001456	SCREW	from $6.50
47 SCREW $6.50 4 TO 47 SCREW $6.50 4 TO
	670213032	LH PLATE	from $33.78
48 LH PLATE $33.78 1 TO 48 LH PLATE $33.78 1 TO
	670213031	RH PLATE	from $33.78
49 RH PLATE $33.78 1 TO 49 RH PLATE $33.78 1 TO
	675001346	SCREW	from $13.39
50 SCREW $13.39 6 TO 50 SCREW $13.39 6 TO
	675001347	WASHER	from $3.27
51 WASHER $3.27 10 TO 51 WASHER $3.27 10 TO
	670213280	BRACKET	from $30.63
52 BRACKET $30.63 1 TO 52 BRACKET $30.63 1 TO
	675001391	SCREW	from $37.40
53 SCREW $37.40 14 TO 53 SCREW $37.40 14 TO
	670174706	BRACKET	from $58.03
54 BRACKET $58.03 1 TO 54 BRACKET $58.03 1 TO
	670174707	BRACKET	from $58.03
55 BRACKET $58.03 1 TO 55 BRACKET $58.03 1 TO
	670213864	BRACKET	from $94.93
56 BRACKET $94.93 2 TO 56 BRACKET $94.93 2 TO
	670174460	BRACKET	from $19.17
57 BRACKET $19.17 2 TO 57 BRACKET $19.17 2 TO
	670174750	PLATE	from $21.24
58 PLATE $21.24 1 TO 58 PLATE $21.24 1 TO
	670174697	STRUT	from $37.99
59 STRUT $37.99 2 TO 59 STRUT $37.99 2 TO
	670174699	BRACKET	from $52.70
60 BRACKET $52.70 1 TO 60 BRACKET $52.70 1 TO
	670174700	BRACKET	from $52.70
61 BRACKET $52.70 1 TO 61 BRACKET $52.70 1 TO
	670158010	BRACKET	from $39.68
62 BRACKET $39.68 1 TO 62 BRACKET $39.68 1 TO
	675001253	WASHER	from $2.30
63 WASHER $2.30 4 TO 63 WASHER $2.30 4 TO
	670215523	REAR BRACKET	from $41.48
65 REAR BRACKET $41.48 1 TO 65 REAR BRACKET $41.48 1 TO
	670306937	RH PROTECTIVE FILM	from $38.45
66 RH PROTECTIVE FILM $38.45 1 TO 66 RH PROTECTIVE FILM $38.45 1 TO
	670306938	LH PROTECTIVE FILM	from $38.45
67 LH PROTECTIVE FILM $38.45 1 TO 67 LH PROTECTIVE FILM $38.45 1 TO

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Rear Chassis

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - REAR CHASSIS
