Name: WHEELHOUSE AND LIDS
Rating: 4.1 (1 reviews)

Diagram
INFO

WHEELHOUSE AND LIDS of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - WHEELHOUSE AND LIDS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670157547	LH FRONT WHEELHOUSE GUARD, FRONT SIDE	$325.38	To Order
	670157548	RH FRONT WHEELHOUSE GUARD, FRONT SIDE	$325.38	To Order

Photo	Part No	Description	Price (each)	Stock
	670213670	LH FRONT WHEELHOUSE GUARD, REAR SIDE	$212.66	To Order
	670213671	RH FRONT WHEELHOUSE GUARD, REAR SIDE	$212.66	To Order

Photo	Part No	Description	Price (each)	Stock
	670215255	LH FRONT WHEELHOUSE GUARD	$190.33	To Order
	670215256	RH FRONT WHEELHOUSE GUARD	$190.33	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670181896	LH REAR WHEELHOUSE GUARD, FRONT SIDE	$508.25	To Order
	670181895	RH REAR WHEELHOUSE GUARD, FRONT SIDE	$508.25	To Order

Photo	Part No	Description	Price (each)	Stock
	670220489	LH REAR WHEELHOUSE GUARD, REAR SIDE	$233.93	To Order
	670181897	RH REAR WHEELHOUSE GUARD, REAR SIDE	$292.42	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670214354	NUT	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	670303713	CLIP	$2.87	To Order

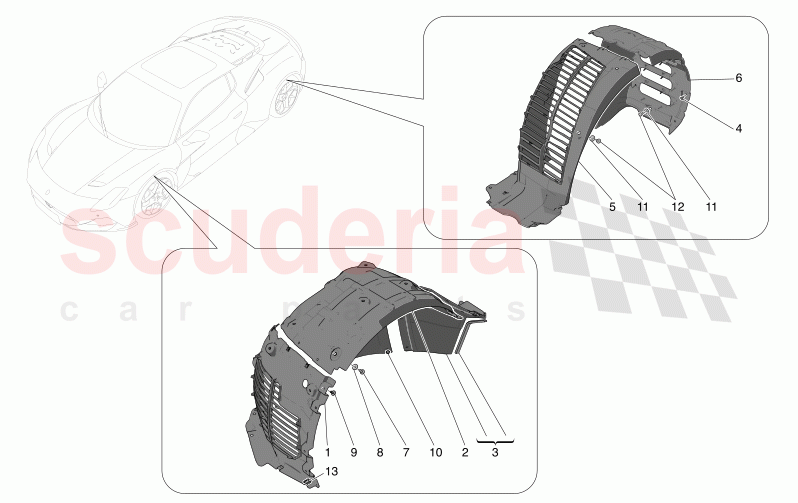

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	670157547	LH FRONT WHEELHOUSE GUARD, FRONT SIDE	670157547 LH FRONT WHEELHOUSE GUARD, FRONT SIDE EU AU CN UK JP ME JRH IN KO;	$325.38	1	TO
	1	670157548	RH FRONT WHEELHOUSE GUARD, FRONT SIDE	670157548 RH FRONT WHEELHOUSE GUARD, FRONT SIDE EU AU CN UK JP ME JRH IN KO;	$325.38	1	TO
	2	670213670	LH FRONT WHEELHOUSE GUARD, REAR SIDE	670213670 LH FRONT WHEELHOUSE GUARD, REAR SIDE	$212.66	1	TO
	2	670213671	RH FRONT WHEELHOUSE GUARD, REAR SIDE	670213671 RH FRONT WHEELHOUSE GUARD, REAR SIDE	$212.66	1	TO
	3	670215255	LH FRONT WHEELHOUSE GUARD	670215255 LH FRONT WHEELHOUSE GUARD	$190.33	1	TO
	3	670215256	RH FRONT WHEELHOUSE GUARD	670215256 RH FRONT WHEELHOUSE GUARD	$190.33	1	TO
	675001390		SCREW	from $2.28
4 SCREW IN STOCK $2.28 10 IN 9 SCREW IN STOCK $2.28 14 IN
	5	670181896	LH REAR WHEELHOUSE GUARD, FRONT SIDE	670181896 LH REAR WHEELHOUSE GUARD, FRONT SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	$508.25	1	TO
	5	670181895	RH REAR WHEELHOUSE GUARD, FRONT SIDE	670181895 RH REAR WHEELHOUSE GUARD, FRONT SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	$508.25	1	TO
	6	670220489	LH REAR WHEELHOUSE GUARD, REAR SIDE	670220489 LH REAR WHEELHOUSE GUARD, REAR SIDE Bespoke Assembly Number 7000446 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION; EU AU CN UK JP ME JRH IN KO;	$233.93	1	TO
	6	670181897	RH REAR WHEELHOUSE GUARD, REAR SIDE	670181897 RH REAR WHEELHOUSE GUARD, REAR SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION; EU AU CN UK JP ME JRH IN KO;	$292.42	1	TO
	675001383		SCREW	from $3.93
7 SCREW $3.93 20 TO 12 SCREW $3.93 38 TO
	675001257		WASHER	from $1.86
8 WASHER $1.86 20 TO 11 WASHER $1.86 38 TO
	10	670214354	NUT	670214354 NUT	$1.92	6	TO
	13	670303713	CLIP	670303713 CLIP Bespoke Assembly Number 7002301 - 99999999;	$2.87	4	TO

Wheelhouse And Lids

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - WHEELHOUSE AND LIDS
