Cooling System: Nourice And Lines

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Find Your Part

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - COOLING SYSTEM: NOURICE AND LINES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670157156 HOSE ADDITIONAL RADIATOR COOLANT $52.57 To Order
Photo Part No Description Price (each) Stock
670157478 RIGID PIPE $146.74 To Order
Photo Part No Description Price (each) Stock
675001358 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
670157032 PIPE $57.61 To Order
Photo Part No Description Price (each) Stock
670215314 WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER $431.45 To Order
670215314 WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER $431.45 To Order
Photo Part No Description Price (each) Stock
670158091 BRACKET $36.41 To Order
Photo Part No Description Price (each) Stock
670156923 WATER OUTLET SLEEVE $295.67 To Order
Photo Part No Description Price (each) Stock
670173060 HEATER WATER DELIVERY SLEEVE $40.18 To Order
670175339 HEATER WATER DELIVERY SLEEVE $44.14 To Order
Photo Part No Description Price (each) Stock
670156645 WATER RETURN SLEEVE FROM HEATER $73.26 To Order
670175338 WATER RETURN SLEEVE FROM HEATER $73.26 To Order
Photo Part No Description Price (each) Stock
675002375 COLLAR $1.51 To Order
Photo Part No Description Price (each) Stock
670305105 PIPE BETWEEN ENGINE AND SECONDARY RADIATOR $463.20 To Order
Photo Part No Description Price (each) Stock
670157053 HEATER WATER DELIVERY SLEEVE $44.14 To Order
Photo Part No Description Price (each) Stock
670157050 SLEEVE $60.12 To Order
Photo Part No Description Price (each) Stock
670156654 PIPE BETWEEN SECONDARY RADIATOR AND PUMP $54.85 To Order
Photo Part No Description Price (each) Stock
670157155 RIGID PIPE $140.16 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.36 To Order
Photo Part No Description Price (each) Stock
670156652 RIGID PIPE $125.92 To Order
Photo Part No Description Price (each) Stock
670157165 BRACKET ASSEMBLY $33.30 To Order
Photo Part No Description Price (each) Stock
675001070 SCREW $1.57 To Order
Photo Part No Description Price (each) Stock
675000365 SCREWM6X18 $2.95 To Order
Photo Part No Description Price (each) Stock
670175631 CLIP $3.68 To Order
Photo Part No Description Price (each) Stock
670308847 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
675001429 WASHER $3.06 To Order
Photo Part No Description Price (each) Stock
675000658 SNAP HOSE CLAMP $6.32 IN STOCK

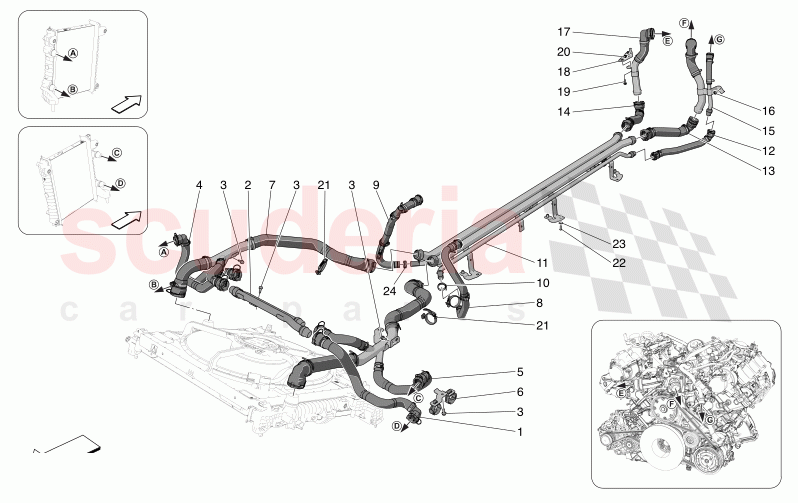

COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670157156
HOSE ADDITIONAL RADIATOR COOLANT 		$52.57 1
TO
2 670157478
RIGID PIPE 		$146.74 1
TO
3 675001358
SCREW 		$1.23 6
TO
4 670157032
PIPE 		$57.61 1
TO

670215314

WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER

from $431.45

6 670158091
BRACKET 		$36.41 2
TO
7 670156923
WATER OUTLET SLEEVE 		$295.67 1
TO
8 670173060
HEATER WATER DELIVERY SLEEVE
EU CN US CD JP ME KO; 		$40.18 1
TO
8 670175339
HEATER WATER DELIVERY SLEEVE
AU UK JRH IN SA; 		$44.14 1
TO
9 670156645
WATER RETURN SLEEVE FROM HEATER
EU CN US CD JP ME KO; 		$73.26 1
TO
9 670175338
WATER RETURN SLEEVE FROM HEATER
AU UK JRH IN SA; 		$73.26 1
TO
10 675002375
COLLAR 		$1.51 1
TO
11 670305105
PIPE BETWEEN ENGINE AND SECONDARY RADIATOR 		$463.20 1
TO
12 670157053
HEATER WATER DELIVERY SLEEVE 		$44.14 1
TO
13 670157050
SLEEVE 		$60.12 1
TO
14 670156654
PIPE BETWEEN SECONDARY RADIATOR AND PUMP 		$54.85 1
TO
15 670157155
RIGID PIPE 		$140.16 1
TO
16 675001063
NUT 		$1.36 1
TO
17 670156652
RIGID PIPE 		$125.92 1
TO
18 670157165
BRACKET ASSEMBLY 		$33.30 1
TO
19 675001070
SCREW 		$1.57 1
TO
20 675000365
SCREWM6X18 		$2.95 1
TO
21 670175631
CLIP 		$3.68 2
TO
22 670308847
SCREW
Bespoke Assembly Number 7003189 - 99999999; 		$2.47 6
TO
23 675001429
WASHER 		$3.06 6
TO
24 675000658
SNAP HOSE CLAMP
IN STOCK 		$6.32 1
IN
