Name: INTAKE MANIFOLD AND THROTTLE BODY
Rating: 4.3 (1 reviews)

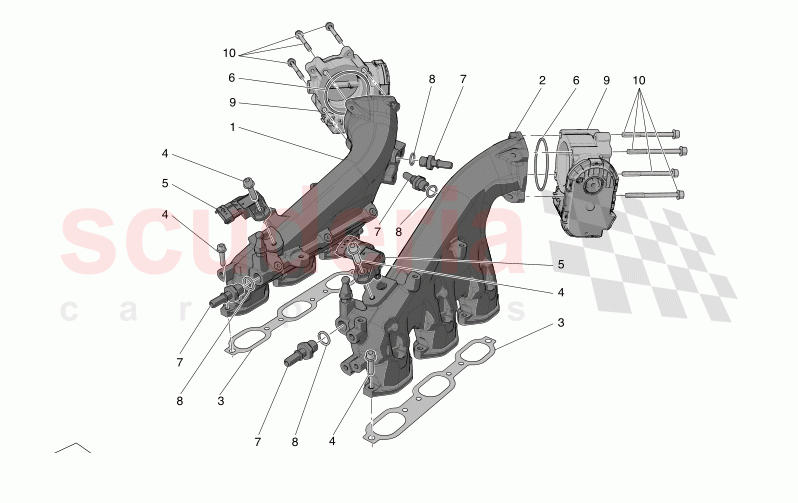

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054056	RH INTAKE MANIFOLD ASSEMBLY	$647.19	To Order

Photo	Part No	Description	Price (each)	Stock
	670054058	LH INTAKE MANIFOLD ASSEMBLY	$647.19	To Order

Photo	Part No	Description	Price (each)	Stock
	670050628	GASKET	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670051109	SCREW	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670053933	PRESSURE SENSOR	$97.62	To Order

Photo	Part No	Description	Price (each)	Stock
	675001414	O.R. GASKET	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	670051436	UNION	$6.40	To Order

Photo	Part No	Description	Price (each)	Stock
	675000670	GASKET	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	670053248	THROTTLE BODY	$579.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670051117	SCREW	$2.68	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	670054056	RH INTAKE MANIFOLD ASSEMBLY	670054056 RH INTAKE MANIFOLD ASSEMBLY Bespoke Assembly Number 7001720 - 99999999;	$647.19	1	TO
2	670054058	LH INTAKE MANIFOLD ASSEMBLY	670054058 LH INTAKE MANIFOLD ASSEMBLY Bespoke Assembly Number 7001720 - 99999999;	$647.19	1	TO
3	670050628	GASKET	670050628 GASKET	$10.73	2	TO
4	670051109	SCREW	670051109 SCREW	$2.28	14	TO
5	670053933	PRESSURE SENSOR	670053933 PRESSURE SENSOR	$97.62	2	TO
6	675001414	O.R. GASKET	675001414 O.R. GASKET	$4.43	2	TO
7	670051436	UNION	670051436 UNION	$6.40	4	TO
8	675000670	GASKET	675000670 GASKET	$2.30	4	TO
9	670053248	THROTTLE BODY	670053248 THROTTLE BODY	$579.28	2	TO
10	670051117	SCREW	670051117 SCREW	$2.68	8	TO

Intake Manifold And Throttle Body

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP
