Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - TURBOCHARGING SYSTEM: LUBRICATION AND COOLING

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053922 OIL RECOVERY PIPE FROM LH TURBINE $109.51 To Order
Photo Part No Description Price (each) Stock
670053472 WATER RETURN PIPE FROM LH TURBINE $227.78 To Order
Photo Part No Description Price (each) Stock
670053469 WATER DELIVERY PIPE TO LH TURBINE $146.74 To Order
Photo Part No Description Price (each) Stock
670053473 OIL DELIVERY PIPE TO LH TURBINE $169.73 To Order
Photo Part No Description Price (each) Stock
670053921 OIL RECOVERY PIPE FROM RH TURBINE $101.72 To Order
Photo Part No Description Price (each) Stock
670053471 WATER RETURN PIPE FROM RH TURBINE $210.24 To Order
Photo Part No Description Price (each) Stock
670053466 WATER DELIVERY PIPE TO RH TURBINE $146.74 To Order
Photo Part No Description Price (each) Stock
670053470 OIL DELIVERY PIPE TO RH TURBINE $174.10 To Order
Photo Part No Description Price (each) Stock
670051105 SCREW $2.68 To Order
Photo Part No Description Price (each) Stock
670054413 GASKET $2.16 To Order
Photo Part No Description Price (each) Stock
670050209 FILLER NECK $5.85 To Order
Photo Part No Description Price (each) Stock
670051106 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670050157 FORK $5.95 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670051109 SCREW $2.28 To Order
Photo Part No Description Price (each) Stock
670054362 BLOCK $53.31 To Order
Photo Part No Description Price (each) Stock
670051111 SCREW $2.28 To Order
Photo Part No Description Price (each) Stock
271457 OIL DRAIN PIPE GASKET $4.01 IN STOCK
Photo Part No Description Price (each) Stock
287722 O-RING 15.08 X 2.62 $2.68 IN STOCK
Photo Part No Description Price (each) Stock
014457081 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
127816 O-RING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
191269 GASKET $3.34 IN STOCK
Photo Part No Description Price (each) Stock
014453181 O.R. GASKET Enquire To Order

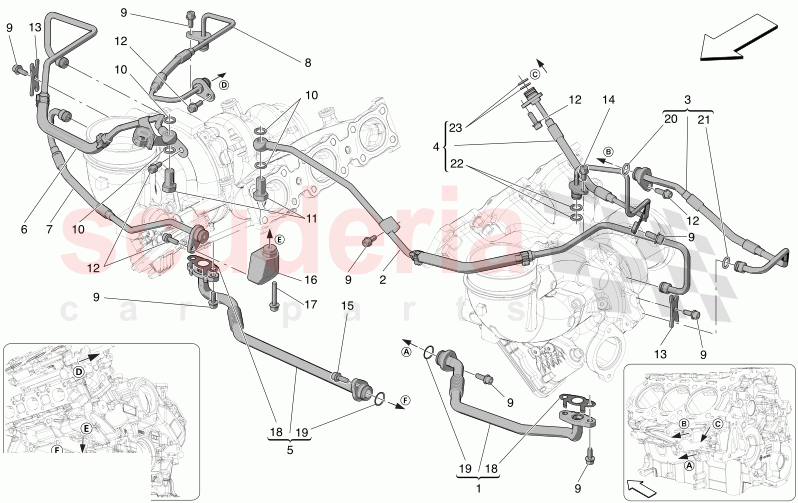

TURBOCHARGING SYSTEM: LUBRICATION AND COOLING of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053922
OIL RECOVERY PIPE FROM LH TURBINE 		$109.51 1
TO
2 670053472
WATER RETURN PIPE FROM LH TURBINE 		$227.78 1
TO
3 670053469
WATER DELIVERY PIPE TO LH TURBINE 		$146.74 1
TO
4 670053473
OIL DELIVERY PIPE TO LH TURBINE 		$169.73 1
TO
5 670053921
OIL RECOVERY PIPE FROM RH TURBINE 		$101.72 1
TO
6 670053471
WATER RETURN PIPE FROM RH TURBINE 		$210.24 1
TO
7 670053466
WATER DELIVERY PIPE TO RH TURBINE 		$146.74 1
TO
8 670053470
OIL DELIVERY PIPE TO RH TURBINE 		$174.10 1
TO
9 670051105
SCREW 		$2.68 10
TO
10 670054413
GASKET 		$2.16 4
TO
11 670050209
FILLER NECK 		$5.85 2
TO
12 670051106
SCREW 		$2.47 5
TO
13 670050157
FORK 		$5.95 2
TO
14 670051104
SCREW 		$2.47 1
TO
15 670051109
SCREW 		$2.28 1
TO
16 670054362
BLOCK
Bespoke Assembly Number 7001240 - 99999999; 		$53.31 1
TO
17 670051111
SCREW 		$2.28 1
TO
18 271457
OIL DRAIN PIPE GASKET
IN STOCK 		$4.01 2
IN
19 287722
O-RING 15.08 X 2.62
IN STOCK 		$2.68 2
IN
20 014457081
O.R. GASKET 		- 1
PE
 Enquire
21 127816
O-RING
IN STOCK 		$2.68 1
IN
22 191269
GASKET
IN STOCK 		$3.34 2
IN
23 014453181
O.R. GASKET 		- 2
PE
 Enquire
