Name: SOUND-PROOFING PANELS INSIDE THE VEHICLE
Rating: 4.6 (1 reviews)

SOUND-PROOFING PANELS INSIDE THE VEHICLE of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

View All

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - SOUND-PROOFING PANELS INSIDE THE VEHICLE (09621)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670182441	DASHBOARD FRONT SOUNDPROOFING PANEL	$215.43	To Order

Photo	Part No	Description	Price (each)	Stock
	670158096	ENGINE COMPARTMENT INSULATION	$51.42	To Order

Photo	Part No	Description	Price (each)	Stock
	670158049	LOWER WINDSCREEN SOUNDPROOFING UNIT	$87.74	To Order

Photo	Part No	Description	Price (each)	Stock
	670158099	LOWER RH ENGINE COMPARTMENT INSULATION	$29.41	To Order

Photo	Part No	Description	Price (each)	Stock
	670158100	LOWER LH ENGINE COMPARTMENT INSULATION	$29.41	To Order

Photo	Part No	Description	Price (each)	Stock
	670157929	RH INSULATION	$22.62	To Order

Photo	Part No	Description	Price (each)	Stock
	670157933	LH INSULATION	$22.62	To Order

Photo	Part No	Description	Price (each)	Stock
	670158098	TUNNEL EXTERNAL SOUNDPROOFING GUARD	$59.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001721	INSULATION	$18.46	To Order

Photo	Part No	Description	Price (each)	Stock
	675001720	TUNNEL CENTRAL INSULATION	$23.10	To Order

Photo	Part No	Description	Price (each)	Stock
	670181824	TUNNEL REAR INSULATION	$29.41	To Order

Photo	Part No	Description	Price (each)	Stock
	670158054	RH TRUNK COMPARTMENT INSULATION	$34.04	To Order

Photo	Part No	Description	Price (each)	Stock
	670158056	LH TRUNK COMPARTMENT INSULATION	$36.65	To Order

Photo	Part No	Description	Price (each)	Stock
	670157928	TRUNK COMPARTMENT INSULATION	$48.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675001689	BUTTON	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	675001760	PLUG	$46.08	To Order

Photo	Part No	Description	Price (each)	Stock
	675001763	PLUG	$46.08	To Order

Photo	Part No	Description	Price (each)	Stock
	675000684	FASTENER BUTTON	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	675000411	WASHER	$4.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670013670	FASTENER BUTTON6,5X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001607	CAP ON REAR CROSSBEAM CASING	$22.90	To Order

Photo	Part No	Description	Price (each)	Stock
	675001710	CAP ON REAR CROSSBEAM CASING	$17.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670158048	INSULATION UNDER REAR SEAT	$95.23	To Order

Photo	Part No	Description	Price (each)	Stock
	675002264	PLUG	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	675001644	FASTENER BUTTON	$2.60	To Order

View All

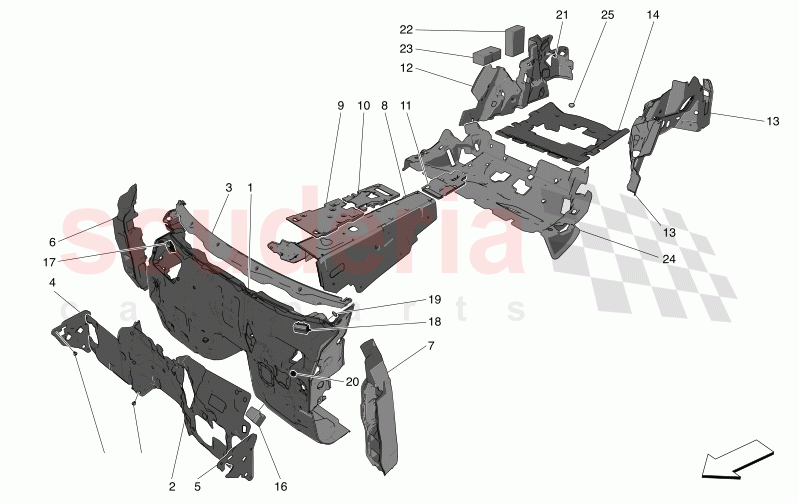

Diagram Tap to enlarge

Sound-Proofing Panels Inside The Vehicle

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 09621

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - SOUND-PROOFING PANELS INSIDE THE VEHICLE (09621)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670182441	DASHBOARD FRONT SOUNDPROOFING PANEL	670182441 DASHBOARD FRONT SOUNDPROOFING PANEL EU CN US JP ME KO N0;	$215.43	1
2	670158096	ENGINE COMPARTMENT INSULATION	670158096 ENGINE COMPARTMENT INSULATION EU CN US JP ME KO N0;	$51.42	1
3	670158049	LOWER WINDSCREEN SOUNDPROOFING UNIT	670158049 LOWER WINDSCREEN SOUNDPROOFING UNIT	$87.74	1
4	670158099	LOWER RH ENGINE COMPARTMENT INSULATION	670158099 LOWER RH ENGINE COMPARTMENT INSULATION	$29.41	1
5	670158100	LOWER LH ENGINE COMPARTMENT INSULATION	670158100 LOWER LH ENGINE COMPARTMENT INSULATION	$29.41	1
6	670157929	RH INSULATION	670157929 RH INSULATION	$22.62	1
7	670157933	LH INSULATION	670157933 LH INSULATION	$22.62	1
8	670158098	TUNNEL EXTERNAL SOUNDPROOFING GUARD	670158098 TUNNEL EXTERNAL SOUNDPROOFING GUARD	$59.63	1
9	675001721	INSULATION	675001721 INSULATION	$18.46	1
10	675001720	TUNNEL CENTRAL INSULATION	675001720 TUNNEL CENTRAL INSULATION	$23.10	1
11	670181824	TUNNEL REAR INSULATION	670181824 TUNNEL REAR INSULATION	$29.41	1
12	670158054	RH TRUNK COMPARTMENT INSULATION	670158054 RH TRUNK COMPARTMENT INSULATION	$34.04	1
13	670158056	LH TRUNK COMPARTMENT INSULATION	670158056 LH TRUNK COMPARTMENT INSULATION	$36.65	1
14	670157928	TRUNK COMPARTMENT INSULATION	670157928 TRUNK COMPARTMENT INSULATION	$48.45	1
15	675001689	BUTTON	675001689 BUTTON	$2.33	1
17	675001760	PLUG	675001760 PLUG	$46.08	1
18	675001763	PLUG	675001763 PLUG	$46.08	1
19	675000684	FASTENER BUTTON	675000684 FASTENER BUTTON	$1.92	14
20	675000411	WASHER IN STOCK	675000411 WASHER IN STOCK	$4.08	15
21	670013670	FASTENER BUTTON6,5X18	670013670 FASTENER BUTTON6,5X18	-	5	Enquire
22	675001607	CAP ON REAR CROSSBEAM CASING	675001607 CAP ON REAR CROSSBEAM CASING	$22.90	2
23	675001710	CAP ON REAR CROSSBEAM CASING	675001710 CAP ON REAR CROSSBEAM CASING	$17.35	2
24	670158048	INSULATION UNDER REAR SEAT	670158048 INSULATION UNDER REAR SEAT	$95.23	1
25	675002264	PLUG	675002264 PLUG	$1.33	1
26	675001644	FASTENER BUTTON	675001644 FASTENER BUTTON EU CN US JP ME KO N0;	$2.60	6
