Rear Seats: Mechanics And Electronics

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - REAR SEATS: MECHANICS AND ELECTRONICS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670172675 RH REAR SEAT CUSHION FRAME ASS. Enquire To Order
Photo Part No Description Price (each) Stock
670172677 CENTRAL REAR SEAT STRUCTURE $151.17 To Order
Photo Part No Description Price (each) Stock
670172676 LH REAR SEAT CUSHION FRAME ASS. Enquire To Order
Photo Part No Description Price (each) Stock
673011653 ARM-REST SMALL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
673011651 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
673011652 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670157666 LH REAR BACKREST LOCK $174.89 To Order
670157664 RH REAR BACKREST LOCK $183.33 To Order
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $1.53 To Order
Photo Part No Description Price (each) Stock
670213208 LH HINGE Enquire To Order
Photo Part No Description Price (each) Stock
670213207 RH HINGE Enquire To Order
Photo Part No Description Price (each) Stock
675002171 SCREW $1.39 To Order
Photo Part No Description Price (each) Stock
670157672 BRACKET $29.30 To Order
Photo Part No Description Price (each) Stock
670157673 CROSS MEMBER $122.59 To Order
Photo Part No Description Price (each) Stock
670219238 STUD $2.74 To Order
Photo Part No Description Price (each) Stock
673011654 LOCK SUBSTRY Enquire To Order
Photo Part No Description Price (each) Stock
673011655 LOCK PLATE Enquire To Order
Photo Part No Description Price (each) Stock
673011649 RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
673011650 REAR SEAT BACK HEATER $67.01 To Order
Photo Part No Description Price (each) Stock
673011681 REAR CUSHION HEATER $17.53 To Order
Photo Part No Description Price (each) Stock
673011674 NUT Enquire To Order
Photo Part No Description Price (each) Stock
673011675 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673011676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673011678 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670219237 NUT $2.74 To Order

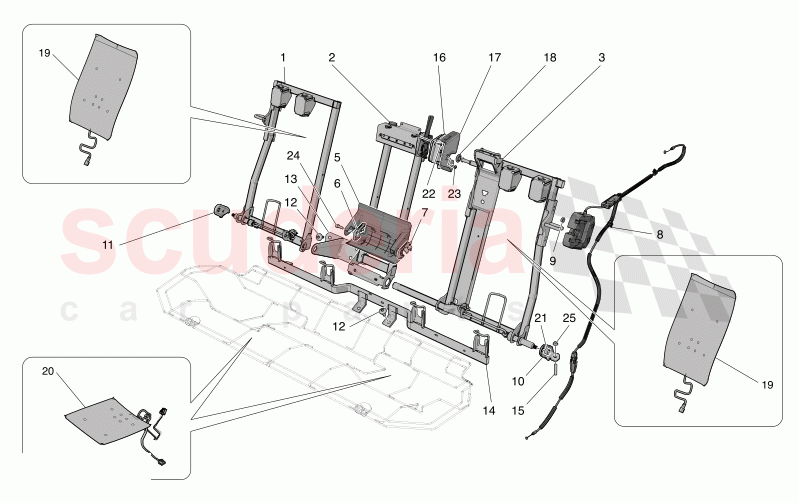

REAR SEATS: MECHANICS AND ELECTRONICS of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670172675
RH REAR SEAT CUSHION FRAME ASS. 		- 1
PE
 Enquire
2 670172677
CENTRAL REAR SEAT STRUCTURE 		$151.17 1
TO
3 670172676
LH REAR SEAT CUSHION FRAME ASS. 		- 1
PE
 Enquire
5 673011653
ARM-REST SMALL PLATE 		- 1
PE
 Enquire
6 673011651
RH BRACKET 		- 1
PE
 Enquire
7 673011652
LH BRACKET 		- 1
PE
 Enquire
8 670157666
LH REAR BACKREST LOCK 		$174.89 1
TO
8 670157664
RH REAR BACKREST LOCK 		$183.33 1
TO
9 14059311
FLANGED NUT M8 X 1.25 		$1.53 4
TO
10 670213208
LH HINGE 		- 1
PE
 Enquire
11 670213207
RH HINGE 		- 1
PE
 Enquire
12 675002171
SCREW 		$1.39 10
TO
13 670157672
BRACKET 		$29.30 1
TO
14 670157673
CROSS MEMBER 		$122.59 1
TO
15 670219238
STUD 		$2.74 2
TO
16 673011654
LOCK SUBSTRY 		- 1
PE
 Enquire
17 673011655
LOCK PLATE 		- 1
PE
 Enquire
18 673011649
RUBBER 		- 1
PE
 Enquire
19 673011650
REAR SEAT BACK HEATER 		$67.01 2
TO
20 673011681
REAR CUSHION HEATER 		$17.53 2
TO
21 673011674
NUT 		- 2
PE
 Enquire
22 673011675
SCREW 		- 3
PE
 Enquire
23 673011676
SCREW 		- 1
PE
 Enquire
24 673011678
SCREW 		- 1
PE
 Enquire
25 670219237
NUT 		$2.74 2
TO
