Central Structural Frames And Sheet Panels

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - CENTRAL STRUCTURAL FRAMES AND SHEET PANELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673014149 CENTRAL FLOOR ASSEMBLY $2,544.80 To Order
Photo Part No Description Price (each) Stock
675001860 COVER $8.99 To Order
Photo Part No Description Price (each) Stock
675000375 SCREWM6X20 $0.83 IN STOCK
Photo Part No Description Price (each) Stock
673014252 RH UNDERFLOOR LOWER SPAR $19.59 To Order
Photo Part No Description Price (each) Stock
673014253 LH UNDERFLOOR LOWER SPAR $15.76 To Order
Photo Part No Description Price (each) Stock
675001929 RIVET $1.63 To Order
Photo Part No Description Price (each) Stock
670162040 TUNNEL CONNECTION BRACKET $97.10 To Order
Photo Part No Description Price (each) Stock
675002154 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
675002179 SEAT SUPPORT BASE $119.33 To Order
Photo Part No Description Price (each) Stock
675000481 SCREWTE M10 $3.95 To Order

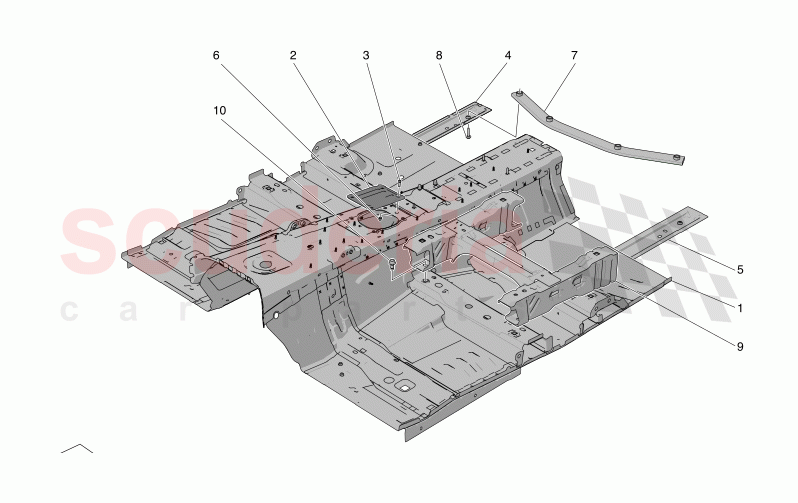

CENTRAL STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673014149
CENTRAL FLOOR ASSEMBLY 		$2,544.80 1
TO
2 675001860
COVER 		$8.99 1
TO
3 675000375
SCREWM6X20
IN STOCK 		$0.83 4
IN
4 673014252
RH UNDERFLOOR LOWER SPAR 		$19.59 1
TO
5 673014253
LH UNDERFLOOR LOWER SPAR 		$15.76 1
TO
6 675001929
RIVET 		$1.63 4
TO
7 670162040
TUNNEL CONNECTION BRACKET 		$97.10 1
TO
8 675002154
SCREW 		$1.30 4
TO
9 675002179
SEAT SUPPORT BASE 		$119.33 2
TO
10 675000481
SCREWTE M10 		$3.95 4
TO
