Radiator Fan

Lamborghini Urus (2018-2019)

Find Your Part

Lamborghini Urus (2018-2019) - RADIATOR FAN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

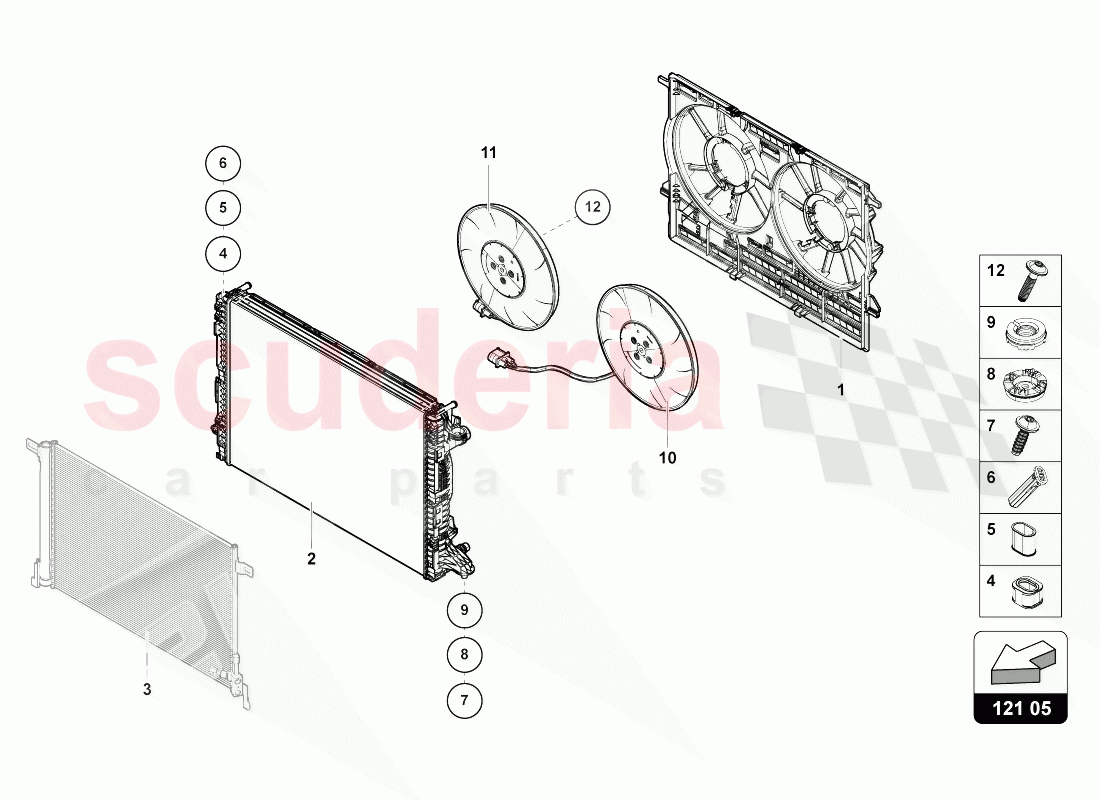

RADIATOR FAN of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0121207A
TWIN FAN RING
WITHOUT ADDITIONAL FRONT UNDERBODY GUARD-800W
IN STOCK 		$274.06 1
IN
1 4M0121207
TWIN FAN RING
ADDITIONAL FRONT UNDERBODY GUARD
IN STOCK 		$265.91 1
IN
2 4M0121251M
COOLER FOR COOLANT 		$548.13 2
TO
3 A/C CONDENSER WITH DRYER
SEE ILLUSTRATION :- 260-020 		- -
PE
 Enquire
4 7P0121276
GROMMET
UPPER 		$4.73 2
TO
5 7P0121365
SLEEVE
UPPER 		$7.30 2
TO
6 4M0121095
SECURING PIN
IN STOCK 		$2.31 2
IN
7 8K0805399B
HEXAGON SOCKET HEAD PANEL BOLT
7X22
IN STOCK 		$3.37 2
IN
8 4M0121268A
RUBBER BUSH
LOWER 		$9.54 2
TO
9 4M0121275A
RUBBER BUSH
LOWER 		$6.77 2
TO
10 8W0959455K
RADIATOR FAN WITH CONTROL UNIT
WITHOUT ADDITIONAL FRONT UNDERBODY GUARD-400W 370MM LEFT 		$788.13 1
TO
10 8W0959455AA
RADIATOR FAN WITH CONTROL UNIT
ADDITIONAL FRONT UNDERBODY GUARD-600W 390MM LEFT 		$1,112.56 1
TO
11 8W0959455L
RADIATOR FAN WITH CONTROL UNIT
WITHOUT ADDITIONAL FRONT UNDERBODY GUARD-400W 370MM RIGHT 		$788.13 1
TO
11 8W0959455N
RADIATOR FAN WITH CONTROL UNIT
ADDITIONAL FRONT UNDERBODY GUARD-600W 390MM RIGHT 		$989.10 1
TO
12 WHT007235
HEXAGON SOCKET FLAT HEAD BOLT
5X19 		$3.96 8
TO
13 4ML121557
PROTECTION 		$59.31 -
TO
14 8K0867646
CLIP 		$3.37 -
TO
