Name: CHARGE AIR COOLER
Rating: 4.6 (1 reviews)

Diagram
INFO

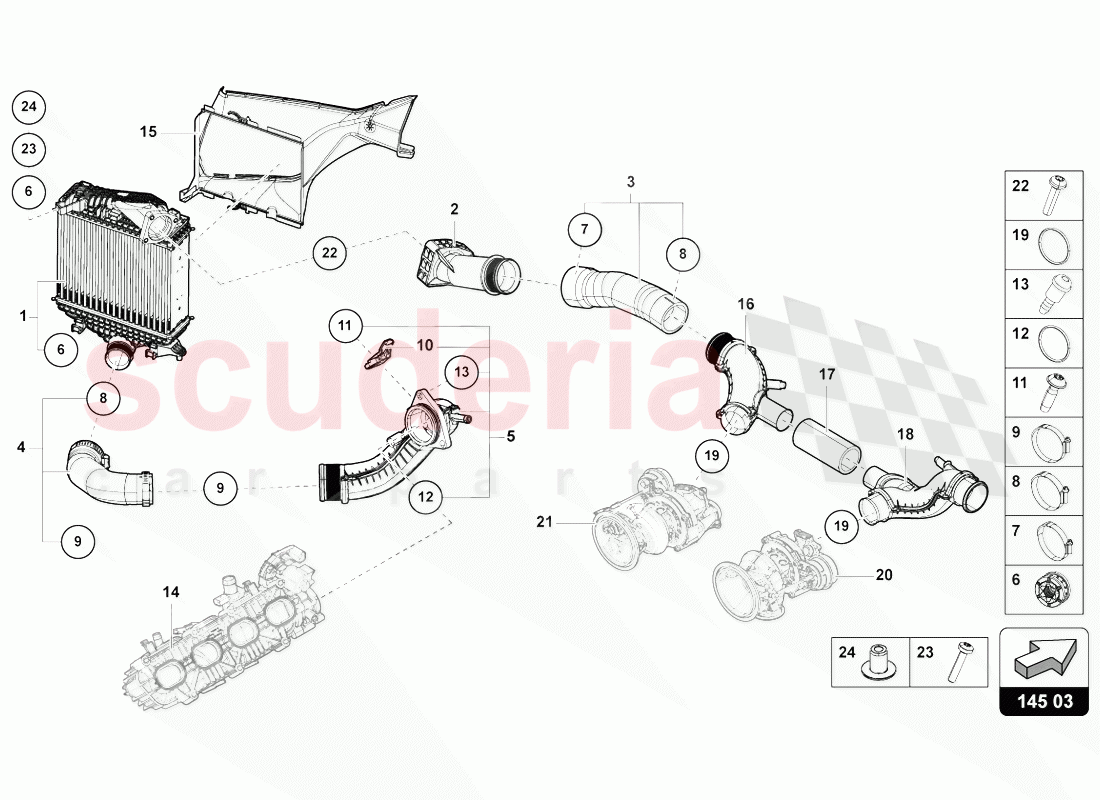

CHARGE AIR COOLER of Lamborghini Lamborghini Urus (2018-2019)

Lamborghini Urus (2018-2019) - CHARGE AIR COOLER

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0145803BT	CHARGE AIR COOLER	$683.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0145955G	PRESSURE HOSE	$42.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0145979F	PRESSURE HOSE	$128.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0145737AD	PRESSURE HOSE	$77.51	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2145681F	CHARGE AIR TUBE	$90.65	To Order
	0P2145681C	CHARGE AIR TUBE	$137.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0145824A	GROMMET	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10619901	HOSE CLAMP	$10.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N10619801	HOSE CLAMP	$10.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N10518901	HOSE CLAMP	$10.66	To Order

Photo	Part No	Description	Price (each)	Stock
	06E906051AB	PRESSURE SENSOR	$107.71	To Order

Photo	Part No	Description	Price (each)	Stock
	N10473402	ROUND HD. SCREW	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91019101	O-RING	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2145453A	RETAINING CLIP	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML121333B	AIR GUIDE	$206.88	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2145673C	CHARGE AIR TUBE	$95.35	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2145405A	PRESSURE HOSE	$50.37	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2145674C	CHARGE AIR TUBE	$98.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N90344501	O-RING	$5.07	To Order

Photo	Part No	Description	Price (each)	Stock
		EXHAUST GAS TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		EXHAUST GAS TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	$0.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91199401	FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD	$0.73	IN STOCK
	N10156205	OVAL HEXAGON SOCKET HEAD BOLT	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H0145219	BUSH	$7.88	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	4M0145803BT	CHARGE AIR COOLER IN STOCK	4M0145803BT CHARGE AIR COOLER SIDE, LEFT IN STOCK	$683.81	1	IN
	2	4M0145955G	PRESSURE HOSE	4M0145955G PRESSURE HOSE LEFT UPPER	$42.69	1	TO
	3	4M0145979F	PRESSURE HOSE	4M0145979F PRESSURE HOSE LEFT UPPER	$128.06	1	TO
	4	4M0145737AD	PRESSURE HOSE	4M0145737AD PRESSURE HOSE LEFT LOWER	$77.51	1	TO
	5	0P2145681F	CHARGE AIR TUBE	0P2145681F CHARGE AIR TUBE FROM VIN ZPBEA1ZL6KLA 03453-LEFT LOWER	$90.65	-	TO
	5	0P2145681C	CHARGE AIR TUBE	0P2145681C CHARGE AIR TUBE UNTIL VIN ZPBEA1ZL9KLA 03446-LEFT LOWER	$137.28	1	TO
	6	4N0145824A	GROMMET IN STOCK	4N0145824A GROMMET IN STOCK	$2.89	2	IN
	7	N10619901	HOSE CLAMP	N10619901 HOSE CLAMP 55-75X12	$10.51	1	TO
	8	N10619801	HOSE CLAMP	N10619801 HOSE CLAMP 45-65X12	$10.66	-	TO
	9	N10518901	HOSE CLAMP	N10518901 HOSE CLAMP 50-70X12	$10.66	1	TO
	10	06E906051AB	PRESSURE SENSOR	06E906051AB PRESSURE SENSOR	$107.71	2	TO
	11	N10473402	ROUND HD. SCREW IN STOCK	N10473402 ROUND HD. SCREW M6X20 IN STOCK	$1.02	1	IN
	12	N91019101	O-RING	N91019101 O-RING 50X3	$6.62	-	TO
	13	0P2145453A	RETAINING CLIP IN STOCK	0P2145453A RETAINING CLIP IN STOCK	$2.89	-	IN
			INTAKE MANIFOLD	-
14 INTAKE MANIFOLD - - PE Enquire 20 EXHAUST GAS TURBOCHARGER - - PE Enquire 21 EXHAUST GAS TURBOCHARGER - - PE Enquire
	15	4ML121333B	AIR GUIDE	4ML121333B AIR GUIDE CENTER	$206.88	1	TO
	16	0P2145673C	CHARGE AIR TUBE	0P2145673C CHARGE AIR TUBE LEFT UPPER	$95.35	1	TO
	17	0P2145405A	PRESSURE HOSE	0P2145405A PRESSURE HOSE UPPER CENTRE	$50.37	1	TO
	18	0P2145674C	CHARGE AIR TUBE	0P2145674C CHARGE AIR TUBE RIGHT UPPER	$98.66	1	TO
	19	N90344501	O-RING	N90344501 O-RING 45X3	$5.07	2	TO
	22	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT M6X25 IN STOCK	$0.83 MSRP: ~~7.21~~ (88.5% off)	3	IN
	23	N91199401	FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD IN STOCK	N91199401 FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD M6X32 IN STOCK	$0.73	2	IN
	23	N10156205	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156205 OVAL HEXAGON SOCKET HEAD BOLT M6X30 IN STOCK	$1.70	1	IN
	24	4H0145219	BUSH IN STOCK	4H0145219 BUSH IN STOCK	$7.88	2	IN

Charge Air Cooler

Lamborghini Urus (2018-2019)

Lamborghini Urus (2018-2019) - CHARGE AIR COOLER
