Name: Fuel pump Fuel line Fuel rail Injection valve
Rating: 4.3 (1 reviews)

Diagram
INFO

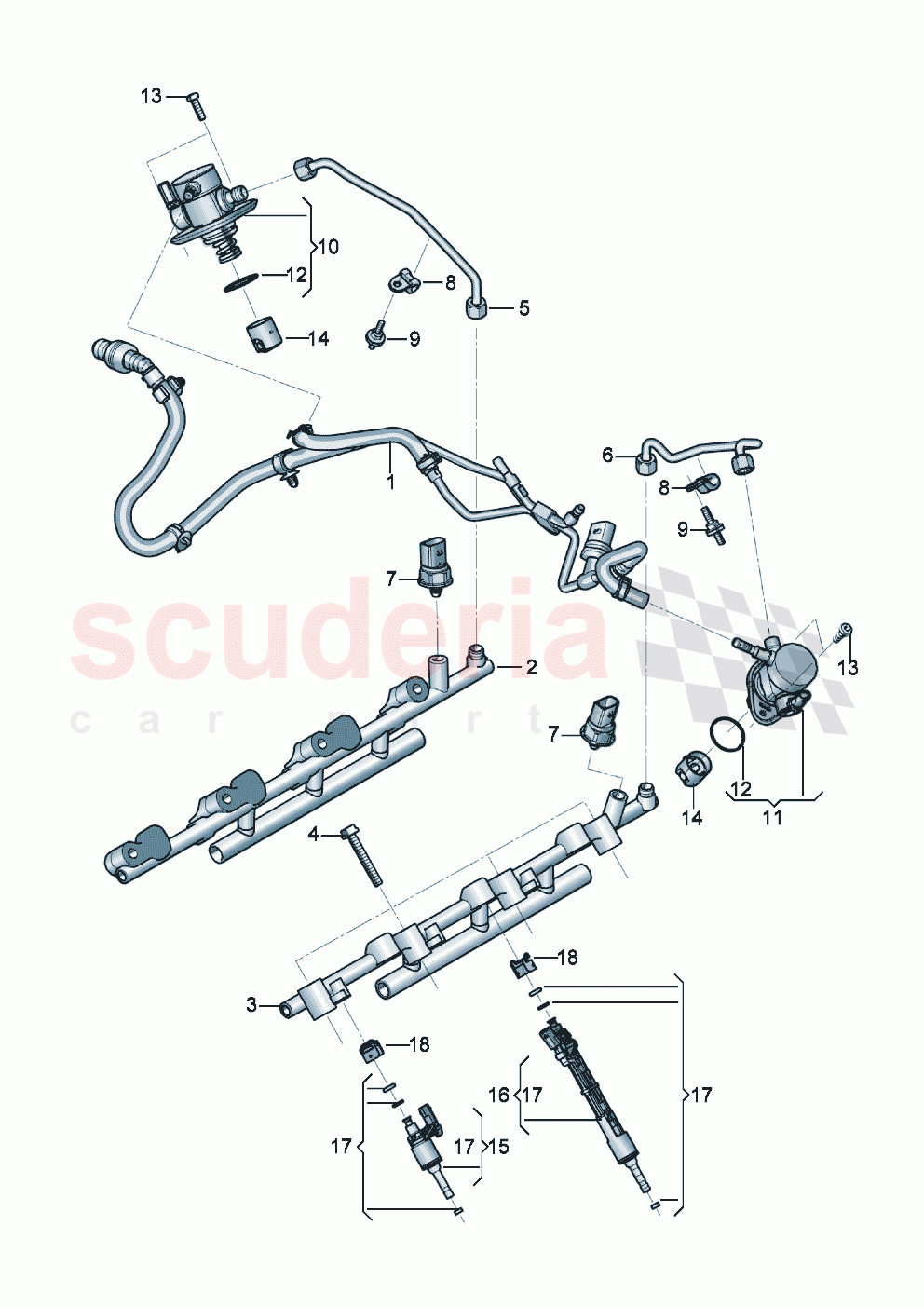

Fuel pump Fuel line Fuel rail Injection valve of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - Fuel pump Fuel line Fuel rail Injection valve

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	06M133316L	Fuel rail	$223.80	To Order
	0P2133316A	Fuel rail	$314.11	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 133 316 D	Fuel rail also use:	$2,736.80	To Order
	06M133315L	Fuel rail	$223.80	To Order
	0P2133315A	Fuel rail	$314.11	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 133 316 E	Fuel rail also use:	$2,569.91	To Order
	06L906054E	Pressure sensor	$88.03	To Order
	06L906054E	Pressure sensor	$88.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 418 01	Socket head bolt with inner multipoint head	$5.20	To Order
	06E127065N	Adapter	$11.92	To Order
	N91126601	Oval hexagon socket head bolt	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 133 321 K	Fuel line	$233.61	To Order
	N 104 514 08	Oval hexagon socket head bolt	$1.18	To Order
	06M906036AD	Injection valve D >> - 07.02.2022	$178.64	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	07P 133 321 L	Fuel line	$233.61	To Order
	06M906036AQ	Injection valve D - 07.02.2022>>	$178.64	To Order
	0P2133875J	Noise insulation	$43.17	To Order

Photo	Part No	Description	Price (each)	Stock
	6K906051C	Pressure sensor D - 12.08.2020>>	$88.03	To Order
	6K906051C	Pressure sensor D - 12.08.2020>>	$88.03	To Order
	04E998907A	repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021	$21.30	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90754202	Clamp	$2.06	To Order
	06M127507AB	Fuel line	$117.78	To Order
	06M906189A	Support element	$7.05	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 750 01	double collared stud	$24.48	To Order
	N90754202	Clamp	$2.06	To Order
	04E998907A	repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021	$21.30	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	07P 127 025 K	high pressure pump also use:	$989.48	To Order
	06M127411A	Retainer for fuel line	$17.88	To Order
	0P2127507C	Fuel line	$120.91	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 127 025 L	high pressure pump also use:	$895.23	To Order
	N 104 514 08	Oval hexagon socket head bolt	$1.18	To Order
	0P2127507B	Fuel line	$110.11	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 008 259	O-ring	$6.08	To Order
	06M127507AC	Fuel line	$125.13	To Order
	N10335206	Hexagon socket flat head bolt	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 002 01	Hexagon socket head bolt	$1.77	IN STOCK
	N10335206	Hexagon socket flat head bolt	$1.77	To Order
	0P2127026A	high pressure pump additionally to be used items: D - 20.08.2019>>	$638.05	To Order

Photo	Part No	Description	Price (each)	Stock
	06L 109 311	Tappets	$65.91	To Order
	WHT007821	O-ring	$40.03	To Order

Photo	Part No	Description	Price (each)	Stock
	07P906036P	Injection valve D - 02.07.2018>>	$439.76	To Order
	06M127026P	Fuel pump	$701.86	To Order
	06L 109 311	Tappets	$65.91	To Order

Photo	Part No	Description	Price (each)	Stock
	07P906036Q	Injection valve D - 02.07.2018>>	$324.05	IN STOCK
	WHT 005 184	O-ring	$10.41	To Order
	N10458202	Hexagon bolt	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	04E998907A	repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021	$21.30	To Order
	06M998907	repair kit for valve unit only for: D - 06.12.2021>>	$21.30	To Order
	N91084201	Socket head bolt with inner multipoint head (Kombi)	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	04E 133 036 A	Support element	$2.19	To Order
	06M109311B	Tappets	$65.15	To Order
	00004320935	special lubricant	$219.86	To Order

Photo	Part No	Description	Price (each)	Stock
	N91044802	double stud with hexagon drive	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	06M133036C	Support element	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	06M906189A	Support element	$7.05	To Order

Photo	Part No	Description	Price (each)	Stock
	06M133875AP	Noise insulation	$43.17	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	06M133316L	Fuel rail	06M133316L Fuel rail right	$223.80	1	TO
	1	0P2133316A	Fuel rail	0P2133316A Fuel rail Cylinders 1-4	$314.11	1	TO
	2	07P 133 316 D	Fuel rail also use:	07P 133 316 D Fuel rail also use: Cylinder 1-6 5	$2,736.80	1	TO
	2	06M133315L	Fuel rail	06M133315L Fuel rail left	$223.80	1	TO
	2	0P2133315A	Fuel rail	0P2133315A Fuel rail Cylinder 5-8	$314.11	1	TO
	3	07P 133 316 E	Fuel rail also use:	07P 133 316 E Fuel rail also use: cylinders 7-12 6	$2,569.91	1	TO
	06L906054E		PRESSURE SENSOR	from $88.03
3 Pressure sensor $88.03 1 TO 3 Pressure sensor $88.03 2 TO
	4	N 107 418 01	Socket head bolt with inner multipoint head	N 107 418 01 Socket head bolt with inner multipoint head M8X55	$5.20	8	TO
	4	06E127065N	Adapter	06E127065N Adapter M14/SW19	$11.92	2	TO
	4	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	$0.88	20	TO
	5	07P 133 321 K	Fuel line	07P 133 321 K Fuel line Cylinder 1-6	$233.61	1	TO
	N 104 514 08		OVAL HEXAGON SOCKET HEAD BOLT	from $1.18
5 Oval hexagon socket head bolt $1.18 16 TO 11 Oval hexagon socket head bolt $1.18 4 TO
	5	06M906036AD	Injection valve D >> - 07.02.2022	06M906036AD Injection valve D >> - 07.02.2022	$178.64	8	TO
	06M906036AQ		INJECTION VALVE D - 07.02.2022>>	from $178.64
5 Injection valve D - 07.02.2022>> $178.64 8 TO 6 Injection valve D - 07.02.2022>> $178.64 6 TO
	6	07P 133 321 L	Fuel line	07P 133 321 L Fuel line cylinders 7-12	$233.61	1	TO
	6	0P2133875J	Noise insulation	0P2133875J Noise insulation	$43.17	8	TO
	6K906051C		PRESSURE SENSOR D - 12.08.2020>>	from $88.03
7 Pressure sensor D - 12.08.2020>> $88.03 2 TO 7 Pressure sensor D - 12.08.2020>> $88.03 2 TO
	04E998907A		REPAIR KIT FOR VALVE UNIT ONLY FOR: D - 02.07.2018>> - 06.12.2021	from $21.30
7 repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021 $21.30 6 TO 9 repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021 $21.30 8 TO 17 repair kit for valve unit only for: D - 02.07.2018>> - 06.12.2021 $21.30 12 TO
	06M998907		REPAIR KIT FOR VALVE UNIT ONLY FOR: D - 06.12.2021>>	from $21.30
7 repair kit for valve unit only for: D - 06.12.2021>> $21.30 6 TO 9 repair kit for valve unit only for: D - 06.12.2021>> $21.30 8 TO 17 repair kit for valve unit only for: D - 06.12.2021>> $21.30 12 TO
	06M133036C		SUPPORT ELEMENT	from $3.28
7 Support element $3.28 8 TO 20 Support element $3.28 6 TO
	N90754202		CLAMP	from $2.06
8 Clamp $2.06 4 TO 9 Clamp $2.06 4 TO
	8	06M127507AB	Fuel line	06M127507AB Fuel line	$117.78	1	TO
	06M906189A		SUPPORT ELEMENT	from $7.05
8 Support element $7.05 8 TO 21 Support element $7.05 6 TO
	9	N 911 750 01	double collared stud	N 911 750 01 double collared stud M6X16-M6X16	$24.48	2	TO
	10	07P 127 025 K	high pressure pump also use:	07P 127 025 K high pressure pump also use: Cylinder 1-6 5	$989.48	1	TO
	10	06M127411A	Retainer for fuel line	06M127411A Retainer for fuel line 6MM,8MM	$17.88	1	TO
	10	0P2127507C	Fuel line	0P2127507C Fuel line Cylinders 1-4	$120.91	1	TO
	11	07P 127 025 L	high pressure pump also use:	07P 127 025 L high pressure pump also use: cylinders 7-12 6	$895.23	1	TO
	11	0P2127507B	Fuel line	0P2127507B Fuel line Cylinder 5-8	$110.11	1	TO
	12	WHT 008 259	O-ring	WHT 008 259 O-ring 31,47X1,78	$6.08	2	TO
	12	06M127507AC	Fuel line	06M127507AC Fuel line	$125.13	1	TO
	N10335206		HEXAGON SOCKET FLAT HEAD BOLT	from $1.77
12 Hexagon socket flat head bolt $1.77 2 TO 13 Hexagon socket flat head bolt $1.77 1 TO
	13	N 107 002 01	Hexagon socket head bolt IN STOCK	N 107 002 01 Hexagon socket head bolt M6X22 IN STOCK	$1.77	2	IN
	13	0P2127026A	high pressure pump additionally to be used items: D - 20.08.2019>>	0P2127026A high pressure pump additionally to be used items: D - 20.08.2019>> 15	$638.05	2	TO
	06L 109 311		TAPPETS	from $65.91
14 Tappets $65.91 2 TO 15 Tappets $65.91 2 TO
	14	WHT007821	O-ring	WHT007821 O-ring 31X2	$40.03	2	TO
	15	07P906036P	Injection valve D - 02.07.2018>>	07P906036P Injection valve D - 02.07.2018>> Cylinders 2,4, 6,7,9,11	$439.76	6	TO
	15	06M127026P	Fuel pump	06M127026P Fuel pump HITACHI	$701.86	1	TO
	16	07P906036Q	Injection valve D - 02.07.2018>> IN STOCK	07P906036Q Injection valve D - 02.07.2018>> Cylinders 1,3, 5,8,10,12 IN STOCK	$324.05	6	IN
	16	WHT 005 184	O-ring	WHT 005 184 O-ring 31X2	$10.41	1	TO
	16	N10458202	Hexagon bolt	N10458202 Hexagon bolt M6X22	$1.04	4	TO
	17	N91084201	Socket head bolt with inner multipoint head (Kombi)	N91084201 Socket head bolt with inner multipoint head (Kombi) M8X25	$2.25	2	TO
	18	04E 133 036 A	Support element	04E 133 036 A Support element	$2.19	12	TO
	18	06M109311B	Tappets	06M109311B Tappets	$65.15	1	TO
	18	00004320935	special lubricant	00004320935 special lubricant 400ml MICROGLEIT DF 977S	$219.86	1	TO
	19	N91044802	double stud with hexagon drive	N91044802 double stud with hexagon drive M6X14/M6X14	$1.97	1	TO
	22	06M133875AP	Noise insulation	06M133875AP Noise insulation	$43.17	6	TO
